This class constructs a TimedAutomataSystem. More...

#include <systembuilder.h>

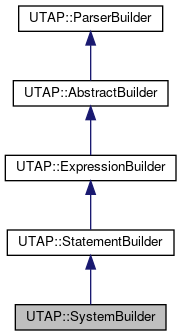

Inheritance diagram for UTAP::SystemBuilder:

[legend]

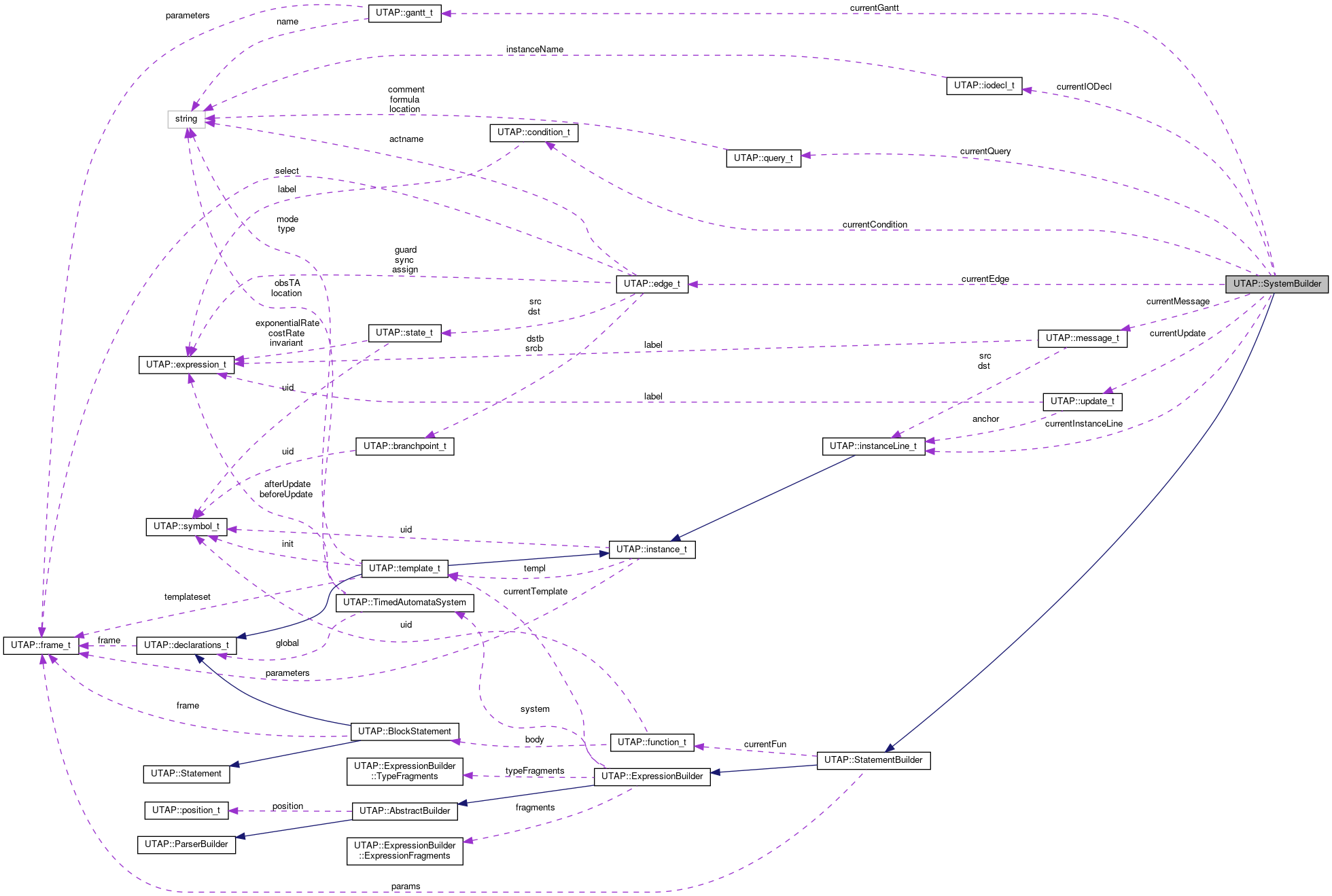

Collaboration diagram for UTAP::SystemBuilder:

[legend]

Public Member Functions
	SystemBuilder (TimedAutomataSystem *)

void	ganttDeclStart (const char *name) override

void	ganttDeclSelect (const char *id) override

void	ganttDeclEnd () override

void	ganttEntryStart () override

void	ganttEntrySelect (const char *id) override

void	ganttEntryEnd () override

void	declProgress (bool) override
	Guard progress measure declaration. More...

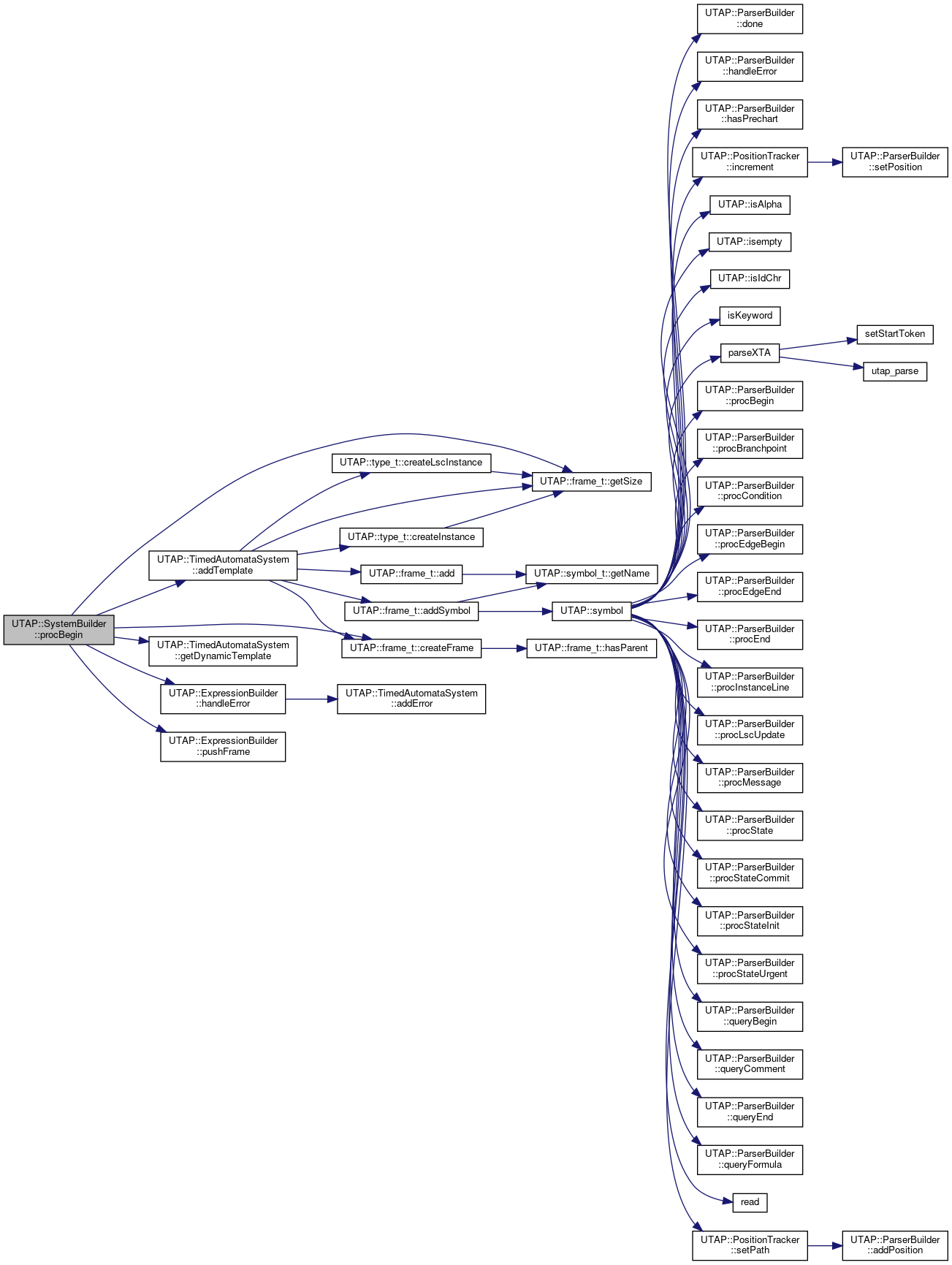

void	procBegin (const char *name, const bool isTA=true, const std::string type="", const std::string mode="") override

void	procEnd () override

void	procState (const char *name, bool hasInvariant, bool hasER) override
	Add a state to the current template. More...

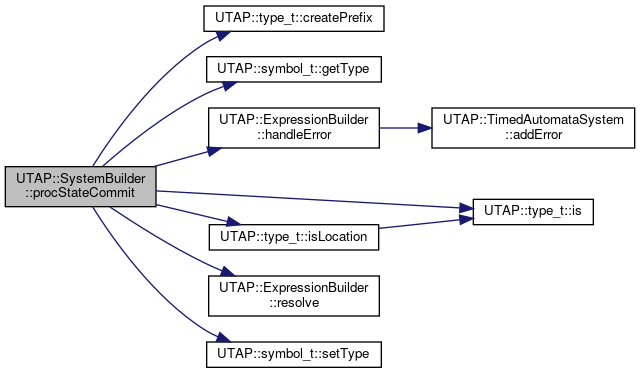

void	procStateCommit (const char *name) override

void	procStateUrgent (const char *name) override

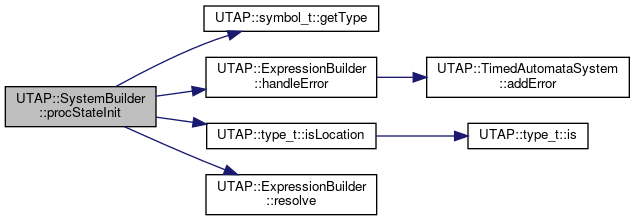

void	procStateInit (const char *name) override

void	procBranchpoint (const char *name) override

void	procEdgeBegin (const char from, const char to, const bool control, const char *actname) override

void	procEdgeEnd (const char from=0, const char to=0) override

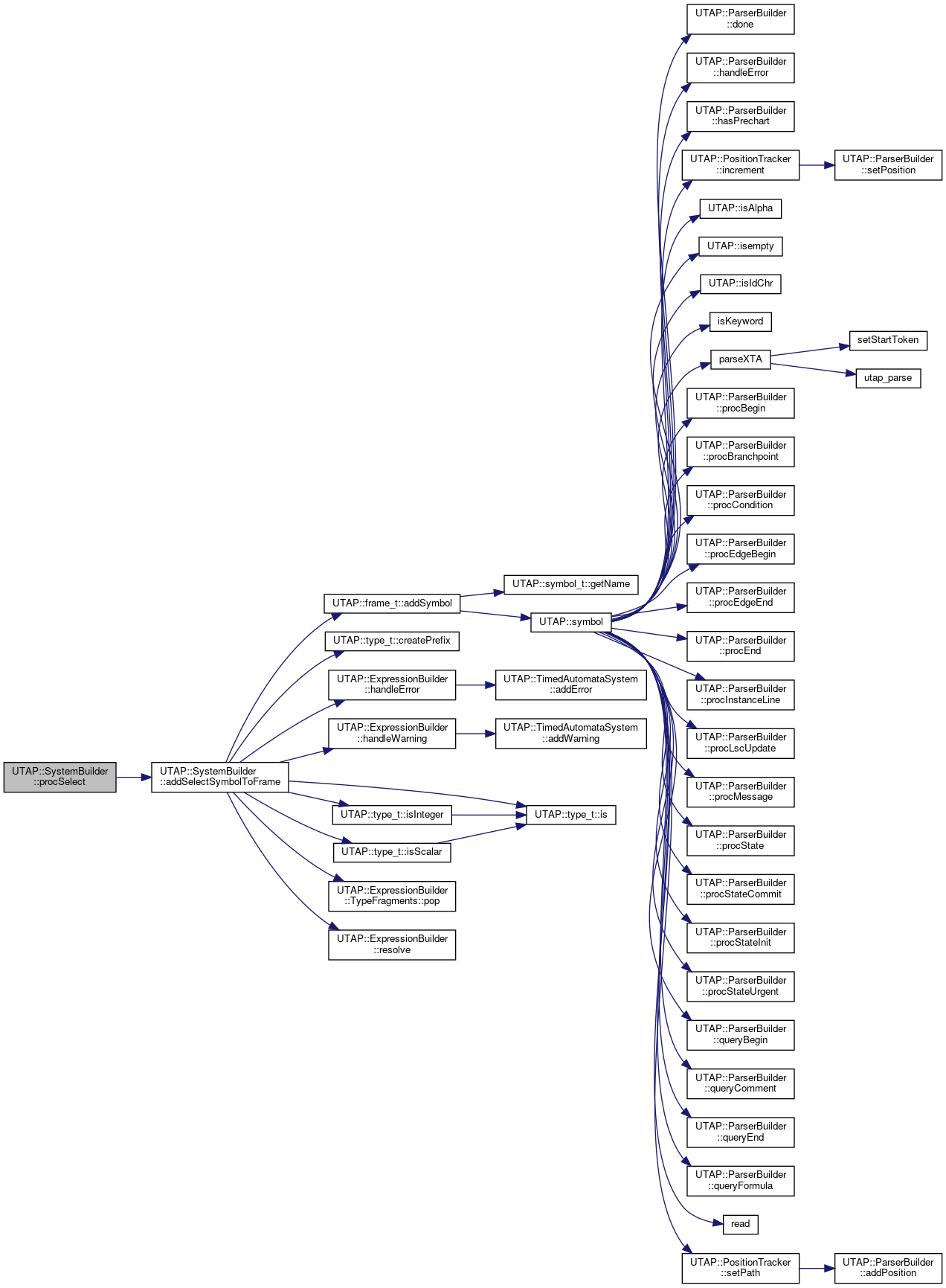

void	procSelect (const char *id) override

void	procGuard () override

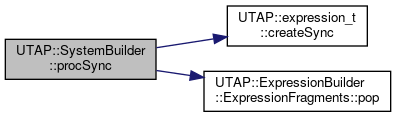

void	procSync (Constants::synchronisation_t type) override

void	procUpdate () override

void	procProb () override

void	instantiationBegin (const char , size_t, const char ) override

void	instantiationEnd (const char , size_t, const char , size_t) override

void	process (const char *) override

void	processListEnd () override

void	done () override

void	beforeUpdate () override

void	afterUpdate () override

void	beginChanPriority () override

void	addChanPriority (char separator) override

void	defaultChanPriority () override

void	incProcPriority () override

void	procPriority (const char *) override

void	procInstanceLine () override
	Adds an instance line to the current template. More...

void	instanceName (const char *name, bool templ=true) override
	templ is true if the name of the instance contains parameters like "Train(1)". More...

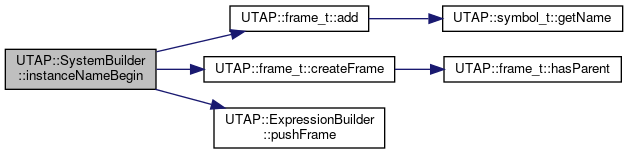

void	instanceNameBegin (const char *name) override

void	instanceNameEnd (const char *name, size_t arguments) override

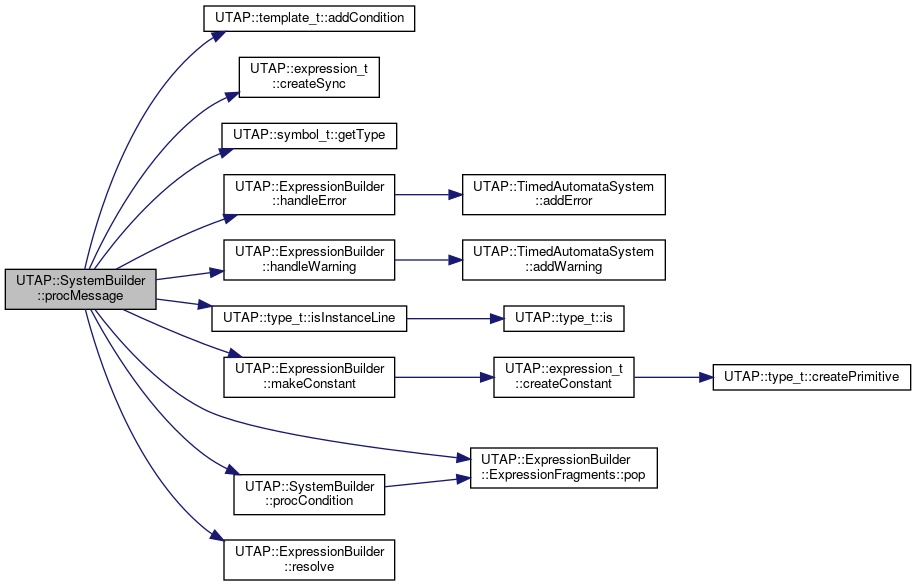

void	procMessage (const char from, const char to, const int loc, const bool pch) override
	Add a message to the current template. More...

void	procMessage (Constants::synchronisation_t type) override

void	procCondition (const std::vector< char *> anchors, const int loc, const bool pch, const bool hot) override

void	procCondition () override

void	procLscUpdate (const char *anchor, const int loc, const bool pch) override
	Add an update to the current template. More...

void	procLscUpdate () override

void	hasPrechart (const bool pch) override

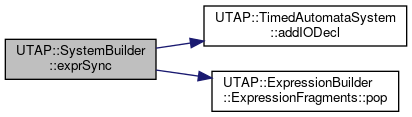

void	exprSync (Constants::synchronisation_t type) override

void	declIO (const char *, int, int) override

void	declDynamicTemplate (const std::string &) override
	Dynamic. More...

void	queryBegin () override
	Verification queries. More...

void	queryFormula (const char formula, const char location) override

void	queryComment (const char *comment) override

void	queryEnd () override

Public Member Functions inherited from UTAP::StatementBuilder
	StatementBuilder (TimedAutomataSystem *)

	~StatementBuilder ()

void	typeArrayOfSize (size_t) override
	Called to create an array type. More...

void	typeArrayOfType (size_t) override
	Called to create an array type. More...

void	typeStruct (PREFIX, uint32_t fields) override
	Used to construct a new struct type, which is then pushed onto the type stack. More...

void	structField (const char *name) override
	Used to declare the fields of a structure. More...

void	declTypeDef (const char *name) override
	A type definition. More...

void	declVar (const char *name, bool init) override
	Declare a new variable of the given name. More...

void	declInitialiserList (uint32_t num) override

void	declFieldInit (const char *name) override

void	declParameter (const char *name, bool) override

void	declFuncBegin (const char *name) override

void	declFuncEnd () override

void	blockBegin () override

void	blockEnd () override

void	emptyStatement () override

void	forBegin () override

void	forEnd () override

void	iterationBegin (const char *name) override

void	iterationEnd (const char *name) override

void	whileBegin () override

void	whileEnd () override

void	doWhileBegin () override

void	doWhileEnd () override

void	ifBegin () override

void	ifCondition () override

void	ifThen () override

void	ifEnd (bool) override

void	exprStatement () override

void	returnStatement (bool) override

void	assertStatement () override

void	exprCallBegin () override

Public Member Functions inherited from UTAP::ExpressionBuilder
	ExpressionBuilder (TimedAutomataSystem *)

ExpressionFragments &	getExpressions ()

void	addPosition (uint32_t position, uint32_t offset, uint32_t line, const std::string &path) override
	Add mapping from an absolute position to a relative XML element. More...

void	handleError (const std::string &) override

void	handleWarning (const std::string &) override

void	typeDuplicate () override
	Duplicate type at the top of the type stack. More...

void	typePop () override
	Pop type at the topof the type stack. More...

void	typeBool (PREFIX) override
	Called whenever a boolean type is parsed. More...

void	typeInt (PREFIX) override
	Called whenever an integer type is parsed. More...

void	typeDouble (PREFIX) override
	Called whenever a double type is parsed. More...

void	typeBoundedInt (PREFIX) override
	Called whenever an integer type with a range is parsed. More...

void	typeChannel (PREFIX) override
	Called whenever a channel type is parsed. More...

void	typeClock (PREFIX) override
	Called whenever a clock type is parsed. More...

void	typeVoid () override
	Called whenever a void type is parsed. More...

void	typeScalar (PREFIX) override
	Called whenever a scalar type is parsed. More...

void	typeName (PREFIX, const char *name) override
	Called when a type name has been parsed. More...

bool	isType (const char *) override
	Must return true if and only if name is registered in the symbol table as a named type, for instance, "int" or "bool" or a user defined type. More...

void	exprTrue () override

void	exprFalse () override

void	exprDouble (double) override

void	exprId (const char *varName) override

void	exprNat (int32_t) override

void	exprCallEnd (uint32_t n) override

void	exprArray () override

void	exprPostIncrement () override

void	exprPreIncrement () override

void	exprPostDecrement () override

void	exprPreDecrement () override

void	exprAssignment (Constants::kind_t op) override

void	exprUnary (Constants::kind_t unaryop) override

void	exprBinary (Constants::kind_t binaryop) override

void	exprNary (Constants::kind_t op, uint32_t num) override

void	exprScenario (const char *name) override

expression_t	exprScenario ()

void	exprTernary (Constants::kind_t ternaryop, bool firstMissing) override

void	exprInlineIf () override

void	exprComma () override

void	exprDot (const char *) override

void	exprDeadlock () override

void	exprForAllBegin (const char *name) override

void	exprForAllEnd (const char *name) override

void	exprExistsBegin (const char *name) override

void	exprExistsEnd (const char *name) override

void	exprSumBegin (const char *name) override

void	exprSumEnd (const char *name) override

void	exprBuiltinFunction1 (Constants::kind_t) override

void	exprBuiltinFunction2 (Constants::kind_t) override

void	exprBuiltinFunction3 (Constants::kind_t) override

void	exprSMCControl () override

void	exprProbaQualitative (Constants::kind_t, Constants::kind_t, double) override

void	exprProbaQuantitative (Constants::kind_t) override

void	exprProbaCompare (Constants::kind_t, Constants::kind_t) override

void	exprProbaExpected (const char *aggregatingOp) override

void	exprSimulate (int, bool=false, int=0) override

void	exprMitlFormula () override

void	exprMitlUntil (int, int) override

void	exprMitlRelease (int, int) override

void	exprMitlDisj () override

void	exprMitlConj () override

void	exprMitlNext () override

void	exprMitlAtom () override

void	exprMitlDiamond (int, int) override

void	exprMitlBox (int, int) override

void	exprSpawn (int params) override

void	exprExit () override

void	exprNumOf () override

void	exprForAllDynamicBegin (const char , const char ) override

void	exprForAllDynamicEnd (const char *name) override

void	exprExistsDynamicBegin (const char , const char ) override

void	exprExistsDynamicEnd (const char *) override

void	exprSumDynamicBegin (const char , const char ) override

void	exprSumDynamicEnd (const char *name) override

void	exprForeachDynamicBegin (const char , const char ) override

void	exprForeachDynamicEnd (const char *name) override

void	pushDynamicFrameOf (template_t *t, const std::string &name)

void	popDynamicFrameOf (const std::string &name)

Public Member Functions inherited from UTAP::AbstractBuilder
	AbstractBuilder ()

void	setPosition (uint32_t, uint32_t) override
	Sets the current position. More...

void	breakStatement () override

void	continueStatement () override

void	switchBegin () override

void	switchEnd () override

void	caseBegin () override

void	caseEnd () override

void	defaultBegin () override

void	defaultEnd () override

void	handleExpect (const char *text) override

void	property () override

void	scenario (const char *) override

void	parse (const char *) override

void	exprDynamicProcessExpr (const char *) override

void	exprMITLForAllDynamicBegin (const char , const char ) override

void	exprMITLForAllDynamicEnd (const char *name) override

void	exprMITLExistsDynamicBegin (const char , const char ) override

void	exprMITLExistsDynamicEnd (const char *name) override

Public Member Functions inherited from UTAP::ParserBuilder
virtual	~ParserBuilder ()

void	handleWarning (const char *msg,...)

void	handleError (const char *msg,...)

Protected Member Functions
declarations_t *	getCurrentDeclarationBlock ()

variable_t *	addVariable (type_t type, const char *name, expression_t init) override

bool	addFunction (type_t type, const char *name) override

void	addSelectSymbolToFrame (const char *name, frame_t &)

void	declHybridRec (expression_t)

Protected Member Functions inherited from UTAP::ExpressionBuilder
void	pushFrame (frame_t)
	Push a new frame. More...

void	popFrame ()
	Pop the topmost frame. More...

bool	resolve (const std::string &, symbol_t &)

expression_t	makeConstant (int value)

expression_t	makeConstant (double value)

type_t	applyPrefix (PREFIX, type_t type)
	Given a prefix and a type, this method creates a new type by applying the prefix. More...

virtual bool	allowProcessReferences ()
	If this method returns true, it is allowed to access the private identifiers of a process by prefixing the identifier with the process name. More...

Protected Attributes
int32_t	currentProcPriority
	The current process priority level. More...

edge_t *	currentEdge
	The edge under construction. More...

gantt_t *	currentGantt
	The gantt map under construction. More...

condition_t *	currentCondition
	The condition under construction. More...

update_t *	currentUpdate
	The update under construction. More...

message_t *	currentMessage
	The message under construction. More...

instanceLine_t *	currentInstanceLine
	The instance line under construction. More...

iodecl_t *	currentIODecl

query_t *	currentQuery

Protected Attributes inherited from UTAP::StatementBuilder
frame_t	params
	The params frame is used temporarily during parameter parsing. More...

function_t *	currentFun
	The function currently being parsed. More...

std::vector< BlockStatement * >	blocks
	Stack of nested statement blocks. More...

std::vector< type_t >	fields
	The types of a struct. More...

std::vector< std::string >	labels
	The labels of a struct. More...

Protected Attributes inherited from UTAP::ExpressionBuilder
ExpressionFragments	fragments
	Expression stack. More...

TypeFragments	typeFragments
	Type stack. More...

std::stack< frame_t >	frames
	Frame stack. More...

TimedAutomataSystem *	system
	Pointer to the system under construction. More...

template_t *	currentTemplate
	The template currently being parsed. More...

int32_t	scalar_count
	Counter for creating unique scalarset names. More...

std::map< std::string, frame_t >	dynamicFrames

Protected Attributes inherited from UTAP::AbstractBuilder
position_t	position

Additional Inherited Members
Public Types inherited from UTAP::ParserBuilder
enum	PREFIX { PREFIX_NONE = 0, PREFIX_CONST = 1, PREFIX_URGENT = 2, PREFIX_BROADCAST = 4, PREFIX_URGENT_BROADCAST = 6, PREFIX_SYSTEM_META = 8, PREFIX_HYBRID = 16 }

Public Attributes inherited from UTAP::ParserBuilder
std::vector< std::string >	lscTemplateNames

Static Protected Member Functions inherited from UTAP::StatementBuilder
static void	collectDependencies (std::set< symbol_t > &, expression_t)

static void	collectDependencies (std::set< symbol_t > &, type_t)

Detailed Description

This class constructs a TimedAutomataSystem.

It avoids as much type checking as possible - type checking should be done with the TypeChecker class. However some checks are more convenient to do in SystemBuilder:

states are not both committed and urgent
the source and target of an edge is a state
the dot operator is applied to a process or a structure (StatementBuilder)
functions are not recursive (StatementBuilder)
only declared functions are called (ExpressionBuilder)
functions are called with the correct number of arguments (StatementBuilder)
the initial state of a template is actually declared as a state
templates in instantiations have been declared
identifiers are not declared twice in the same scope (StatementBuilder)
type names do exist and are declared as types (StatementBuilder)
processes in the system line have been declared

Left hand side expressions are assigned the correct type by SystemBuilder; if not it would be difficult to represent dot-expressions.

SystemBuilder does not

check the correctness of variable initialisers, nor does it complete variable initialisers
type check expressions
check if arguments to functions or templates match the formal parameters
check if something is a proper left hand side value
check if things are assignment compatible
check conflicting use of synchronisations and guards on edge
handle properties

Use TypeChecker for these things.

Definition at line 69 of file systembuilder.h.

Constructor & Destructor Documentation

◆ SystemBuilder()

SystemBuilder::SystemBuilder ( TimedAutomataSystem * _system )

Definition at line 45 of file systembuilder.cpp.

References currentCondition, currentEdge, currentGantt, currentInstanceLine, currentIODecl, currentMessage, currentProcPriority, currentQuery, and currentUpdate.

Member Function Documentation

◆ addChanPriority()

void SystemBuilder::addChanPriority ( char separator )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 521 of file systembuilder.cpp.

References UTAP::TimedAutomataSystem::addChanPriority(), UTAP::ExpressionBuilder::fragments, UTAP::ExpressionBuilder::ExpressionFragments::pop(), and UTAP::ExpressionBuilder::system.

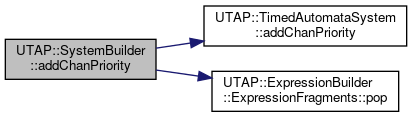

Here is the call graph for this function:

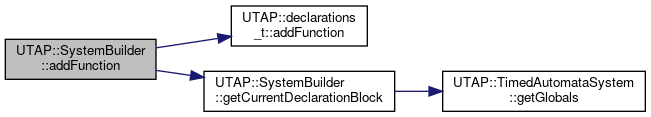

◆ addFunction()

bool SystemBuilder::addFunction	(	type_t	type,
		const char *	name
	)

overrideprotectedvirtual

Implements UTAP::StatementBuilder.

Definition at line 75 of file systembuilder.cpp.

References UTAP::declarations_t::addFunction(), UTAP::StatementBuilder::currentFun, and getCurrentDeclarationBlock().

Here is the call graph for this function:

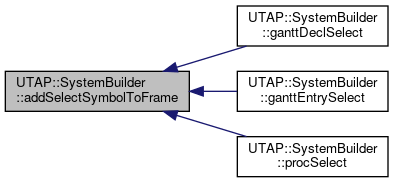

◆ addSelectSymbolToFrame()

void SystemBuilder::addSelectSymbolToFrame	(	const char *	name,
		frame_t &	frame
	)

protected

Definition at line 85 of file systembuilder.cpp.

References UTAP::frame_t::addSymbol(), UTAP::Constants::CONSTANT, UTAP::type_t::createPrefix(), UTAP::ExpressionBuilder::handleError(), UTAP::ExpressionBuilder::handleWarning(), UTAP::type_t::is(), UTAP::type_t::isInteger(), UTAP::type_t::isScalar(), UTAP::ExpressionBuilder::TypeFragments::pop(), UTAP::Constants::RANGE, UTAP::ExpressionBuilder::resolve(), and UTAP::ExpressionBuilder::typeFragments.

Referenced by ganttDeclSelect(), ganttEntrySelect(), and procSelect().

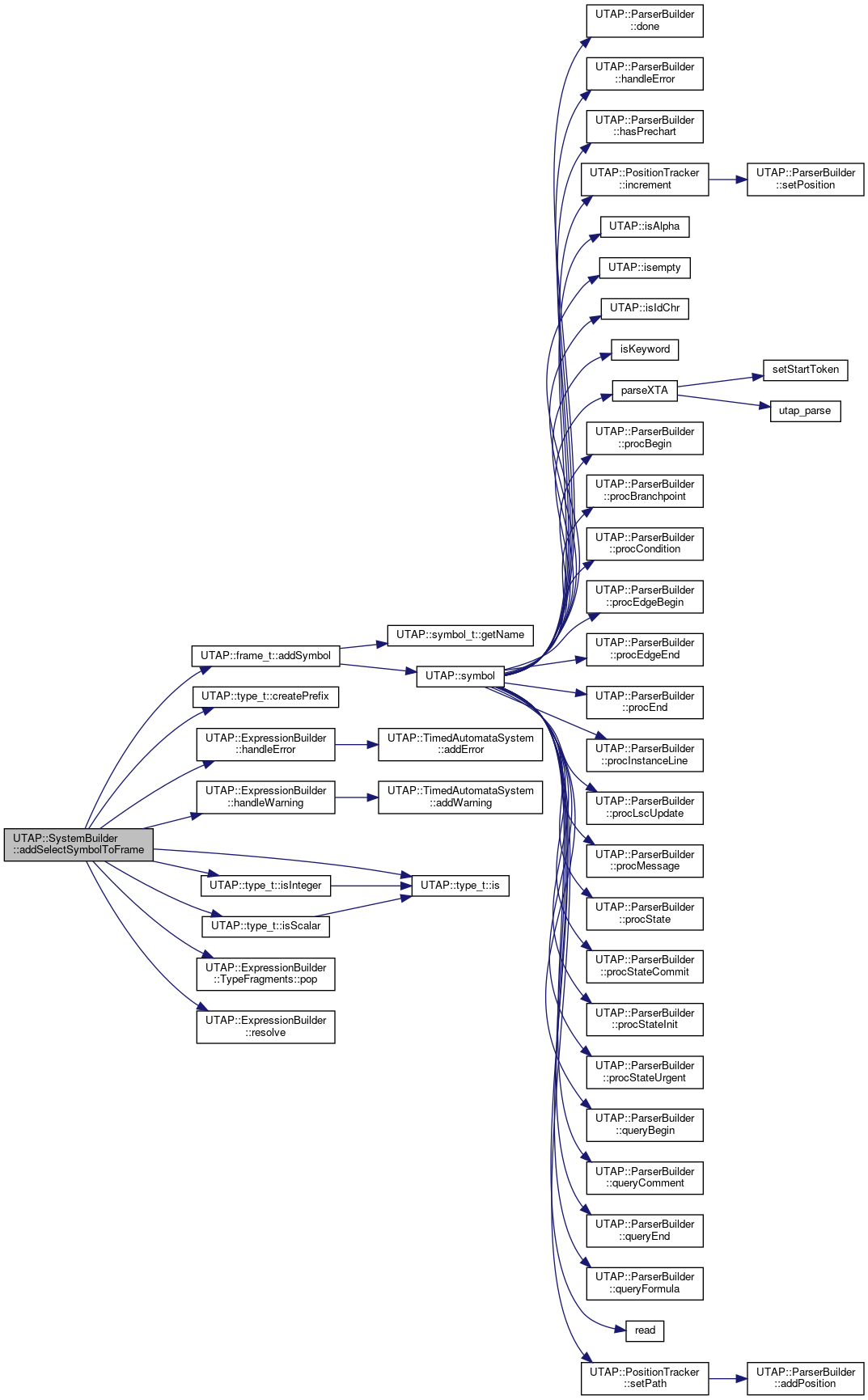

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addVariable()

variable_t * SystemBuilder::addVariable	(	type_t	type,
		const char *	name,
		expression_t	init
	)

overrideprotectedvirtual

Implements UTAP::StatementBuilder.

Definition at line 62 of file systembuilder.cpp.

References UTAP::TimedAutomataSystem::addVariable(), UTAP::TimedAutomataSystem::addVariableToFunction(), UTAP::StatementBuilder::currentFun, UTAP::ExpressionBuilder::frames, getCurrentDeclarationBlock(), and UTAP::ExpressionBuilder::system.

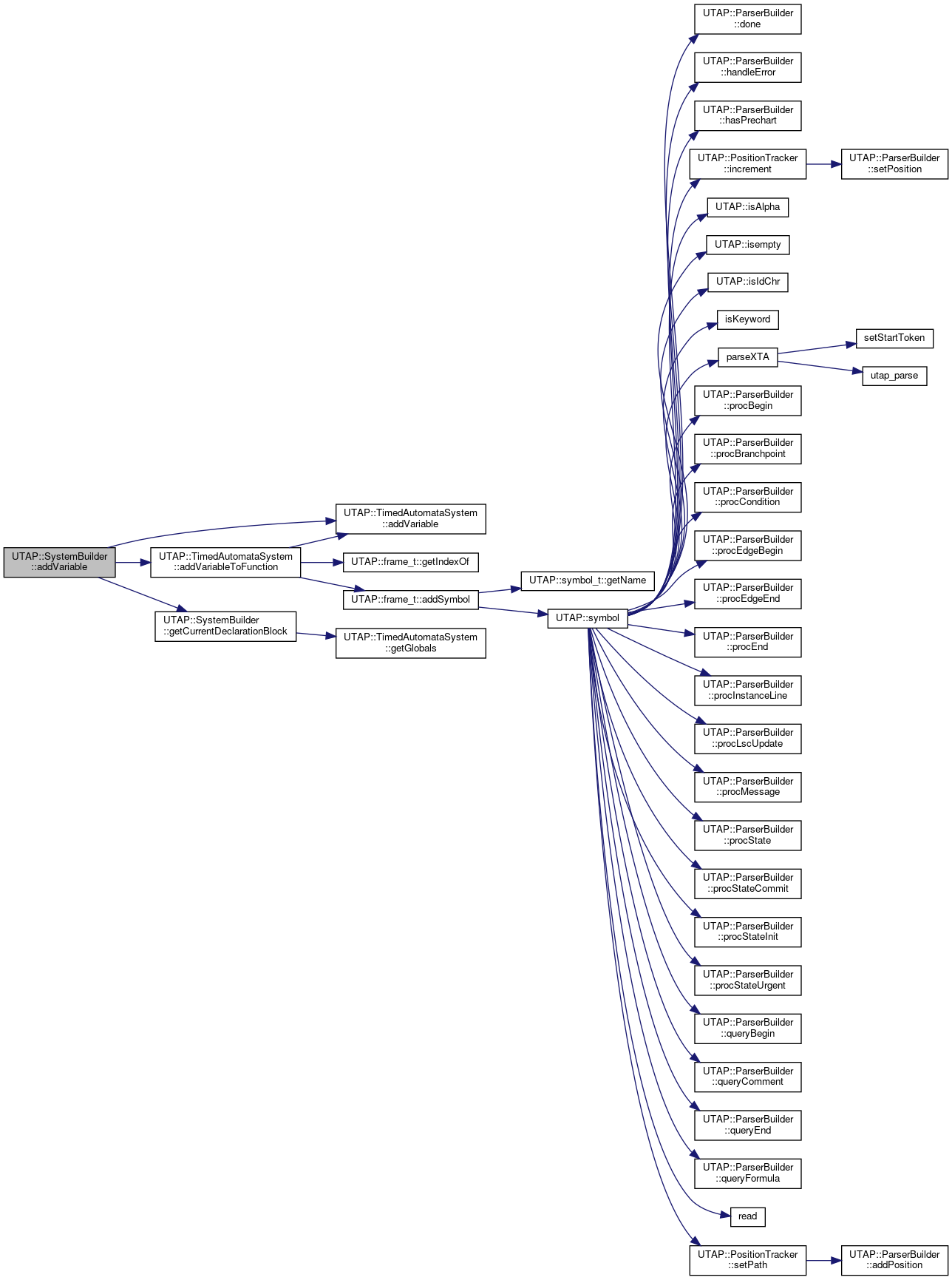

Here is the call graph for this function:

◆ afterUpdate()

void SystemBuilder::afterUpdate ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 505 of file systembuilder.cpp.

References UTAP::ExpressionBuilder::fragments, UTAP::ExpressionBuilder::ExpressionFragments::pop(), UTAP::TimedAutomataSystem::setAfterUpdate(), and UTAP::ExpressionBuilder::system.

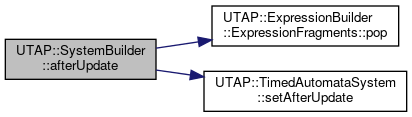

Here is the call graph for this function:

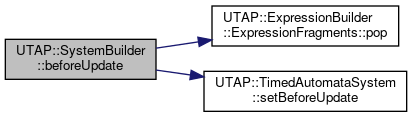

◆ beforeUpdate()

void SystemBuilder::beforeUpdate ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 499 of file systembuilder.cpp.

References UTAP::ExpressionBuilder::fragments, UTAP::ExpressionBuilder::ExpressionFragments::pop(), UTAP::TimedAutomataSystem::setBeforeUpdate(), and UTAP::ExpressionBuilder::system.

Here is the call graph for this function:

◆ beginChanPriority()

void SystemBuilder::beginChanPriority ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 515 of file systembuilder.cpp.

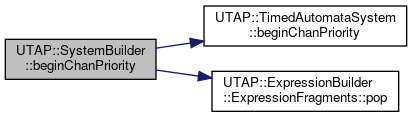

References UTAP::TimedAutomataSystem::beginChanPriority(), UTAP::ExpressionBuilder::fragments, UTAP::ExpressionBuilder::ExpressionFragments::pop(), and UTAP::ExpressionBuilder::system.

Here is the call graph for this function:

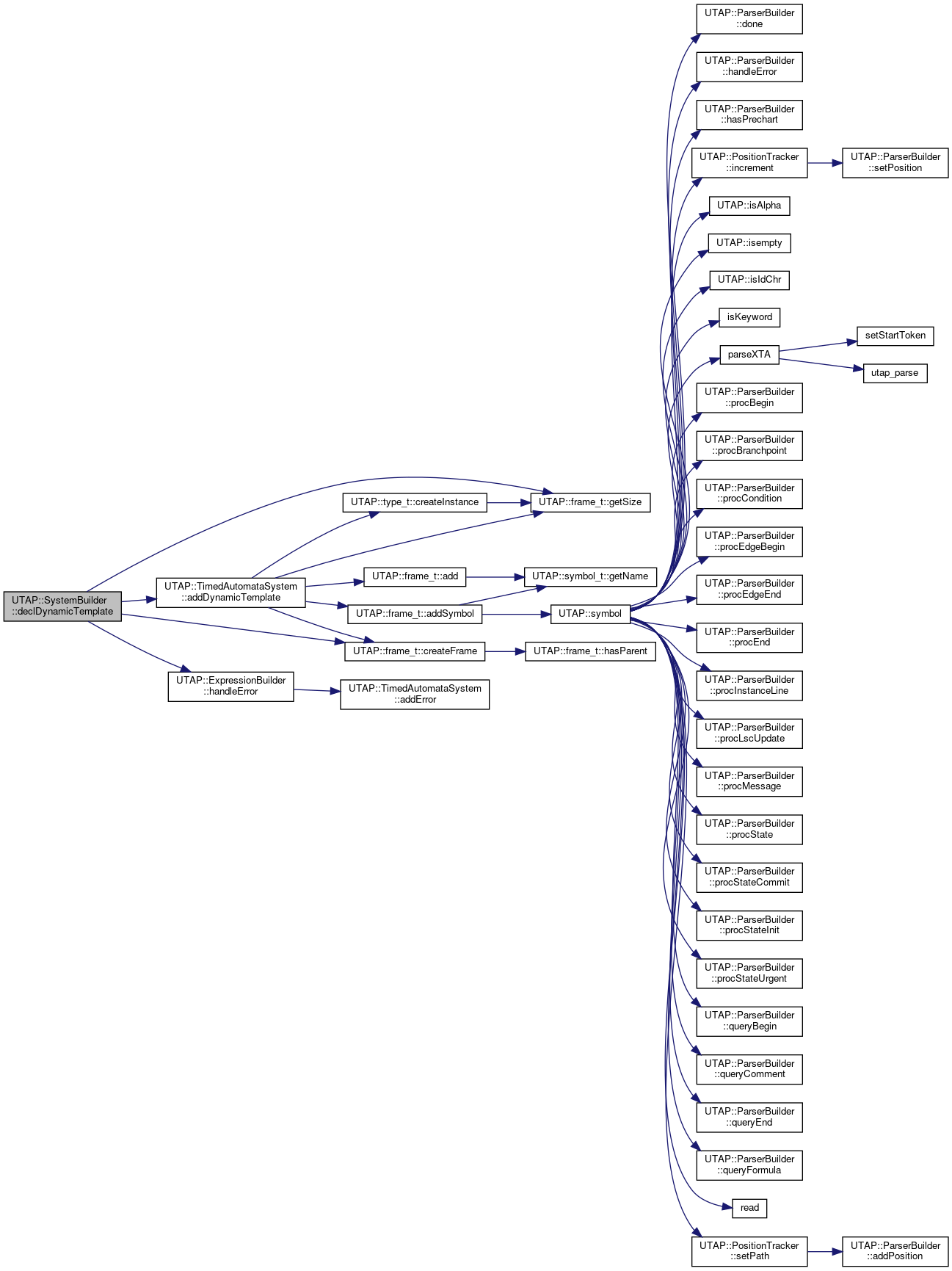

◆ declDynamicTemplate()

void SystemBuilder::declDynamicTemplate ( const std::string & )

overridevirtual

Dynamic.

Reimplemented from UTAP::AbstractBuilder.

Definition at line 815 of file systembuilder.cpp.

References UTAP::TimedAutomataSystem::addDynamicTemplate(), UTAP::Constants::BROADCAST, UTAP::frame_t::createFrame(), UTAP::ExpressionBuilder::currentTemplate, UTAP::ExpressionBuilder::frames, UTAP::frame_t::getSize(), UTAP::ExpressionBuilder::handleError(), UTAP::StatementBuilder::params, UTAP::Constants::REF, and UTAP::ExpressionBuilder::system.

Here is the call graph for this function:

◆ declHybridRec()

void UTAP::SystemBuilder::declHybridRec ( expression_t )

protected

◆ declIO()

void SystemBuilder::declIO	(	const char *	name,
		int	nbParam,
		int	nbSync
	)

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 800 of file systembuilder.cpp.

References UTAP::iodecl_t::csp, currentIODecl, UTAP::ExpressionBuilder::fragments, UTAP::iodecl_t::inputs, UTAP::iodecl_t::instanceName, UTAP::iodecl_t::outputs, UTAP::iodecl_t::param, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

Here is the call graph for this function:

◆ declProgress()

void SystemBuilder::declProgress ( bool hasGuard )

overridevirtual

Guard progress measure declaration.

Requires two expressions if hasGuard is true, otherwise one.

Reimplemented from UTAP::AbstractBuilder.

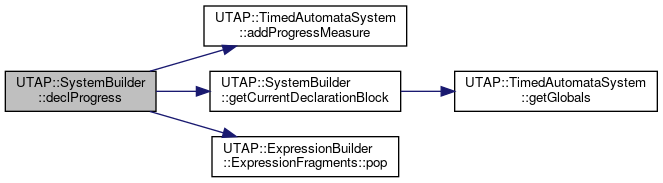

Definition at line 163 of file systembuilder.cpp.

References UTAP::TimedAutomataSystem::addProgressMeasure(), UTAP::ExpressionBuilder::fragments, getCurrentDeclarationBlock(), UTAP::ExpressionBuilder::ExpressionFragments::pop(), and UTAP::ExpressionBuilder::system.

Here is the call graph for this function:

◆ defaultChanPriority()

void SystemBuilder::defaultChanPriority ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 527 of file systembuilder.cpp.

References UTAP::ExpressionBuilder::fragments, and UTAP::ExpressionBuilder::ExpressionFragments::push().

Here is the call graph for this function:

◆ done()

void SystemBuilder::done ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 495 of file systembuilder.cpp.

◆ exprSync()

void SystemBuilder::exprSync ( Constants::synchronisation_t type )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 777 of file systembuilder.cpp.

References UTAP::TimedAutomataSystem::addIODecl(), UTAP::iodecl_t::csp, currentIODecl, UTAP::ExpressionBuilder::fragments, UTAP::iodecl_t::inputs, UTAP::iodecl_t::outputs, UTAP::ExpressionBuilder::ExpressionFragments::pop(), UTAP::Constants::SYNC_BANG, UTAP::Constants::SYNC_CSP, UTAP::Constants::SYNC_QUE, and UTAP::ExpressionBuilder::system.

Here is the call graph for this function:

◆ ganttDeclEnd()

void SystemBuilder::ganttDeclEnd ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 130 of file systembuilder.cpp.

References UTAP::TimedAutomataSystem::addGantt(), currentGantt, UTAP::ExpressionBuilder::frames, getCurrentDeclarationBlock(), UTAP::gantt_t::parameters, UTAP::ExpressionBuilder::popFrame(), and UTAP::ExpressionBuilder::system.

Here is the call graph for this function:

◆ ganttDeclSelect()

void SystemBuilder::ganttDeclSelect ( const char * id )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 125 of file systembuilder.cpp.

References addSelectSymbolToFrame(), and UTAP::ExpressionBuilder::frames.

Here is the call graph for this function:

◆ ganttDeclStart()

void SystemBuilder::ganttDeclStart ( const char * name )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 119 of file systembuilder.cpp.

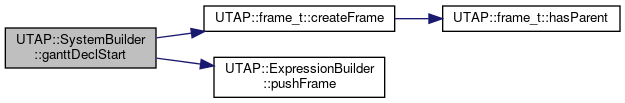

References UTAP::frame_t::createFrame(), currentGantt, UTAP::ExpressionBuilder::frames, and UTAP::ExpressionBuilder::pushFrame().

Here is the call graph for this function:

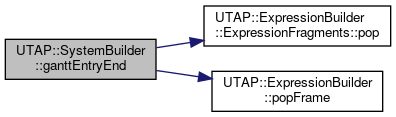

◆ ganttEntryEnd()

void SystemBuilder::ganttEntryEnd ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 149 of file systembuilder.cpp.

References currentGantt, UTAP::ExpressionBuilder::fragments, UTAP::ExpressionBuilder::frames, UTAP::ganttmap_t::mapping, UTAP::gantt_t::mapping, UTAP::ganttmap_t::parameters, UTAP::ExpressionBuilder::ExpressionFragments::pop(), UTAP::ExpressionBuilder::popFrame(), and UTAP::ganttmap_t::predicate.

Here is the call graph for this function:

◆ ganttEntrySelect()

void SystemBuilder::ganttEntrySelect ( const char * id )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 144 of file systembuilder.cpp.

References addSelectSymbolToFrame(), and UTAP::ExpressionBuilder::frames.

Here is the call graph for this function:

◆ ganttEntryStart()

void SystemBuilder::ganttEntryStart ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 139 of file systembuilder.cpp.

References UTAP::frame_t::createFrame(), UTAP::ExpressionBuilder::frames, and UTAP::ExpressionBuilder::pushFrame().

Here is the call graph for this function:

◆ getCurrentDeclarationBlock()

declarations_t * SystemBuilder::getCurrentDeclarationBlock ( )

protected

Definition at line 80 of file systembuilder.cpp.

References UTAP::ExpressionBuilder::currentTemplate, UTAP::TimedAutomataSystem::getGlobals(), and UTAP::ExpressionBuilder::system.

Referenced by addFunction(), addVariable(), declProgress(), and ganttDeclEnd().

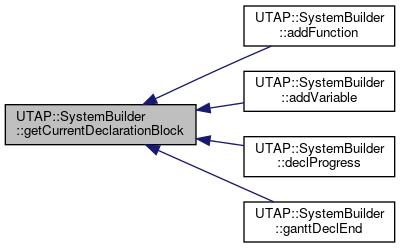

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hasPrechart()

void SystemBuilder::hasPrechart ( const bool pch )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 772 of file systembuilder.cpp.

References UTAP::ExpressionBuilder::currentTemplate, and UTAP::template_t::hasPrechart.

◆ incProcPriority()

void SystemBuilder::incProcPriority ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 532 of file systembuilder.cpp.

References currentProcPriority.

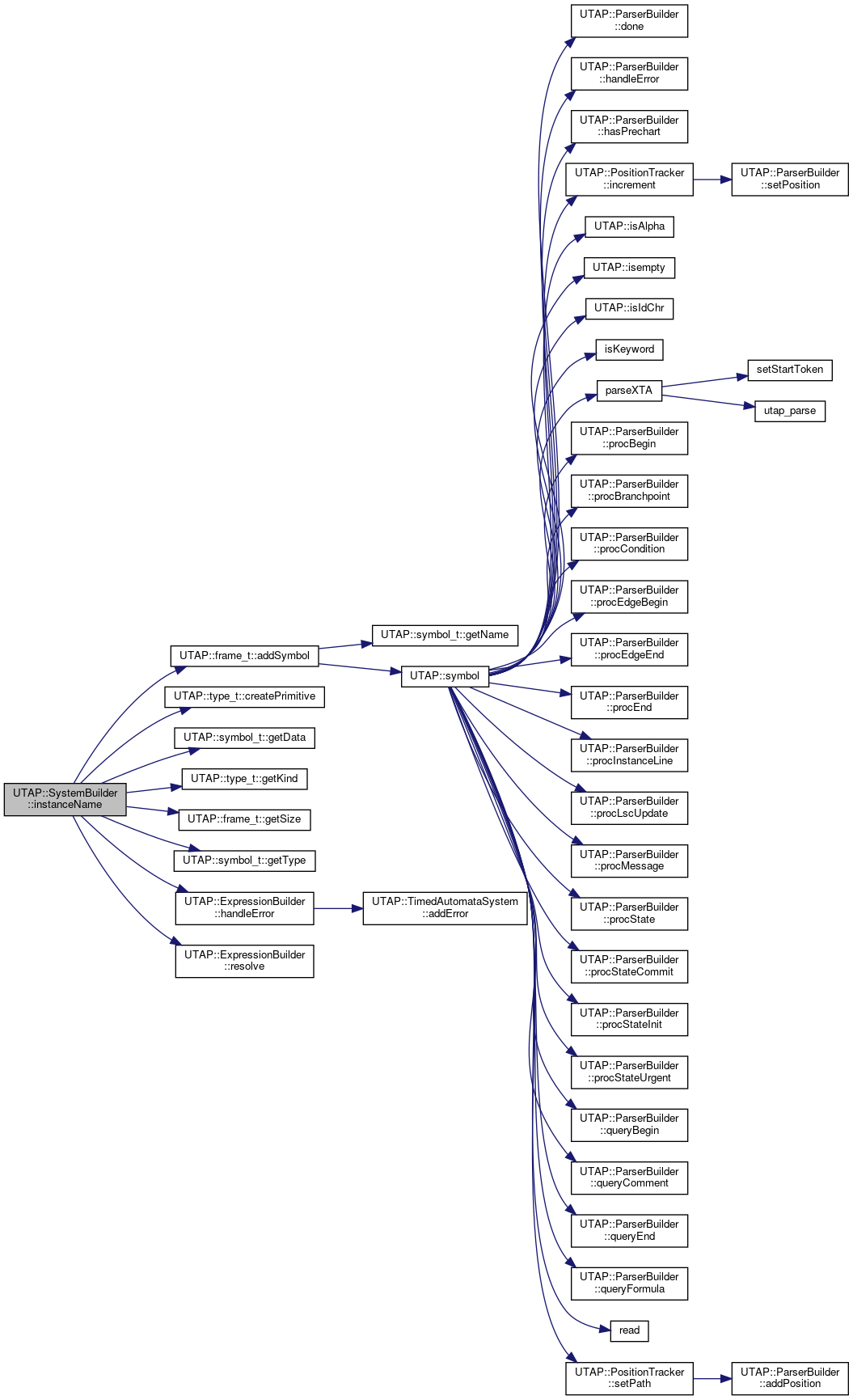

◆ instanceName()

void SystemBuilder::instanceName	(	const char *	name,
		bool	templ = `true`
	)

overridevirtual

templ is true if the name of the instance contains parameters like "Train(1)".

Here, "Train" is the name of a template.

Otherwise the name of the instance can be for example "Train1", where "Train1" is a process that has been instantiated "Train1 = Train(1)". In this case, we cannot check that "Train1" exists yet, because the system declarations have not yet been parsed.

Reimplemented from UTAP::AbstractBuilder.

Definition at line 567 of file systembuilder.cpp.

References UTAP::frame_t::addSymbol(), UTAP::type_t::createPrimitive(), currentInstanceLine, UTAP::ExpressionBuilder::currentTemplate, UTAP::declarations_t::frame, UTAP::symbol_t::getData(), UTAP::type_t::getKind(), UTAP::frame_t::getSize(), UTAP::symbol_t::getType(), UTAP::ExpressionBuilder::handleError(), UTAP::Constants::INSTANCE, UTAP::Constants::INSTANCELINE, UTAP::instance_t::parameters, UTAP::ExpressionBuilder::resolve(), and UTAP::instance_t::uid.

Referenced by instanceNameEnd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ instanceNameBegin()

void SystemBuilder::instanceNameBegin ( const char * name )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 594 of file systembuilder.cpp.

References UTAP::frame_t::add(), UTAP::frame_t::createFrame(), UTAP::ExpressionBuilder::frames, UTAP::StatementBuilder::params, and UTAP::ExpressionBuilder::pushFrame().

Here is the call graph for this function:

◆ instanceNameEnd()

void SystemBuilder::instanceNameEnd	(	const char *	name,
		size_t	arguments
	)

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 604 of file systembuilder.cpp.

References UTAP::instanceLine_t::addParameters(), UTAP::StatementBuilder::collectDependencies(), currentInstanceLine, UTAP::ExpressionBuilder::fragments, UTAP::ExpressionBuilder::frames, UTAP::ExpressionBuilder::handleError(), UTAP::Constants::INSTANCE, instanceName(), UTAP::instance_t::parameters, UTAP::ExpressionBuilder::ExpressionFragments::pop(), UTAP::ExpressionBuilder::popFrame(), UTAP::ExpressionBuilder::resolve(), and UTAP::instance_t::restricted.

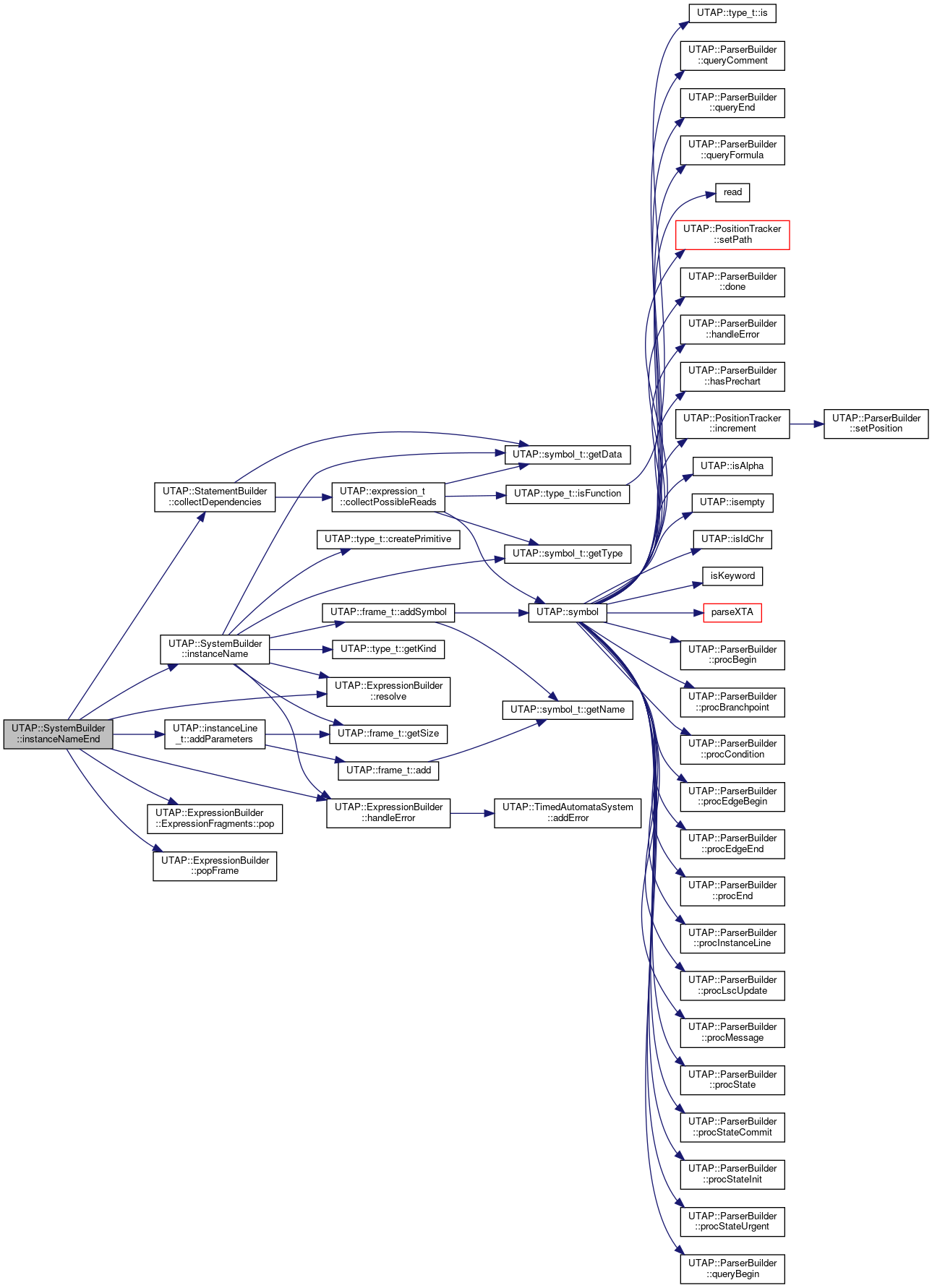

Here is the call graph for this function:

◆ instantiationBegin()

void SystemBuilder::instantiationBegin	(	const char *	name,
		size_t	parameters,
		const char *	templ_name
	)

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 374 of file systembuilder.cpp.

References UTAP::frame_t::add(), UTAP::frame_t::createFrame(), UTAP::ExpressionBuilder::frames, UTAP::ExpressionBuilder::handleError(), UTAP::Constants::INSTANCE, UTAP::Constants::LSCINSTANCE, UTAP::StatementBuilder::params, UTAP::ExpressionBuilder::pushFrame(), and UTAP::ExpressionBuilder::resolve().

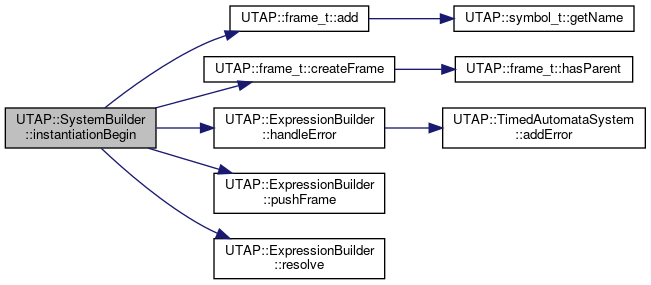

Here is the call graph for this function:

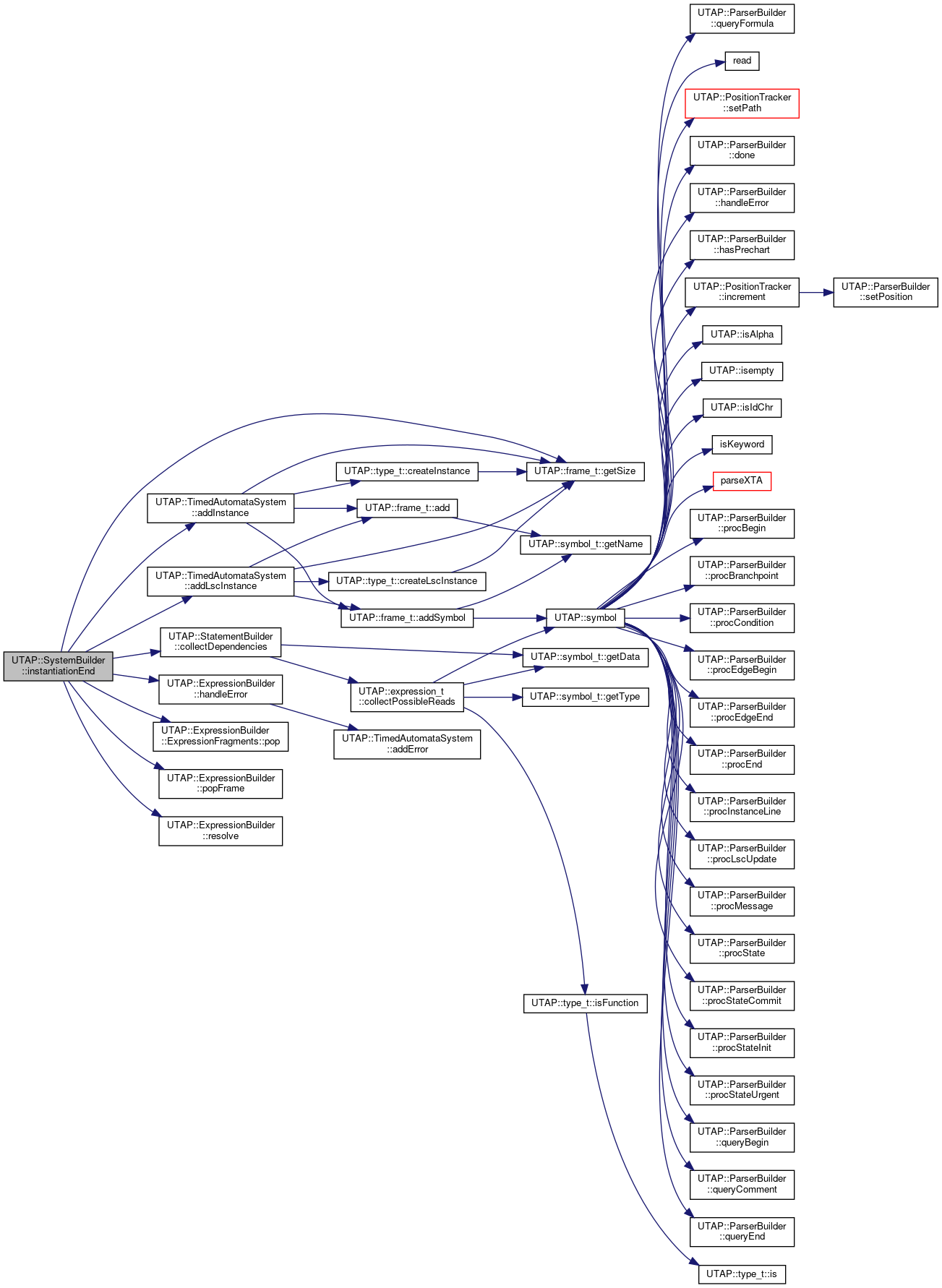

◆ instantiationEnd()

void SystemBuilder::instantiationEnd	(	const char *	name,
		size_t	parameters,
		const char *	templ_name,
		size_t	arguments
	)

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 402 of file systembuilder.cpp.

References UTAP::TimedAutomataSystem::addInstance(), UTAP::TimedAutomataSystem::addLscInstance(), UTAP::StatementBuilder::collectDependencies(), UTAP::ExpressionBuilder::fragments, UTAP::ExpressionBuilder::frames, UTAP::frame_t::getSize(), UTAP::ExpressionBuilder::handleError(), UTAP::Constants::INSTANCE, UTAP::Constants::LSCINSTANCE, UTAP::instance_t::parameters, UTAP::ExpressionBuilder::ExpressionFragments::pop(), UTAP::ExpressionBuilder::popFrame(), UTAP::ExpressionBuilder::resolve(), UTAP::instance_t::restricted, and UTAP::ExpressionBuilder::system.

Here is the call graph for this function:

◆ procBegin()

void SystemBuilder::procBegin	(	const char *	name,
		const bool	isTA = `true`,
		const std::string	type = `""`,
		const std::string	mode = `""`
	)

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 179 of file systembuilder.cpp.

References UTAP::TimedAutomataSystem::addTemplate(), UTAP::frame_t::createFrame(), UTAP::ExpressionBuilder::currentTemplate, UTAP::declarations_t::frame, UTAP::ExpressionBuilder::frames, UTAP::TimedAutomataSystem::getDynamicTemplate(), UTAP::frame_t::getSize(), UTAP::ExpressionBuilder::handleError(), UTAP::template_t::isDefined, UTAP::ParserBuilder::lscTemplateNames, UTAP::instance_t::parameters, UTAP::StatementBuilder::params, UTAP::ExpressionBuilder::pushFrame(), and UTAP::ExpressionBuilder::system.

Here is the call graph for this function:

◆ procBranchpoint()

void SystemBuilder::procBranchpoint ( const char * name )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 287 of file systembuilder.cpp.

References UTAP::template_t::addBranchpoint(), and UTAP::ExpressionBuilder::currentTemplate.

Here is the call graph for this function:

◆ procCondition() [1/2]

void UTAP::SystemBuilder::procCondition	(	const std::vector< char *>	anchors,
		const int	loc,
		const bool	pch,
		const bool	hot
	)

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

◆ procCondition() [2/2]

void SystemBuilder::procCondition ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 740 of file systembuilder.cpp.

References currentCondition, UTAP::ExpressionBuilder::fragments, UTAP::condition_t::label, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

Referenced by procMessage().

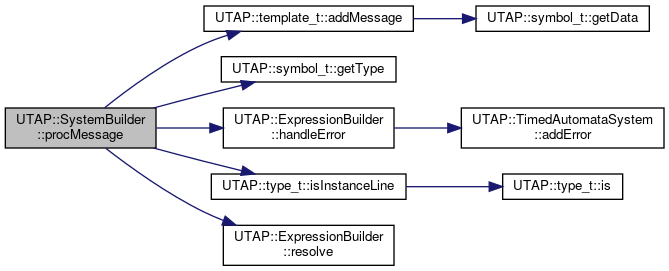

Here is the call graph for this function:

Here is the caller graph for this function:

◆ procEdgeBegin()

void SystemBuilder::procEdgeBegin	(	const char *	from,
		const char *	to,
		const bool	control,
		const char *	actname
	)

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 305 of file systembuilder.cpp.

References UTAP::template_t::addEdge(), UTAP::edge_t::assign, UTAP::frame_t::createFrame(), currentEdge, UTAP::ExpressionBuilder::currentTemplate, UTAP::ExpressionBuilder::frames, UTAP::symbol_t::getType(), UTAP::edge_t::guard, UTAP::ExpressionBuilder::handleError(), UTAP::type_t::isBranchpoint(), UTAP::type_t::isLocation(), UTAP::ExpressionBuilder::makeConstant(), UTAP::ExpressionBuilder::pushFrame(), UTAP::ExpressionBuilder::resolve(), and UTAP::edge_t::select.

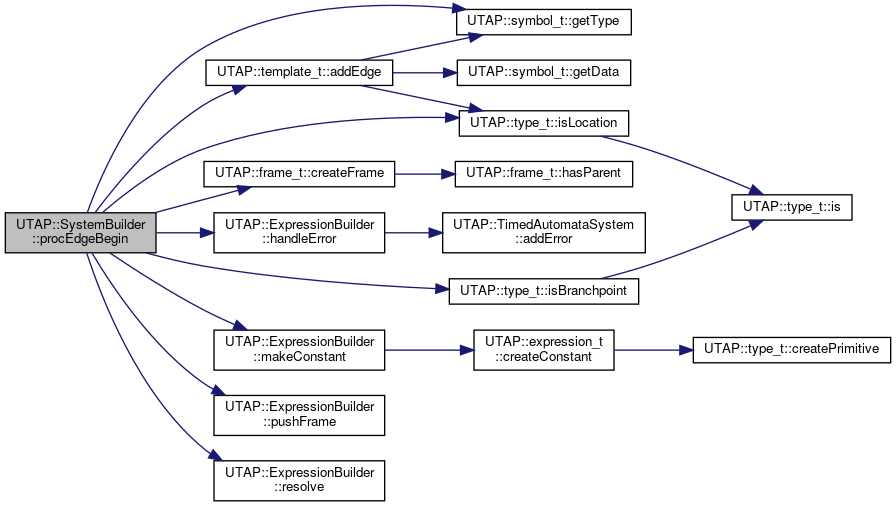

Here is the call graph for this function:

◆ procEdgeEnd()

void SystemBuilder::procEdgeEnd	(	const char *	from = `0`,
		const char *	to = `0`
	)

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 332 of file systembuilder.cpp.

References UTAP::ExpressionBuilder::popFrame().

Here is the call graph for this function:

◆ procEnd()

void SystemBuilder::procEnd ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 225 of file systembuilder.cpp.

References UTAP::ExpressionBuilder::currentTemplate, and UTAP::ExpressionBuilder::popFrame().

Here is the call graph for this function:

◆ process()

void SystemBuilder::process ( const char * name )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 471 of file systembuilder.cpp.

References UTAP::TimedAutomataSystem::addProcess(), UTAP::symbol_t::getData(), UTAP::type_t::getKind(), UTAP::symbol_t::getName(), UTAP::symbol_t::getType(), UTAP::Constants::INSTANCE, procPriority(), UTAP::ExpressionBuilder::resolve(), UTAP::type_t::size(), UTAP::symbol(), and UTAP::ExpressionBuilder::system.

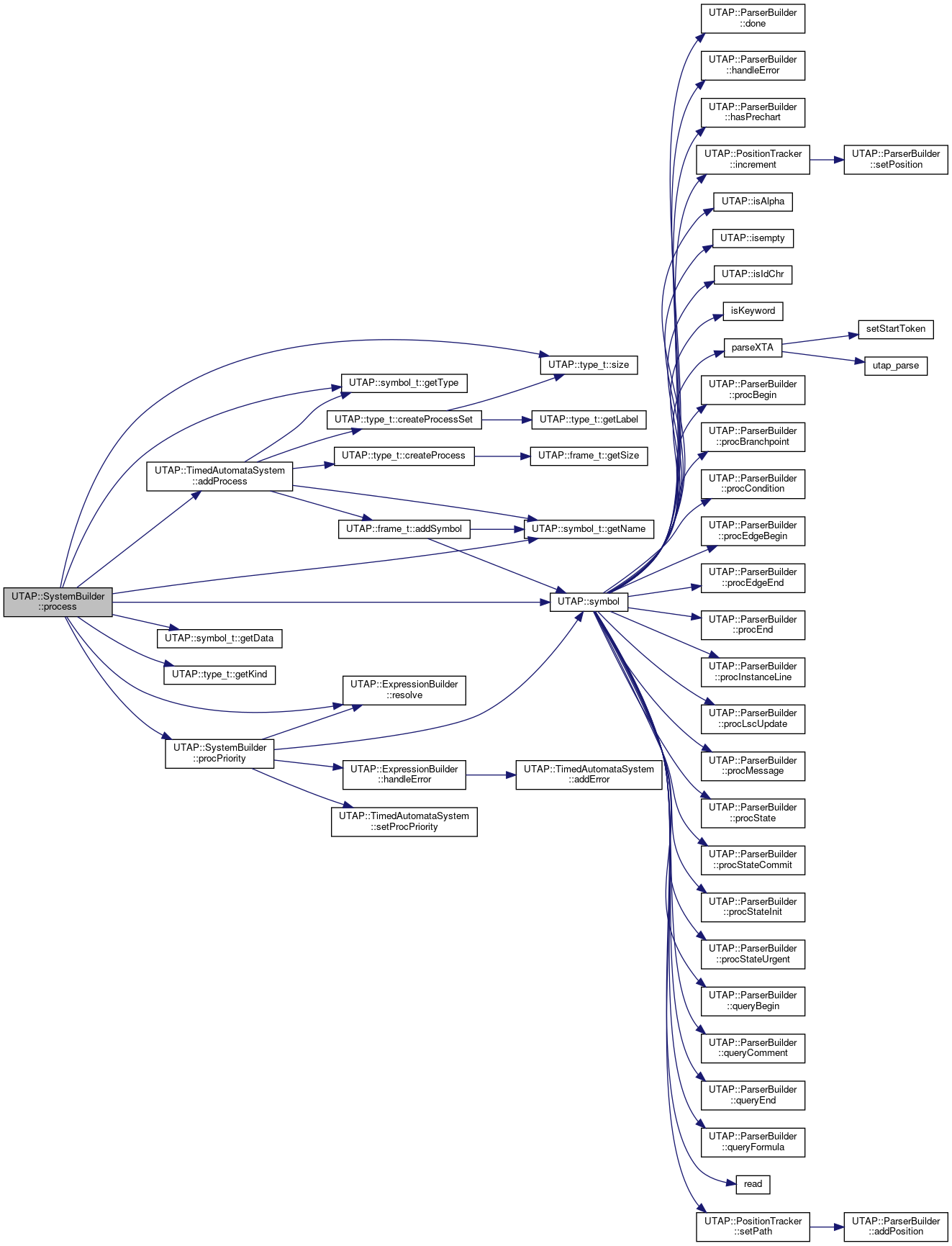

Here is the call graph for this function:

◆ processListEnd()

void SystemBuilder::processListEnd ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 491 of file systembuilder.cpp.

◆ procGuard()

void SystemBuilder::procGuard ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 342 of file systembuilder.cpp.

References currentEdge, UTAP::ExpressionBuilder::fragments, UTAP::edge_t::guard, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

Here is the call graph for this function:

◆ procInstanceLine()

void SystemBuilder::procInstanceLine ( )

overridevirtual

Adds an instance line to the current template.

Reimplemented from UTAP::AbstractBuilder.

Definition at line 554 of file systembuilder.cpp.

References UTAP::template_t::addInstanceLine(), currentInstanceLine, and UTAP::ExpressionBuilder::currentTemplate.

Here is the call graph for this function:

◆ procLscUpdate() [1/2]

void SystemBuilder::procLscUpdate	(	const char *	anchor,
		const int	loc,
		const bool	pch
	)

overridevirtual

Add an update to the current template.

Reimplemented from UTAP::AbstractBuilder.

Definition at line 750 of file systembuilder.cpp.

References UTAP::template_t::addUpdate(), UTAP::ExpressionBuilder::currentTemplate, currentUpdate, UTAP::symbol_t::getType(), UTAP::ExpressionBuilder::handleError(), UTAP::type_t::isInstanceLine(), UTAP::update_t::label, UTAP::ExpressionBuilder::makeConstant(), and UTAP::ExpressionBuilder::resolve().

Here is the call graph for this function:

◆ procLscUpdate() [2/2]

void SystemBuilder::procLscUpdate ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 765 of file systembuilder.cpp.

References currentUpdate, UTAP::ExpressionBuilder::fragments, UTAP::update_t::label, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

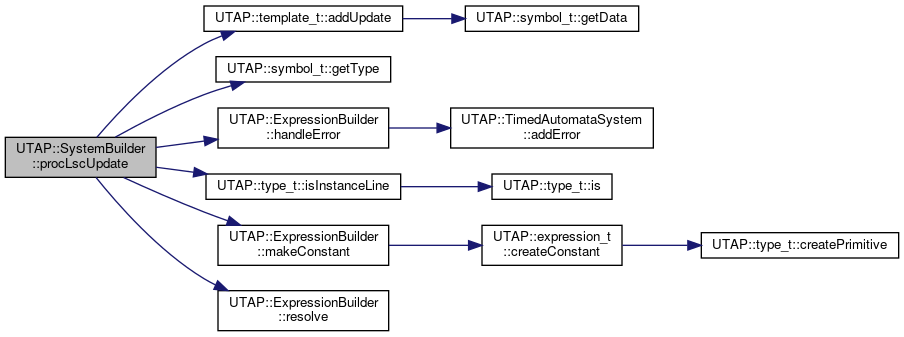

Here is the call graph for this function:

◆ procMessage() [1/2]

void SystemBuilder::procMessage	(	const char *	from,
		const char *	to,
		const int	loc,
		const bool	pch
	)

overridevirtual

Add a message to the current template.

Reimplemented from UTAP::AbstractBuilder.

Definition at line 683 of file systembuilder.cpp.

References UTAP::template_t::addMessage(), currentMessage, UTAP::ExpressionBuilder::currentTemplate, UTAP::symbol_t::getType(), UTAP::ExpressionBuilder::handleError(), UTAP::type_t::isInstanceLine(), and UTAP::ExpressionBuilder::resolve().

Here is the call graph for this function:

◆ procMessage() [2/2]

void SystemBuilder::procMessage ( Constants::synchronisation_t type )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 699 of file systembuilder.cpp.

References UTAP::template_t::addCondition(), UTAP::expression_t::createSync(), currentCondition, currentMessage, UTAP::ExpressionBuilder::currentTemplate, UTAP::ExpressionBuilder::fragments, UTAP::symbol_t::getType(), UTAP::ExpressionBuilder::handleError(), UTAP::ExpressionBuilder::handleWarning(), UTAP::type_t::isInstanceLine(), UTAP::message_t::label, UTAP::condition_t::label, UTAP::ExpressionBuilder::makeConstant(), UTAP::ExpressionBuilder::ExpressionFragments::pop(), UTAP::AbstractBuilder::position, procCondition(), and UTAP::ExpressionBuilder::resolve().

Here is the call graph for this function:

◆ procPriority()

void SystemBuilder::procPriority ( const char * name )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 537 of file systembuilder.cpp.

References currentProcPriority, UTAP::ExpressionBuilder::handleError(), UTAP::ExpressionBuilder::resolve(), UTAP::TimedAutomataSystem::setProcPriority(), UTAP::symbol(), and UTAP::ExpressionBuilder::system.

Referenced by process().

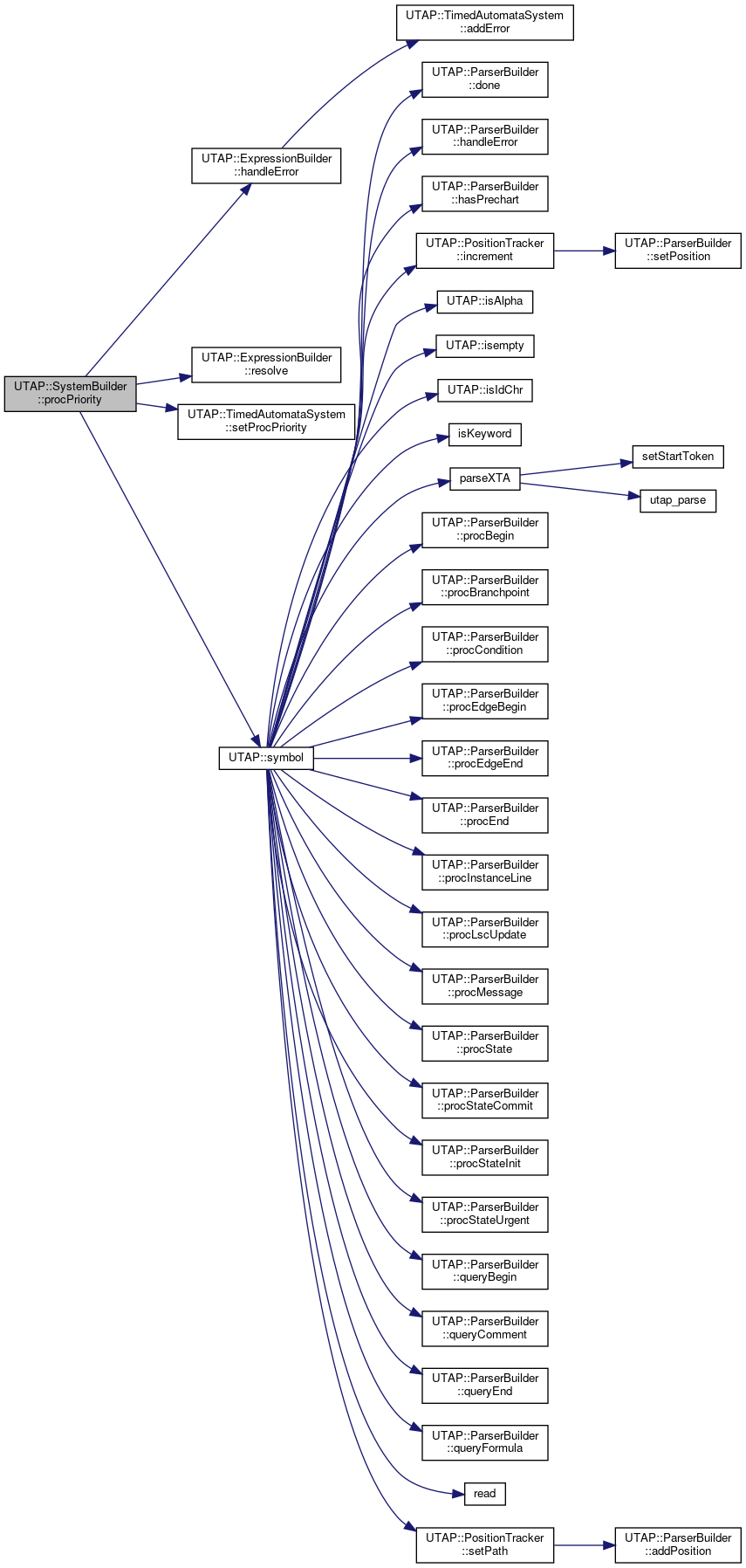

Here is the call graph for this function:

Here is the caller graph for this function:

◆ procProb()

void SystemBuilder::procProb ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 361 of file systembuilder.cpp.

References currentEdge, UTAP::ExpressionBuilder::fragments, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

Here is the call graph for this function:

◆ procSelect()

void SystemBuilder::procSelect ( const char * id )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 337 of file systembuilder.cpp.

References addSelectSymbolToFrame(), currentEdge, and UTAP::edge_t::select.

Here is the call graph for this function:

◆ procState()

void SystemBuilder::procState	(	const char *	name,
		bool	hasInvariant,
		bool	hasER
	)

overridevirtual

Add a state to the current template.

An invariant expression is expected on and popped from the expression stack if hasInvariant is true.

Reimplemented from UTAP::AbstractBuilder.

Definition at line 236 of file systembuilder.cpp.

References UTAP::template_t::addLocation(), UTAP::ExpressionBuilder::currentTemplate, UTAP::ExpressionBuilder::fragments, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

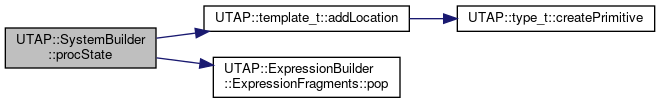

Here is the call graph for this function:

◆ procStateCommit()

void SystemBuilder::procStateCommit ( const char * name )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 252 of file systembuilder.cpp.

References UTAP::Constants::COMMITTED, UTAP::type_t::createPrefix(), UTAP::symbol_t::getType(), UTAP::ExpressionBuilder::handleError(), UTAP::type_t::is(), UTAP::type_t::isLocation(), UTAP::AbstractBuilder::position, UTAP::ExpressionBuilder::resolve(), UTAP::symbol_t::setType(), and UTAP::Constants::URGENT.

Here is the call graph for this function:

◆ procStateInit()

void SystemBuilder::procStateInit ( const char * name )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 292 of file systembuilder.cpp.

References UTAP::ExpressionBuilder::currentTemplate, UTAP::symbol_t::getType(), UTAP::ExpressionBuilder::handleError(), UTAP::template_t::init, UTAP::type_t::isLocation(), and UTAP::ExpressionBuilder::resolve().

Here is the call graph for this function:

◆ procStateUrgent()

void SystemBuilder::procStateUrgent ( const char * name )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 269 of file systembuilder.cpp.

References UTAP::Constants::COMMITTED, UTAP::type_t::createPrefix(), UTAP::symbol_t::getType(), UTAP::ExpressionBuilder::handleError(), UTAP::type_t::is(), UTAP::type_t::isLocation(), UTAP::AbstractBuilder::position, UTAP::ExpressionBuilder::resolve(), UTAP::symbol_t::setType(), and UTAP::Constants::URGENT.

Here is the call graph for this function:

◆ procSync()

void SystemBuilder::procSync ( Constants::synchronisation_t type )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 348 of file systembuilder.cpp.

References UTAP::expression_t::createSync(), currentEdge, UTAP::ExpressionBuilder::fragments, UTAP::ExpressionBuilder::ExpressionFragments::pop(), UTAP::AbstractBuilder::position, and UTAP::edge_t::sync.

Here is the call graph for this function:

◆ procUpdate()

void SystemBuilder::procUpdate ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 354 of file systembuilder.cpp.

References UTAP::edge_t::assign, currentEdge, UTAP::ExpressionBuilder::fragments, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

Here is the call graph for this function:

◆ queryBegin()

void SystemBuilder::queryBegin ( )

overridevirtual

Verification queries.

Reimplemented from UTAP::AbstractBuilder.

Definition at line 837 of file systembuilder.cpp.

References currentQuery.

◆ queryComment()

void SystemBuilder::queryComment ( const char * comment )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 851 of file systembuilder.cpp.

References UTAP::query_t::comment, comment, and currentQuery.

◆ queryEnd()

void SystemBuilder::queryEnd ( )

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 857 of file systembuilder.cpp.

References UTAP::TimedAutomataSystem::addQuery(), currentQuery, and UTAP::ExpressionBuilder::system.

Here is the call graph for this function:

◆ queryFormula()

void SystemBuilder::queryFormula	(	const char *	formula,
		const char *	location
	)

overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 841 of file systembuilder.cpp.

References currentQuery, UTAP::query_t::formula, and UTAP::query_t::location.

Member Data Documentation

◆ currentCondition

condition_t* UTAP::SystemBuilder::currentCondition

protected

The condition under construction.

Definition at line 82 of file systembuilder.h.

Referenced by procCondition(), procMessage(), and SystemBuilder().

◆ currentEdge

edge_t* UTAP::SystemBuilder::currentEdge

protected

The edge under construction.

Definition at line 76 of file systembuilder.h.

Referenced by procEdgeBegin(), procGuard(), procProb(), procSelect(), procSync(), procUpdate(), and SystemBuilder().

◆ currentGantt

gantt_t* UTAP::SystemBuilder::currentGantt

protected

The gantt map under construction.

Definition at line 79 of file systembuilder.h.

Referenced by ganttDeclEnd(), ganttDeclStart(), ganttEntryEnd(), and SystemBuilder().

◆ currentInstanceLine

instanceLine_t* UTAP::SystemBuilder::currentInstanceLine

protected

The instance line under construction.

Definition at line 91 of file systembuilder.h.

Referenced by instanceName(), instanceNameEnd(), procInstanceLine(), and SystemBuilder().

◆ currentIODecl

iodecl_t* UTAP::SystemBuilder::currentIODecl

protected

Definition at line 93 of file systembuilder.h.

Referenced by declIO(), exprSync(), and SystemBuilder().

◆ currentMessage

message_t* UTAP::SystemBuilder::currentMessage

protected

The message under construction.

Definition at line 88 of file systembuilder.h.

Referenced by procMessage(), and SystemBuilder().

◆ currentProcPriority

int32_t UTAP::SystemBuilder::currentProcPriority

protected

The current process priority level.

Definition at line 73 of file systembuilder.h.

Referenced by incProcPriority(), procPriority(), and SystemBuilder().

◆ currentQuery

query_t* UTAP::SystemBuilder::currentQuery

protected

Definition at line 95 of file systembuilder.h.

Referenced by queryBegin(), queryComment(), queryEnd(), queryFormula(), and SystemBuilder().

◆ currentUpdate

update_t* UTAP::SystemBuilder::currentUpdate

protected

The update under construction.

Definition at line 85 of file systembuilder.h.

Referenced by procLscUpdate(), and SystemBuilder().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SystemBuilder()

Member Function Documentation

◆ addChanPriority()

◆ addFunction()

◆ addSelectSymbolToFrame()

◆ addVariable()

◆ afterUpdate()

◆ beforeUpdate()

◆ beginChanPriority()

◆ declDynamicTemplate()

◆ declHybridRec()

◆ declIO()

◆ declProgress()

◆ defaultChanPriority()

◆ done()

◆ exprSync()

◆ ganttDeclEnd()

◆ ganttDeclSelect()

◆ ganttDeclStart()

◆ ganttEntryEnd()

◆ ganttEntrySelect()

◆ ganttEntryStart()

◆ getCurrentDeclarationBlock()

◆ hasPrechart()

◆ incProcPriority()

◆ instanceName()

◆ instanceNameBegin()

◆ instanceNameEnd()

◆ instantiationBegin()

◆ instantiationEnd()

◆ procBegin()

◆ procBranchpoint()

◆ procCondition() [1/2]

◆ procCondition() [2/2]

◆ procEdgeBegin()

◆ procEdgeEnd()

◆ procEnd()

◆ process()

◆ processListEnd()

◆ procGuard()

◆ procInstanceLine()

◆ procLscUpdate() [1/2]

◆ procLscUpdate() [2/2]

◆ procMessage() [1/2]

◆ procMessage() [2/2]

◆ procPriority()

◆ procProb()

◆ procSelect()

◆ procState()

◆ procStateCommit()

◆ procStateInit()

◆ procStateUrgent()

◆ procSync()

◆ procUpdate()

◆ queryBegin()

◆ queryComment()

◆ queryEnd()

◆ queryFormula()

Member Data Documentation

◆ currentCondition

◆ currentEdge

◆ currentGantt

◆ currentInstanceLine

◆ currentIODecl

◆ currentMessage

◆ currentProcPriority

◆ currentQuery

◆ currentUpdate
