The ParserBuilder interface is used by the parser to output the parsed system. More...

#include <builder.h>

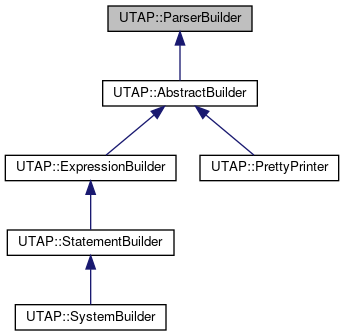

Inheritance diagram for UTAP::ParserBuilder:

[legend]

Public Types
enum	PREFIX { PREFIX_NONE = 0, PREFIX_CONST = 1, PREFIX_URGENT = 2, PREFIX_BROADCAST = 4, PREFIX_URGENT_BROADCAST = 6, PREFIX_SYSTEM_META = 8, PREFIX_HYBRID = 16 }

Public Member Functions
virtual	~ParserBuilder ()

virtual void	addPosition (uint32_t position, uint32_t offset, uint32_t line, const std::string &path)=0
	Add mapping from an absolute position to a relative XML element. More...

virtual void	setPosition (uint32_t a, uint32_t b)=0
	Sets the current position. More...

virtual void	handleError (const std::string &)=0

virtual void	handleWarning (const std::string &)=0

void	handleWarning (const char *msg,...)

void	handleError (const char *msg,...)

virtual bool	isType (const char *)=0
	Must return true if and only if name is registered in the symbol table as a named type, for instance, "int" or "bool" or a user defined type. More...

virtual void	typeDuplicate ()=0
	Duplicate type at the top of the type stack. More...

virtual void	typePop ()=0
	Pop type at the topof the type stack. More...

virtual void	typeBool (PREFIX)=0
	Called whenever a boolean type is parsed. More...

virtual void	typeInt (PREFIX)=0
	Called whenever an integer type is parsed. More...

virtual void	typeDouble (PREFIX)=0
	Called whenever a double type is parsed. More...

virtual void	typeBoundedInt (PREFIX)=0
	Called whenever an integer type with a range is parsed. More...

virtual void	typeChannel (PREFIX)=0
	Called whenever a channel type is parsed. More...

virtual void	typeClock (PREFIX)=0
	Called whenever a clock type is parsed. More...

virtual void	typeVoid ()=0
	Called whenever a void type is parsed. More...

virtual void	typeArrayOfSize (size_t)=0
	Called to create an array type. More...

virtual void	typeArrayOfType (size_t)=0
	Called to create an array type. More...

virtual void	typeScalar (PREFIX)=0
	Called whenever a scalar type is parsed. More...

virtual void	typeName (PREFIX, const char *name)=0
	Called when a type name has been parsed. More...

virtual void	typeStruct (PREFIX, uint32_t fields)=0
	Called when a struct-type has been parsed. More...

virtual void	structField (const char *name)=0
	Called to declare a field of a structure. More...

virtual void	declTypeDef (const char *name)=0
	Used when a typedef declaration was parsed. More...

virtual void	declVar (const char *name, bool init)=0
	Called to when a variable declaration has been parsed. More...

virtual void	declInitialiserList (uint32_t num)=0

virtual void	declFieldInit (const char *name)=0

virtual void	declProgress (bool hasGuard)=0
	Guard progress measure declaration. More...

virtual void	ganttDeclStart (const char *name)=0

virtual void	ganttDeclSelect (const char *id)=0

virtual void	ganttDeclEnd ()=0

virtual void	ganttEntryStart ()=0

virtual void	ganttEntrySelect (const char *id)=0

virtual void	ganttEntryEnd ()=0

virtual void	declParameter (const char *name, bool ref)=0

virtual void	declFuncBegin (const char *name)=0

virtual void	declFuncEnd ()=0

virtual void	procBegin (const char *name, const bool isTA=true, const std::string type="", const std::string mode="")=0

virtual void	procEnd ()=0

virtual void	procState (const char *name, bool hasInvariant, bool hasER)=0

virtual void	procStateCommit (const char *name)=0

virtual void	procStateUrgent (const char *name)=0

virtual void	procStateInit (const char *name)=0

virtual void	procEdgeBegin (const char from, const char to, const bool control, const char *actname="")=0

virtual void	procEdgeEnd (const char from, const char to)=0

virtual void	procSelect (const char *id)=0

virtual void	procGuard ()=0

virtual void	procSync (Constants::synchronisation_t type)=0

virtual void	procUpdate ()=0

virtual void	procProb ()=0

virtual void	procBranchpoint (const char *name)=0

virtual void	procInstanceLine ()=0

virtual void	instanceName (const char *name, bool templ=true)=0

virtual void	instanceNameBegin (const char *name)=0

virtual void	instanceNameEnd (const char *name, size_t arguments)=0

virtual void	procMessage (const char from, const char to, const int loc, const bool pch)=0

virtual void	procMessage (Constants::synchronisation_t type)=0

virtual void	procCondition (const std::vector< char *> anchors, const int loc, const bool pch, const bool hot)=0

virtual void	procCondition ()=0

virtual void	procLscUpdate (const char *anchor, const int loc, const bool pch)=0

virtual void	procLscUpdate ()=0

virtual void	hasPrechart (const bool pch)=0

virtual void	blockBegin ()=0

virtual void	blockEnd ()=0

virtual void	emptyStatement ()=0

virtual void	forBegin ()=0

virtual void	forEnd ()=0

virtual void	iterationBegin (const char *name)=0

virtual void	iterationEnd (const char *name)=0

virtual void	whileBegin ()=0

virtual void	whileEnd ()=0

virtual void	doWhileBegin ()=0

virtual void	doWhileEnd ()=0

virtual void	ifBegin ()=0

virtual void	ifCondition ()=0

virtual void	ifThen ()=0

virtual void	ifEnd (bool elsePart)=0

virtual void	breakStatement ()=0

virtual void	continueStatement ()=0

virtual void	switchBegin ()=0

virtual void	switchEnd ()=0

virtual void	caseBegin ()=0

virtual void	caseEnd ()=0

virtual void	defaultBegin ()=0

virtual void	defaultEnd ()=0

virtual void	exprStatement ()=0

virtual void	returnStatement (bool)=0

virtual void	assertStatement ()=0

virtual void	exprFalse ()=0

virtual void	exprTrue ()=0

virtual void	exprDouble (double)=0

virtual void	exprId (const char *varName)=0

virtual void	exprNat (int32_t)=0

virtual void	exprCallBegin ()=0

virtual void	exprCallEnd (uint32_t n)=0

virtual void	exprArray ()=0

virtual void	exprPostIncrement ()=0

virtual void	exprPreIncrement ()=0

virtual void	exprPostDecrement ()=0

virtual void	exprPreDecrement ()=0

virtual void	exprAssignment (Constants::kind_t op)=0

virtual void	exprUnary (Constants::kind_t unaryop)=0

virtual void	exprBinary (Constants::kind_t binaryop)=0

virtual void	exprNary (Constants::kind_t, uint32_t num)=0

virtual void	exprScenario (const char *name)=0

virtual void	exprTernary (Constants::kind_t ternaryop, bool firstMissing=false)=0

virtual void	exprInlineIf ()=0

virtual void	exprComma ()=0

virtual void	exprDot (const char *)=0

virtual void	exprDeadlock ()=0

virtual void	exprForAllBegin (const char *name)=0

virtual void	exprForAllEnd (const char *name)=0

virtual void	exprExistsBegin (const char *name)=0

virtual void	exprExistsEnd (const char *name)=0

virtual void	exprSumBegin (const char *name)=0

virtual void	exprSumEnd (const char *name)=0

virtual void	exprSync (Constants::synchronisation_t type)=0

virtual void	declIO (const char *, int, int)=0

virtual void	exprSMCControl ()=0

virtual void	exprProbaQualitative (Constants::kind_t pathQuant, Constants::kind_t compType, double probBound)=0

virtual void	exprProbaQuantitative (Constants::kind_t pathQuant)=0

virtual void	exprProbaCompare (Constants::kind_t pathQuant1, Constants::kind_t pathQuant2)=0

virtual void	exprProbaExpected (const char *aggregatingOp)=0

virtual void	exprBuiltinFunction1 (Constants::kind_t)=0

virtual void	exprBuiltinFunction2 (Constants::kind_t)=0

virtual void	exprBuiltinFunction3 (Constants::kind_t)=0

virtual void	exprMitlFormula ()=0

virtual void	exprMitlUntil (int, int)=0

virtual void	exprMitlRelease (int, int)=0

virtual void	exprMitlDisj ()=0

virtual void	exprMitlConj ()=0

virtual void	exprMitlNext ()=0

virtual void	exprMitlAtom ()=0

virtual void	exprMitlDiamond (int, int)=0

virtual void	exprMitlBox (int, int)=0

virtual void	exprSimulate (int, bool=false, int=0)=0

virtual void	instantiationBegin (const char id, size_t parameters, const char templ)=0

virtual void	instantiationEnd (const char id, size_t parameters, const char templ, size_t arguments)=0

virtual void	process (const char *)=0

virtual void	processListEnd ()=0

virtual void	done ()=0

virtual void	handleExpect (const char *text)=0

virtual void	property ()=0

virtual void	scenario (const char *)=0

virtual void	parse (const char *)=0

virtual void	beforeUpdate ()=0

virtual void	afterUpdate ()=0

virtual void	beginChanPriority ()=0

virtual void	addChanPriority (char separator)=0

virtual void	defaultChanPriority ()=0

virtual void	incProcPriority ()=0

virtual void	procPriority (const char *)=0

virtual void	declDynamicTemplate (const std::string &)=0
	Dynamic. More...

virtual void	exprSpawn (int)=0

virtual void	exprExit ()=0

virtual void	exprNumOf ()=0

virtual void	exprForAllDynamicBegin (const char , const char )=0

virtual void	exprForAllDynamicEnd (const char *name)=0

virtual void	exprExistsDynamicBegin (const char , const char )=0

virtual void	exprExistsDynamicEnd (const char *name)=0

virtual void	exprSumDynamicBegin (const char , const char )=0

virtual void	exprSumDynamicEnd (const char *name)=0

virtual void	exprForeachDynamicBegin (const char , const char )=0

virtual void	exprForeachDynamicEnd (const char *name)=0

virtual void	exprMITLForAllDynamicBegin (const char , const char )=0

virtual void	exprMITLForAllDynamicEnd (const char *name)=0

virtual void	exprMITLExistsDynamicBegin (const char , const char )=0

virtual void	exprMITLExistsDynamicEnd (const char *name)=0

virtual void	exprDynamicProcessExpr (const char *)=0

virtual void	queryBegin ()=0
	Verification queries. More...

virtual void	queryFormula (const char formula, const char location)=0

virtual void	queryComment (const char *comment)=0

virtual void	queryEnd ()=0

Public Attributes
std::vector< std::string >	lscTemplateNames

Detailed Description

The ParserBuilder interface is used by the parser to output the parsed system.

The parser itself will only parse the system - it will not actually store or otherwise process the input. Instead, the parser is configured with an implementation of the ParserBuilder interface. Productions in the BNF implemented by the parser correspond to methods in the ParserBuilder interface.

Errors (such as type errors) can be reported back to the parser by either throwing a TypeException or by calling an error method in the ErrorHandler that has been set by a call to setErrorHandler().

Expressions

Expressions are reported in reverse polish notation using the exprXXX methods.

Declarations

The proper protocol for declaring a new type name is to

report the type using the typeXXX methods
call declTypeDef(name) to declare the type-name

The proper protocol for declaring a variable is to

report the type using the typeXXX methods
optionally report an expression for the initialiser
call declVar(name, init), where init is true if and only if an initialiser has been reported

Definition at line 80 of file builder.h.

Member Enumeration Documentation

◆ PREFIX

enum UTAP::ParserBuilder::PREFIX

Enumerator
PREFIX_NONE
PREFIX_CONST
PREFIX_URGENT
PREFIX_BROADCAST
PREFIX_URGENT_BROADCAST
PREFIX_SYSTEM_META
PREFIX_HYBRID

Definition at line 86 of file builder.h.

Constructor & Destructor Documentation

◆ ~ParserBuilder()

virtual UTAP::ParserBuilder::~ParserBuilder ( )

inlinevirtual

Definition at line 96 of file builder.h.

References comment, parseProperty(), parseXMLBuffer(), parseXMLFile(), and parseXTA().

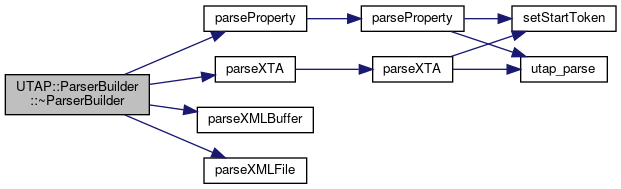

Here is the call graph for this function:

Member Function Documentation

◆ addChanPriority()

virtual void UTAP::ParserBuilder::addChanPriority ( char separator )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::SystemBuilder.

◆ addPosition()

virtual void UTAP::ParserBuilder::addPosition	(	uint32_t	position,
		uint32_t	offset,
		uint32_t	line,
		const std::string &	path
	)

pure virtual

Add mapping from an absolute position to a relative XML element.

Implemented in UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

Referenced by UTAP::PositionTracker::newline(), and UTAP::PositionTracker::setPath().

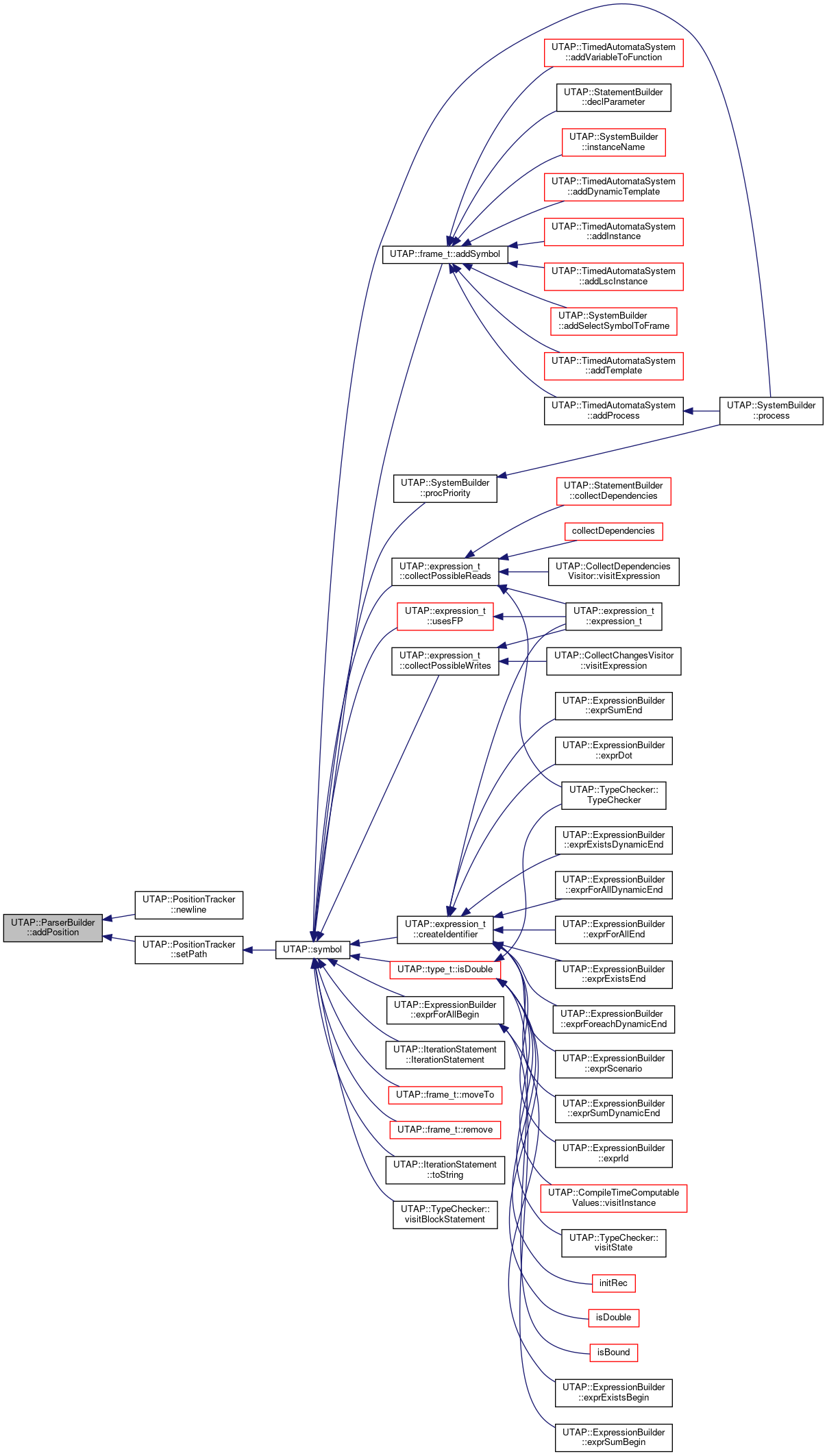

Here is the caller graph for this function:

◆ afterUpdate()

virtual void UTAP::ParserBuilder::afterUpdate ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::SystemBuilder.

◆ assertStatement()

virtual void UTAP::ParserBuilder::assertStatement ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::StatementBuilder.

◆ beforeUpdate()

virtual void UTAP::ParserBuilder::beforeUpdate ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::SystemBuilder.

◆ beginChanPriority()

virtual void UTAP::ParserBuilder::beginChanPriority ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::SystemBuilder.

◆ blockBegin()

virtual void UTAP::ParserBuilder::blockBegin ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ blockEnd()

virtual void UTAP::ParserBuilder::blockEnd ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ breakStatement()

virtual void UTAP::ParserBuilder::breakStatement ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

◆ caseBegin()

virtual void UTAP::ParserBuilder::caseBegin ( )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ caseEnd()

virtual void UTAP::ParserBuilder::caseEnd ( )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ continueStatement()

virtual void UTAP::ParserBuilder::continueStatement ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

◆ declDynamicTemplate()

virtual void UTAP::ParserBuilder::declDynamicTemplate ( const std::string & )

pure virtual

Dynamic.

Implemented in UTAP::AbstractBuilder, and UTAP::SystemBuilder.

◆ declFieldInit()

virtual void UTAP::ParserBuilder::declFieldInit ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ declFuncBegin()

virtual void UTAP::ParserBuilder::declFuncBegin ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ declFuncEnd()

virtual void UTAP::ParserBuilder::declFuncEnd ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ declInitialiserList()

virtual void UTAP::ParserBuilder::declInitialiserList ( uint32_t num )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ declIO()

virtual void UTAP::ParserBuilder::declIO	(	const char *	,
		int	,
		int
	)

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::SystemBuilder.

◆ declParameter()

virtual void UTAP::ParserBuilder::declParameter	(	const char *	name,
		bool	ref
	)

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ declProgress()

virtual void UTAP::ParserBuilder::declProgress ( bool hasGuard )

pure virtual

Guard progress measure declaration.

Requires two expressions if hasGuard is true, otherwise one.

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ declTypeDef()

virtual void UTAP::ParserBuilder::declTypeDef ( const char * name )

pure virtual

Used when a typedef declaration was parsed.

name is the name of the new type.

Implemented in UTAP::PrettyPrinter, UTAP::AbstractBuilder, and UTAP::StatementBuilder.

◆ declVar()

virtual void UTAP::ParserBuilder::declVar	(	const char *	name,
		bool	init
	)

pure virtual

Called to when a variable declaration has been parsed.

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ defaultBegin()

virtual void UTAP::ParserBuilder::defaultBegin ( )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ defaultChanPriority()

virtual void UTAP::ParserBuilder::defaultChanPriority ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::SystemBuilder.

◆ defaultEnd()

virtual void UTAP::ParserBuilder::defaultEnd ( )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ done()

virtual void UTAP::ParserBuilder::done ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::SystemBuilder.

Referenced by UTAP::symbol().

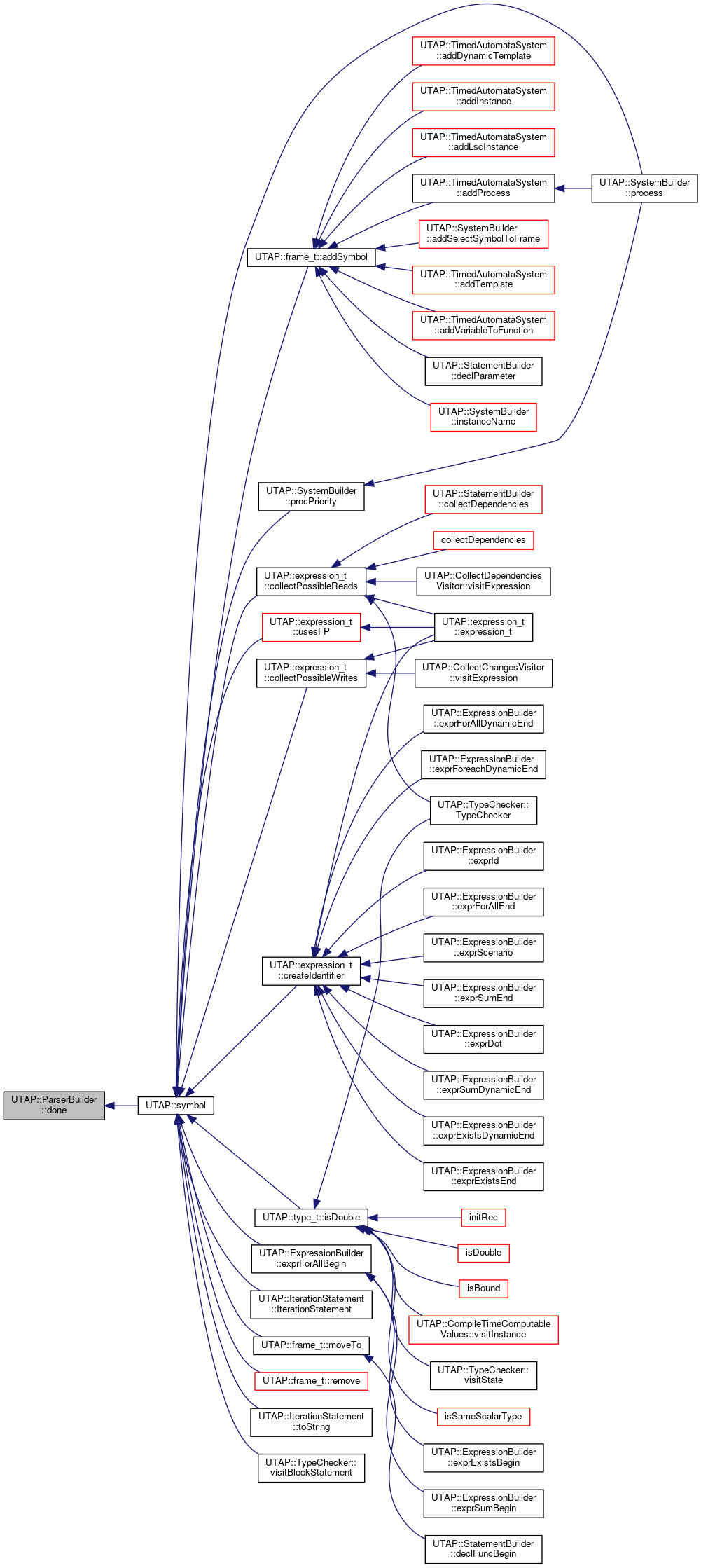

Here is the caller graph for this function:

◆ doWhileBegin()

virtual void UTAP::ParserBuilder::doWhileBegin ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ doWhileEnd()

virtual void UTAP::ParserBuilder::doWhileEnd ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ emptyStatement()

virtual void UTAP::ParserBuilder::emptyStatement ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ exprArray()

virtual void UTAP::ParserBuilder::exprArray ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprAssignment()

virtual void UTAP::ParserBuilder::exprAssignment ( Constants::kind_t op )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprBinary()

virtual void UTAP::ParserBuilder::exprBinary ( Constants::kind_t binaryop )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprBuiltinFunction1()

virtual void UTAP::ParserBuilder::exprBuiltinFunction1 ( Constants::kind_t )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprBuiltinFunction2()

virtual void UTAP::ParserBuilder::exprBuiltinFunction2 ( Constants::kind_t )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprBuiltinFunction3()

virtual void UTAP::ParserBuilder::exprBuiltinFunction3 ( Constants::kind_t )

pure virtual

Implemented in UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprCallBegin()

virtual void UTAP::ParserBuilder::exprCallBegin ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ exprCallEnd()

virtual void UTAP::ParserBuilder::exprCallEnd ( uint32_t n )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprComma()

virtual void UTAP::ParserBuilder::exprComma ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprDeadlock()

virtual void UTAP::ParserBuilder::exprDeadlock ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprDot()

virtual void UTAP::ParserBuilder::exprDot ( const char * )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprDouble()

virtual void UTAP::ParserBuilder::exprDouble ( double )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprDynamicProcessExpr()

virtual void UTAP::ParserBuilder::exprDynamicProcessExpr ( const char * )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ exprExistsBegin()

virtual void UTAP::ParserBuilder::exprExistsBegin ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprExistsDynamicBegin()

virtual void UTAP::ParserBuilder::exprExistsDynamicBegin	(	const char *	,
		const char *
	)

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprExistsDynamicEnd()

virtual void UTAP::ParserBuilder::exprExistsDynamicEnd ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprExistsEnd()

virtual void UTAP::ParserBuilder::exprExistsEnd ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprExit()

virtual void UTAP::ParserBuilder::exprExit ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprFalse()

virtual void UTAP::ParserBuilder::exprFalse ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprForAllBegin()

virtual void UTAP::ParserBuilder::exprForAllBegin ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprForAllDynamicBegin()

virtual void UTAP::ParserBuilder::exprForAllDynamicBegin	(	const char *	,
		const char *
	)

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprForAllDynamicEnd()

virtual void UTAP::ParserBuilder::exprForAllDynamicEnd ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprForAllEnd()

virtual void UTAP::ParserBuilder::exprForAllEnd ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprForeachDynamicBegin()

virtual void UTAP::ParserBuilder::exprForeachDynamicBegin	(	const char *	,
		const char *
	)

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprForeachDynamicEnd()

virtual void UTAP::ParserBuilder::exprForeachDynamicEnd ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprId()

virtual void UTAP::ParserBuilder::exprId ( const char * varName )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprInlineIf()

virtual void UTAP::ParserBuilder::exprInlineIf ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprMitlAtom()

virtual void UTAP::ParserBuilder::exprMitlAtom ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprMitlBox()

virtual void UTAP::ParserBuilder::exprMitlBox	(	int	,
		int
	)

pure virtual

Implemented in UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprMitlConj()

virtual void UTAP::ParserBuilder::exprMitlConj ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprMitlDiamond()

virtual void UTAP::ParserBuilder::exprMitlDiamond	(	int	,
		int
	)

pure virtual

Implemented in UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprMitlDisj()

virtual void UTAP::ParserBuilder::exprMitlDisj ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprMITLExistsDynamicBegin()

virtual void UTAP::ParserBuilder::exprMITLExistsDynamicBegin	(	const char *	,
		const char *
	)

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ exprMITLExistsDynamicEnd()

virtual void UTAP::ParserBuilder::exprMITLExistsDynamicEnd ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ exprMITLForAllDynamicBegin()

virtual void UTAP::ParserBuilder::exprMITLForAllDynamicBegin	(	const char *	,
		const char *
	)

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ exprMITLForAllDynamicEnd()

virtual void UTAP::ParserBuilder::exprMITLForAllDynamicEnd ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ exprMitlFormula()

virtual void UTAP::ParserBuilder::exprMitlFormula ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprMitlNext()

virtual void UTAP::ParserBuilder::exprMitlNext ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprMitlRelease()

virtual void UTAP::ParserBuilder::exprMitlRelease	(	int	,
		int
	)

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprMitlUntil()

virtual void UTAP::ParserBuilder::exprMitlUntil	(	int	,
		int
	)

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprNary()

virtual void UTAP::ParserBuilder::exprNary	(	Constants::kind_t	,
		uint32_t	num
	)

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprNat()

virtual void UTAP::ParserBuilder::exprNat ( int32_t )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprNumOf()

virtual void UTAP::ParserBuilder::exprNumOf ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprPostDecrement()

virtual void UTAP::ParserBuilder::exprPostDecrement ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprPostIncrement()

virtual void UTAP::ParserBuilder::exprPostIncrement ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprPreDecrement()

virtual void UTAP::ParserBuilder::exprPreDecrement ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprPreIncrement()

virtual void UTAP::ParserBuilder::exprPreIncrement ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprProbaCompare()

virtual void UTAP::ParserBuilder::exprProbaCompare	(	Constants::kind_t	pathQuant1,
		Constants::kind_t	pathQuant2
	)

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprProbaExpected()

virtual void UTAP::ParserBuilder::exprProbaExpected ( const char * aggregatingOp )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprProbaQualitative()

virtual void UTAP::ParserBuilder::exprProbaQualitative	(	Constants::kind_t	pathQuant,
		Constants::kind_t	compType,
		double	probBound
	)

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprProbaQuantitative()

virtual void UTAP::ParserBuilder::exprProbaQuantitative ( Constants::kind_t pathQuant )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprScenario()

virtual void UTAP::ParserBuilder::exprScenario ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprSimulate()

virtual void UTAP::ParserBuilder::exprSimulate	(	int	,
		bool	= `false`,
		int	= `0`
	)

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprSMCControl()

virtual void UTAP::ParserBuilder::exprSMCControl ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprSpawn()

virtual void UTAP::ParserBuilder::exprSpawn ( int )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprStatement()

virtual void UTAP::ParserBuilder::exprStatement ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ exprSumBegin()

virtual void UTAP::ParserBuilder::exprSumBegin ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprSumDynamicBegin()

virtual void UTAP::ParserBuilder::exprSumDynamicBegin	(	const char *	,
		const char *
	)

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprSumDynamicEnd()

virtual void UTAP::ParserBuilder::exprSumDynamicEnd ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::ExpressionBuilder.

◆ exprSumEnd()

virtual void UTAP::ParserBuilder::exprSumEnd ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprSync()

virtual void UTAP::ParserBuilder::exprSync ( Constants::synchronisation_t type )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::SystemBuilder.

◆ exprTernary()

virtual void UTAP::ParserBuilder::exprTernary	(	Constants::kind_t	ternaryop,
		bool	firstMissing = `false`
	)

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprTrue()

virtual void UTAP::ParserBuilder::exprTrue ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ exprUnary()

virtual void UTAP::ParserBuilder::exprUnary ( Constants::kind_t unaryop )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

◆ forBegin()

virtual void UTAP::ParserBuilder::forBegin ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ forEnd()

virtual void UTAP::ParserBuilder::forEnd ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ ganttDeclEnd()

virtual void UTAP::ParserBuilder::ganttDeclEnd ( )

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ ganttDeclSelect()

virtual void UTAP::ParserBuilder::ganttDeclSelect ( const char * id )

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ ganttDeclStart()

virtual void UTAP::ParserBuilder::ganttDeclStart ( const char * name )

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ ganttEntryEnd()

virtual void UTAP::ParserBuilder::ganttEntryEnd ( )

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ ganttEntrySelect()

virtual void UTAP::ParserBuilder::ganttEntrySelect ( const char * id )

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ ganttEntryStart()

virtual void UTAP::ParserBuilder::ganttEntryStart ( )

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ handleError() [1/2]

virtual void UTAP::ParserBuilder::handleError ( const std::string & )

pure virtual

Implemented in UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

Referenced by UTAP::ExpressionBuilder::exprDot(), handleError(), UTAP::symbol(), and utap_error().

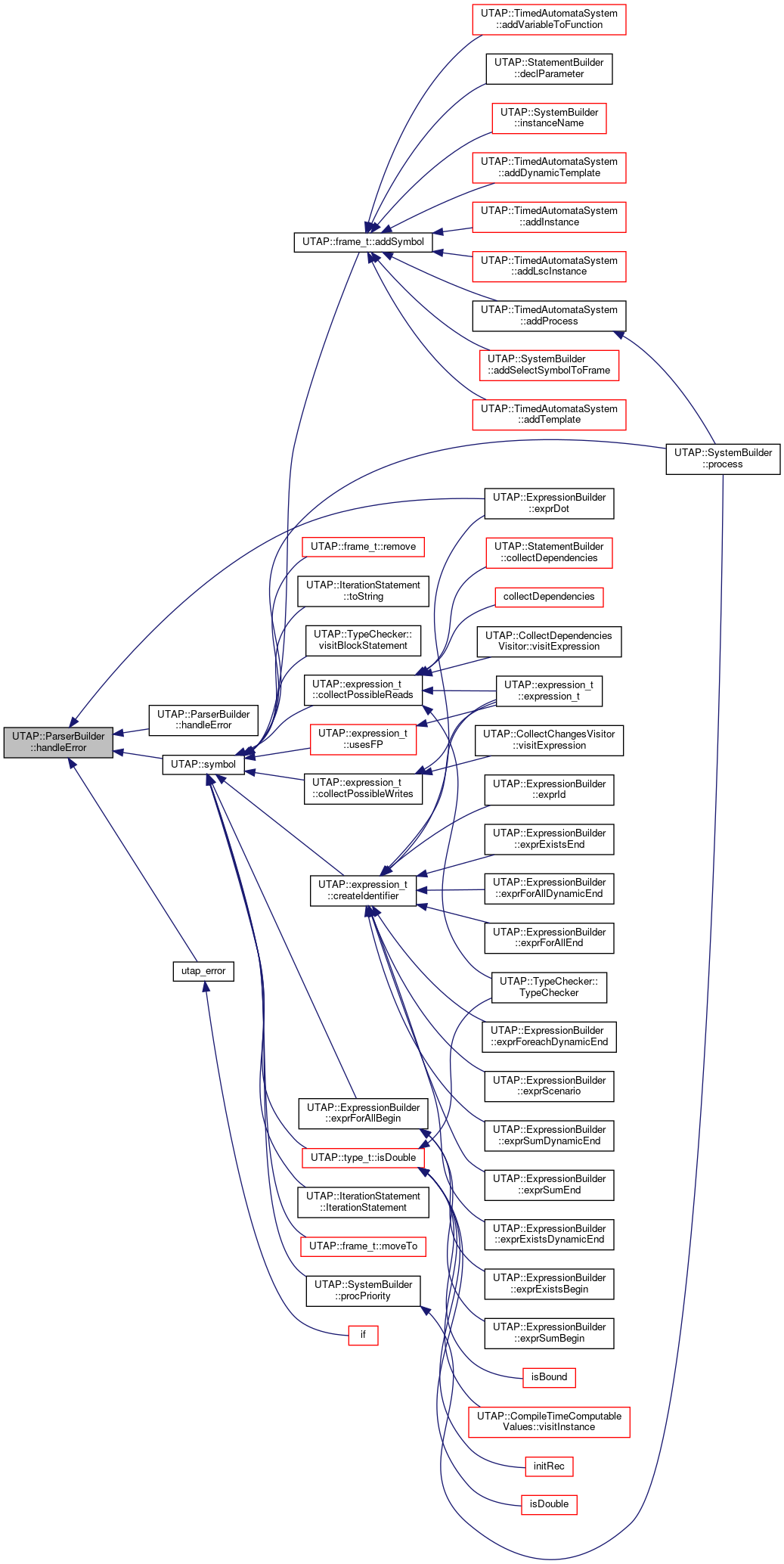

Here is the caller graph for this function:

◆ handleError() [2/2]

void ParserBuilder::handleError	(	const char *	msg,
			...
	)

Definition at line 45 of file abstractbuilder.cpp.

References handleError().

Here is the call graph for this function:

◆ handleExpect()

virtual void UTAP::ParserBuilder::handleExpect ( const char * text )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ handleWarning() [1/2]

virtual void UTAP::ParserBuilder::handleWarning ( const std::string & )

pure virtual

Implemented in UTAP::ExpressionBuilder, and UTAP::PrettyPrinter.

Referenced by handleWarning().

Here is the caller graph for this function:

◆ handleWarning() [2/2]

void ParserBuilder::handleWarning	(	const char *	msg,
			...
	)

Definition at line 34 of file abstractbuilder.cpp.

References handleWarning().

Here is the call graph for this function:

◆ hasPrechart()

virtual void UTAP::ParserBuilder::hasPrechart ( const bool pch )

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ ifBegin()

virtual void UTAP::ParserBuilder::ifBegin ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ ifCondition()

virtual void UTAP::ParserBuilder::ifCondition ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ ifEnd()

virtual void UTAP::ParserBuilder::ifEnd ( bool elsePart )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ ifThen()

virtual void UTAP::ParserBuilder::ifThen ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ incProcPriority()

virtual void UTAP::ParserBuilder::incProcPriority ( )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::SystemBuilder.

◆ instanceName()

virtual void UTAP::ParserBuilder::instanceName	(	const char *	name,
		bool	templ = `true`
	)

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ instanceNameBegin()

virtual void UTAP::ParserBuilder::instanceNameBegin ( const char * name )

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ instanceNameEnd()

virtual void UTAP::ParserBuilder::instanceNameEnd	(	const char *	name,
		size_t	arguments
	)

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ instantiationBegin()

virtual void UTAP::ParserBuilder::instantiationBegin	(	const char *	id,
		size_t	parameters,
		const char *	templ
	)

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::SystemBuilder.

◆ instantiationEnd()

virtual void UTAP::ParserBuilder::instantiationEnd	(	const char *	id,
		size_t	parameters,
		const char *	templ,
		size_t	arguments
	)

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::SystemBuilder.

◆ isType()

virtual bool UTAP::ParserBuilder::isType ( const char * )

pure virtual

Must return true if and only if name is registered in the symbol table as a named type, for instance, "int" or "bool" or a user defined type.

Implemented in UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

◆ iterationBegin()

virtual void UTAP::ParserBuilder::iterationBegin ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ iterationEnd()

virtual void UTAP::ParserBuilder::iterationEnd ( const char * name )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ parse()

virtual void UTAP::ParserBuilder::parse ( const char * )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ procBegin()

virtual void UTAP::ParserBuilder::procBegin	(	const char *	name,
		const bool	isTA = `true`,
		const std::string	type = `""`,
		const std::string	mode = `""`
	)

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ procBranchpoint()

virtual void UTAP::ParserBuilder::procBranchpoint ( const char * name )

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ procCondition() [1/2]

virtual void UTAP::ParserBuilder::procCondition	(	const std::vector< char *>	anchors,
		const int	loc,
		const bool	pch,
		const bool	hot
	)

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ procCondition() [2/2]

virtual void UTAP::ParserBuilder::procCondition ( )

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ procEdgeBegin()

virtual void UTAP::ParserBuilder::procEdgeBegin	(	const char *	from,
		const char *	to,
		const bool	control,
		const char *	actname = `""`
	)

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

Referenced by UTAP::symbol().

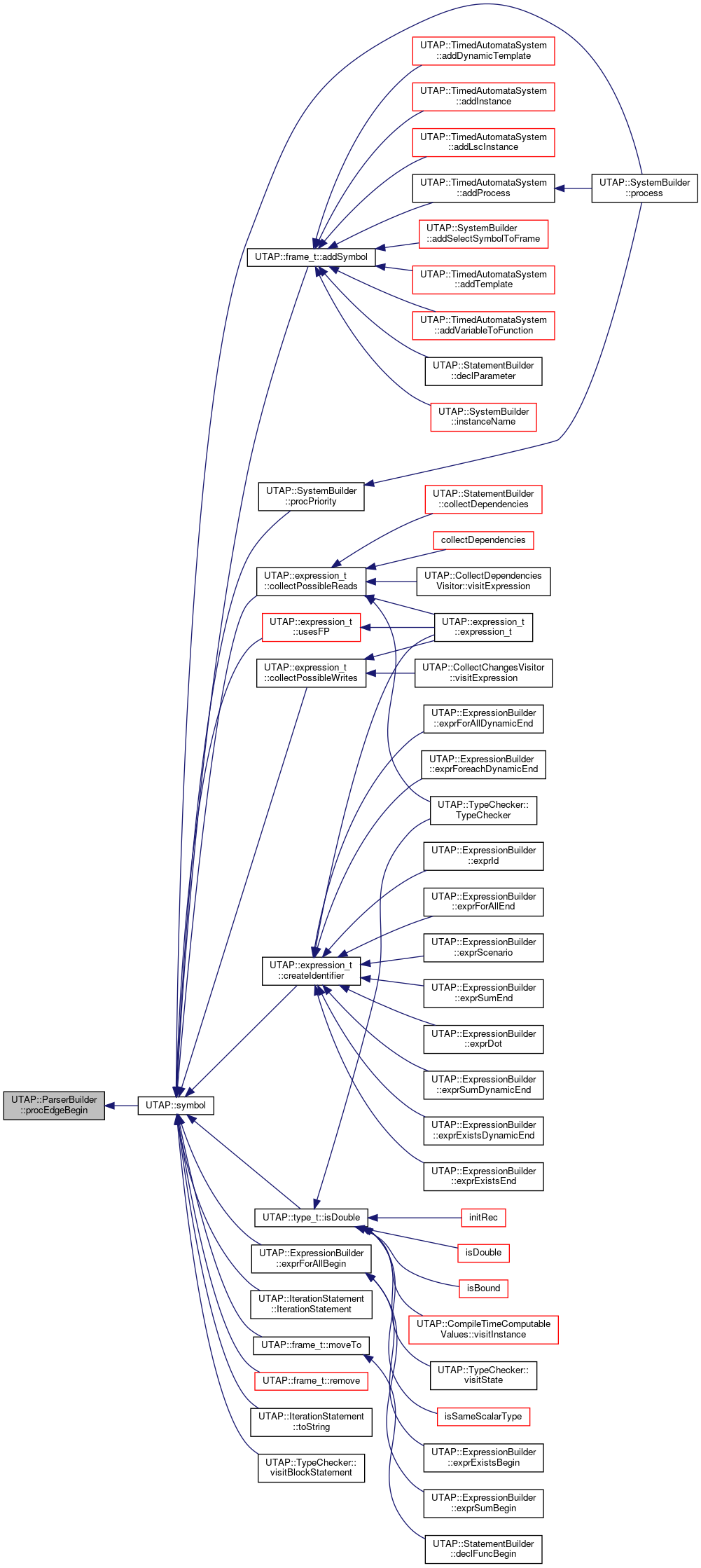

Here is the caller graph for this function:

◆ procEdgeEnd()

virtual void UTAP::ParserBuilder::procEdgeEnd	(	const char *	from,
		const char *	to
	)

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ procEnd()

virtual void UTAP::ParserBuilder::procEnd ( )

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ process()

virtual void UTAP::ParserBuilder::process ( const char * )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::SystemBuilder.

◆ processListEnd()

virtual void UTAP::ParserBuilder::processListEnd ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::SystemBuilder.

◆ procGuard()

virtual void UTAP::ParserBuilder::procGuard ( )

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

◆ procInstanceLine()

virtual void UTAP::ParserBuilder::procInstanceLine ( )

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ procLscUpdate() [1/2]

virtual void UTAP::ParserBuilder::procLscUpdate	(	const char *	anchor,
		const int	loc,
		const bool	pch
	)

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ procLscUpdate() [2/2]

virtual void UTAP::ParserBuilder::procLscUpdate ( )

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ procMessage() [1/2]

virtual void UTAP::ParserBuilder::procMessage	(	const char *	from,
		const char *	to,
		const int	loc,
		const bool	pch
	)

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ procMessage() [2/2]

virtual void UTAP::ParserBuilder::procMessage ( Constants::synchronisation_t type )

pure virtual

Implemented in UTAP::SystemBuilder, and UTAP::AbstractBuilder.

◆ procPriority()

virtual void UTAP::ParserBuilder::procPriority ( const char * )

pure virtual

Implemented in UTAP::AbstractBuilder, and UTAP::SystemBuilder.

◆ procProb()

virtual void UTAP::ParserBuilder::procProb ( )

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

◆ procSelect()

virtual void UTAP::ParserBuilder::procSelect ( const char * id )

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

◆ procState()

virtual void UTAP::ParserBuilder::procState	(	const char *	name,
		bool	hasInvariant,
		bool	hasER
	)

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ procStateCommit()

virtual void UTAP::ParserBuilder::procStateCommit ( const char * name )

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ procStateInit()

virtual void UTAP::ParserBuilder::procStateInit ( const char * name )

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ procStateUrgent()

virtual void UTAP::ParserBuilder::procStateUrgent ( const char * name )

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ procSync()

virtual void UTAP::ParserBuilder::procSync ( Constants::synchronisation_t type )

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

◆ procUpdate()

virtual void UTAP::ParserBuilder::procUpdate ( )

pure virtual

Implemented in UTAP::SystemBuilder, UTAP::AbstractBuilder, and UTAP::PrettyPrinter.

◆ property()

virtual void UTAP::ParserBuilder::property ( )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ queryBegin()

virtual void UTAP::ParserBuilder::queryBegin ( )

pure virtual

Verification queries.

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::SystemBuilder.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ queryComment()

virtual void UTAP::ParserBuilder::queryComment ( const char * comment )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::SystemBuilder.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ queryEnd()

virtual void UTAP::ParserBuilder::queryEnd ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::SystemBuilder.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ queryFormula()

virtual void UTAP::ParserBuilder::queryFormula	(	const char *	formula,
		const char *	location
	)

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::SystemBuilder.

Referenced by UTAP::symbol().

Here is the caller graph for this function:

◆ returnStatement()

virtual void UTAP::ParserBuilder::returnStatement ( bool )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ scenario()

virtual void UTAP::ParserBuilder::scenario ( const char * )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ setPosition()

virtual void UTAP::ParserBuilder::setPosition	(	uint32_t	a,
		uint32_t	b
	)

pure virtual

Sets the current position.

The current position indicates where in the input file the current productions can be found.

Implemented in UTAP::AbstractBuilder.

Referenced by UTAP::PositionTracker::increment(), and utap_error().

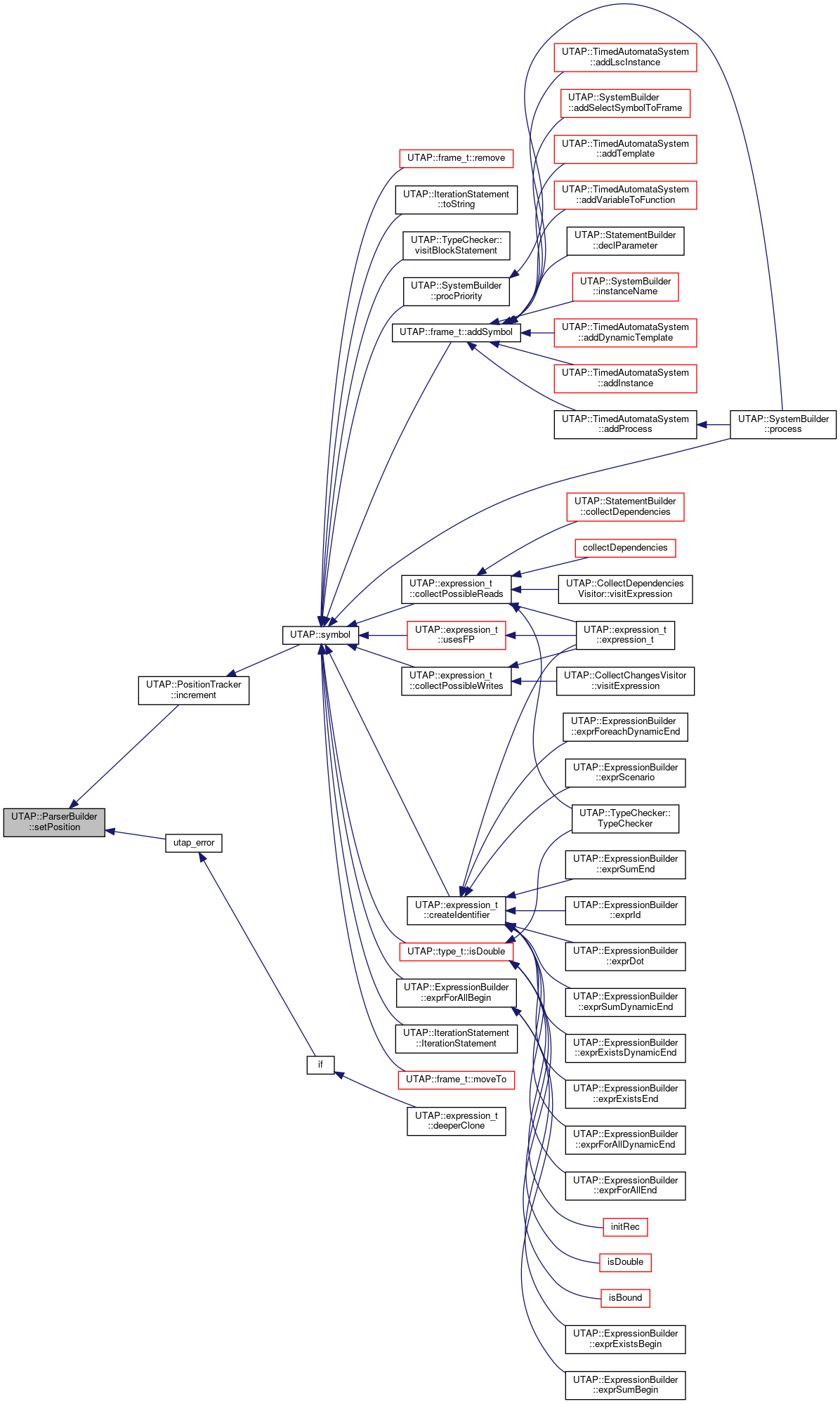

Here is the caller graph for this function:

◆ structField()

virtual void UTAP::ParserBuilder::structField ( const char * name )

pure virtual

Called to declare a field of a structure.

The type of the field has been reported using a typeXXX method prior to the call of structField(). In case of array fields, 'dim' expressions indicating the array sizes have been reported.

Implemented in UTAP::PrettyPrinter, UTAP::AbstractBuilder, and UTAP::StatementBuilder.

◆ switchBegin()

virtual void UTAP::ParserBuilder::switchBegin ( )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ switchEnd()

virtual void UTAP::ParserBuilder::switchEnd ( )

pure virtual

Implemented in UTAP::AbstractBuilder.

◆ typeArrayOfSize()

virtual void UTAP::ParserBuilder::typeArrayOfSize ( size_t )

pure virtual

Called to create an array type.

The size of the array was previously pushed as an expression.

Implemented in UTAP::PrettyPrinter, UTAP::AbstractBuilder, and UTAP::StatementBuilder.

◆ typeArrayOfType()

virtual void UTAP::ParserBuilder::typeArrayOfType ( size_t )

pure virtual

Called to create an array type.

The size of the array was previously pushed as a type.

Implemented in UTAP::PrettyPrinter, UTAP::AbstractBuilder, and UTAP::StatementBuilder.

◆ typeBool()

virtual void UTAP::ParserBuilder::typeBool ( PREFIX )

pure virtual

Called whenever a boolean type is parsed.

Implemented in UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

◆ typeBoundedInt()

virtual void UTAP::ParserBuilder::typeBoundedInt ( PREFIX )

pure virtual

Called whenever an integer type with a range is parsed.

Expressions for the lower and upper have been pushed before.

Implemented in UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

◆ typeChannel()

virtual void UTAP::ParserBuilder::typeChannel ( PREFIX )

pure virtual

Called whenever a channel type is parsed.

Implemented in UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

◆ typeClock()

virtual void UTAP::ParserBuilder::typeClock ( PREFIX )

pure virtual

Called whenever a clock type is parsed.

Implemented in UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

◆ typeDouble()

virtual void UTAP::ParserBuilder::typeDouble ( PREFIX )

pure virtual

Called whenever a double type is parsed.

Implemented in UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

◆ typeDuplicate()

virtual void UTAP::ParserBuilder::typeDuplicate ( )

pure virtual

Duplicate type at the top of the type stack.

Implemented in UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

◆ typeInt()

virtual void UTAP::ParserBuilder::typeInt ( PREFIX )

pure virtual

Called whenever an integer type is parsed.

Implemented in UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

◆ typeName()

virtual void UTAP::ParserBuilder::typeName	(	PREFIX	,
		const char *	name
	)

pure virtual

Called when a type name has been parsed.

Prefix indicates whether the type named was prefixed (e.g. with 'const').

Implemented in UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

◆ typePop()

virtual void UTAP::ParserBuilder::typePop ( )

pure virtual

Pop type at the topof the type stack.

Implemented in UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

◆ typeScalar()

virtual void UTAP::ParserBuilder::typeScalar ( PREFIX )

pure virtual

Called whenever a scalar type is parsed.

The size of the scalar set was pushed as an expression before.

Implemented in UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

◆ typeStruct()

virtual void UTAP::ParserBuilder::typeStruct	(	PREFIX	,
		uint32_t	fields
	)

pure virtual

Called when a struct-type has been parsed.

Prior to the call 'fields' fields must have been declared using the structXXX methods.

Implemented in UTAP::PrettyPrinter, UTAP::AbstractBuilder, and UTAP::StatementBuilder.

◆ typeVoid()

virtual void UTAP::ParserBuilder::typeVoid ( )

pure virtual

Called whenever a void type is parsed.

Implemented in UTAP::ExpressionBuilder, UTAP::PrettyPrinter, and UTAP::AbstractBuilder.

◆ whileBegin()

virtual void UTAP::ParserBuilder::whileBegin ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

◆ whileEnd()

virtual void UTAP::ParserBuilder::whileEnd ( )

pure virtual

Implemented in UTAP::AbstractBuilder, UTAP::PrettyPrinter, and UTAP::StatementBuilder.

Member Data Documentation

◆ lscTemplateNames

std::vector<std::string> UTAP::ParserBuilder::lscTemplateNames

Definition at line 94 of file builder.h.

Referenced by UTAP::SystemBuilder::procBegin(), and UTAP::symbol().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Public Attributes

Detailed Description

Expressions

Declarations

Member Enumeration Documentation

◆ PREFIX

Constructor & Destructor Documentation

◆ ~ParserBuilder()

Member Function Documentation

◆ addChanPriority()

◆ addPosition()

◆ afterUpdate()

◆ assertStatement()

◆ beforeUpdate()

◆ beginChanPriority()

◆ blockBegin()

◆ blockEnd()

◆ breakStatement()

◆ caseBegin()

◆ caseEnd()

◆ continueStatement()

◆ declDynamicTemplate()

◆ declFieldInit()

◆ declFuncBegin()

◆ declFuncEnd()

◆ declInitialiserList()

◆ declIO()

◆ declParameter()

◆ declProgress()

◆ declTypeDef()

◆ declVar()

◆ defaultBegin()

◆ defaultChanPriority()

◆ defaultEnd()

◆ done()

◆ doWhileBegin()

◆ doWhileEnd()

◆ emptyStatement()

◆ exprArray()

◆ exprAssignment()

◆ exprBinary()

◆ exprBuiltinFunction1()

◆ exprBuiltinFunction2()

◆ exprBuiltinFunction3()

◆ exprCallBegin()

◆ exprCallEnd()

◆ exprComma()

◆ exprDeadlock()

◆ exprDot()

◆ exprDouble()

◆ exprDynamicProcessExpr()

◆ exprExistsBegin()

◆ exprExistsDynamicBegin()

◆ exprExistsDynamicEnd()

◆ exprExistsEnd()

◆ exprExit()

◆ exprFalse()

◆ exprForAllBegin()

◆ exprForAllDynamicBegin()

◆ exprForAllDynamicEnd()

◆ exprForAllEnd()

◆ exprForeachDynamicBegin()

◆ exprForeachDynamicEnd()

◆ exprId()

◆ exprInlineIf()

◆ exprMitlAtom()

◆ exprMitlBox()

◆ exprMitlConj()

◆ exprMitlDiamond()

◆ exprMitlDisj()

◆ exprMITLExistsDynamicBegin()

◆ exprMITLExistsDynamicEnd()

◆ exprMITLForAllDynamicBegin()

◆ exprMITLForAllDynamicEnd()

◆ exprMitlFormula()

◆ exprMitlNext()

◆ exprMitlRelease()

◆ exprMitlUntil()
