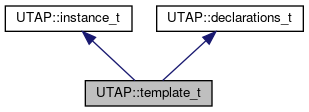

Inheritance diagram for UTAP::template_t:

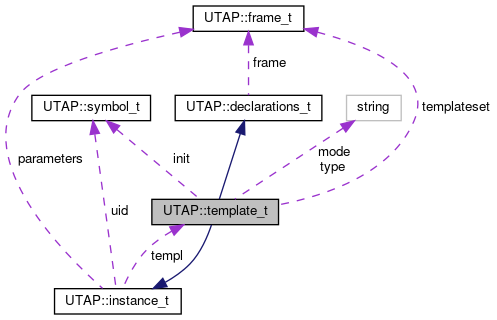

Collaboration diagram for UTAP::template_t:

[legend]

Public Member Functions
int	addDynamicEval (expression_t t)

std::vector< expression_t > &	getDynamicEval ()

state_t &	addLocation (const std::string &, expression_t inv, expression_t er)
	Add another location to template. More...

branchpoint_t &	addBranchpoint (const std::string &)
	Add another branchpoint to template. More...

edge_t &	addEdge (symbol_t src, symbol_t dst, bool type, const std::string &actname)
	Add edge to template. More...

instanceLine_t &	addInstanceLine ()
	Add another instance line to template. More...

message_t &	addMessage (symbol_t src, symbol_t dst, int loc, bool pch)
	Add message to template. More...

condition_t &	addCondition (std::vector< symbol_t > anchors, int loc, bool pch, bool isHot)
	Add condition to template. More...

update_t &	addUpdate (symbol_t anchor, int loc, bool pch)
	Add update to template. More...

bool	isInvariant ()
	return true if the LSC is of invariant mode More...

const std::vector< simregion_t >	getSimregions ()
	returns the simregions of an LSC scenario. More...

bool	getCondition (instanceLine_t instance, int y, condition_t &simCondition)
	gets the condition on the given instance, at y location, returns false if there isn't any More...

bool	getUpdate (instanceLine_t instance, int y, update_t &simUpdate)
	gets the update on the given instance at y location, returns false if there isn't any More...

bool	getUpdate (const std::vector< instanceLine_t > &instances, int y, update_t &simUpdate)

Public Member Functions inherited from UTAP::instance_t
std::string	writeMapping () const

std::string	writeParameters () const

std::string	writeArguments () const

Public Member Functions inherited from UTAP::declarations_t
bool	addFunction (type_t type, const std::string &, function_t *&)
	Add function declaration. More...

std::string	toString (bool global=false) const
	The following methods are used to write the declarations in an XML file. More...

std::string	getConstants () const

std::string	getTypeDefinitions () const

std::string	getVariables (bool global) const

std::string	getFunctions () const

Public Attributes
symbol_t	init
	The initial location. More...

frame_t	templateset
	Template set decls. More...

std::deque< state_t >	states
	Locations. More...

std::deque< branchpoint_t >	branchpoints
	Branchpoints. More...

std::deque< edge_t >	edges
	Edges. More...

std::vector< expression_t >	dynamicEvals

bool	isTA

std::deque< instanceLine_t >	instances
	Instance Lines. More...

std::deque< message_t >	messages
	Messages. More...

std::deque< update_t >	updates
	Updates. More...

std::deque< condition_t >	conditions
	Conditions. More...

std::string	type

std::string	mode

bool	hasPrechart

bool	dynamic

int	dynindex

bool	isDefined

Public Attributes inherited from UTAP::instance_t
symbol_t	uid
	The name. More...

frame_t	parameters
	The parameters. More...

std::map< symbol_t, expression_t >	mapping
	The arguments. More...

size_t	arguments

size_t	unbound

struct template_t *	templ

std::set< symbol_t >	restricted
	Restricted variables. More...

Public Attributes inherited from UTAP::declarations_t
frame_t	frame

std::list< variable_t >	variables
	Variables. More...

std::list< function_t >	functions
	Functions. More...

std::list< progress_t >	progress
	Progress measures. More...

std::list< iodecl_t >	iodecl

std::list< gantt_t >	ganttChart

Detailed Description

Definition at line 354 of file system.h.

Member Function Documentation

◆ addBranchpoint()

branchpoint_t & template_t::addBranchpoint ( const std::string & )

Add another branchpoint to template.

Definition at line 308 of file system.cpp.

References UTAP::branchpoint_t::bpNr, UTAP::Constants::BRANCHPOINT, UTAP::type_t::createPrimitive(), and UTAP::branchpoint_t::uid.

Referenced by UTAP::SystemBuilder::procBranchpoint().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addCondition()

condition_t & template_t::addCondition	(	std::vector< symbol_t >	anchors,
		int	loc,
		bool	pch,
		bool	isHot
	)

Add condition to template.

Definition at line 398 of file system.cpp.

References UTAP::condition_t::nr.

Referenced by UTAP::SystemBuilder::procMessage().

Here is the caller graph for this function:

◆ addDynamicEval()

int UTAP::template_t::addDynamicEval ( expression_t t )

inline

Definition at line 364 of file system.h.

◆ addEdge()

edge_t & template_t::addEdge	(	symbol_t	src,
		symbol_t	dst,
		bool	type,
		const std::string &	actname
	)

Add edge to template.

Definition at line 325 of file system.cpp.

References edges, UTAP::symbol_t::getData(), UTAP::symbol_t::getType(), and UTAP::type_t::isLocation().

Referenced by UTAP::SystemBuilder::procEdgeBegin().

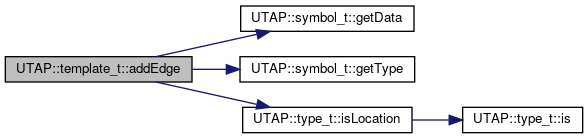

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addInstanceLine()

instanceLine_t & template_t::addInstanceLine ( )

Add another instance line to template.

Definition at line 357 of file system.cpp.

References UTAP::instanceLine_t::instanceNr.

Referenced by UTAP::SystemBuilder::procInstanceLine().

Here is the caller graph for this function:

◆ addLocation()

state_t & template_t::addLocation	(	const std::string &	,
		expression_t	inv,
		expression_t	er
	)

Add another location to template.

Definition at line 287 of file system.cpp.

References UTAP::type_t::createPrimitive(), UTAP::state_t::exponentialRate, UTAP::state_t::invariant, UTAP::Constants::LOCATION, UTAP::state_t::locNr, and UTAP::state_t::uid.

Referenced by UTAP::SystemBuilder::procState().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addMessage()

message_t & template_t::addMessage	(	symbol_t	src,
		symbol_t	dst,
		int	loc,
		bool	pch
	)

Add message to template.

Definition at line 374 of file system.cpp.

References UTAP::symbol_t::getData(), and UTAP::message_t::nr.

Referenced by UTAP::SystemBuilder::procMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addUpdate()

update_t & template_t::addUpdate	(	symbol_t	anchor,
		int	loc,
		bool	pch
	)

Add update to template.

Definition at line 387 of file system.cpp.

References UTAP::symbol_t::getData(), and UTAP::update_t::nr.

Referenced by UTAP::SystemBuilder::procLscUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getCondition()

bool template_t::getCondition	(	instanceLine_t *	instance,
		int	y,
		condition_t *&	simCondition
	)

gets the condition on the given instance, at y location, returns false if there isn't any

Definition at line 594 of file system.cpp.

References UTAP::condition_t::anchors, UTAP::instanceLine_t::instanceNr, and UTAP::condition_t::location.

◆ getDynamicEval()

std::vector<expression_t>& UTAP::template_t::getDynamicEval ( )

inline

Definition at line 369 of file system.h.

◆ getSimregions()

const vector< simregion_t > template_t::getSimregions ( )

returns the simregions of an LSC scenario.

A simregion is a simultaneous region containing 1 or 0 message, 1 or 0 update and 1 or 0 condition, at the same location. a message, update or condition must be in only one simregion.

we copy the messages, conditions and updates from the scenario

iterates over messages

we give priority to the condition on the target, if there is also one in the source, it must be part of another simregion

iterates over remaining conditions

iterates over remaining updates

Definition at line 460 of file system.cpp.

References UTAP::condition_t::anchors, UTAP::simregion_t::condition, conditions_nr(), UTAP::message_t::dst, UTAP::message_t::location, UTAP::condition_t::location, UTAP::simregion_t::message, messages_nr(), UTAP::condition_t::nr, UTAP::update_t::nr, UTAP::simregion_t::nr, UTAP::simregion_t::setCondition(), UTAP::simregion_t::setMessage(), UTAP::simregion_t::setUpdate(), UTAP::message_t::src, UTAP::simregion_t::update, and updates_nr().

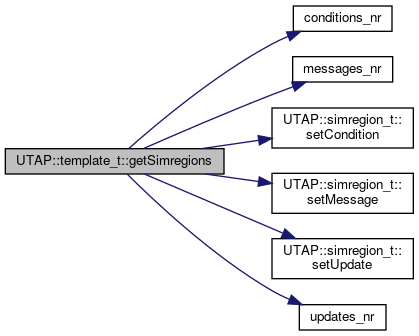

Here is the call graph for this function:

◆ getUpdate() [1/2]

bool template_t::getUpdate	(	instanceLine_t *	instance,
		int	y,
		update_t *&	simUpdate
	)

gets the update on the given instance at y location, returns false if there isn't any

Definition at line 623 of file system.cpp.

References UTAP::update_t::anchor, UTAP::instanceLine_t::instanceNr, and UTAP::update_t::location.

◆ getUpdate() [2/2]

bool UTAP::template_t::getUpdate	(	const std::vector< instanceLine_t *> &	instances,
		int	y,
		update_t *&	simUpdate
	)

◆ isInvariant()

bool template_t::isInvariant ( )

return true if the LSC is of invariant mode

Definition at line 890 of file system.cpp.

Member Data Documentation

◆ branchpoints

std::deque<branchpoint_t> UTAP::template_t::branchpoints

Branchpoints.

Definition at line 359 of file system.h.

◆ conditions

std::deque<condition_t> UTAP::template_t::conditions

Conditions.

Definition at line 384 of file system.h.

◆ dynamic

bool UTAP::template_t::dynamic

Definition at line 388 of file system.h.

Referenced by UTAP::TypeChecker::checkExpression().

◆ dynamicEvals

std::vector<expression_t> UTAP::template_t::dynamicEvals

Definition at line 361 of file system.h.

◆ dynindex

int UTAP::template_t::dynindex

Definition at line 389 of file system.h.

◆ edges

std::deque<edge_t> UTAP::template_t::edges

Edges.

Definition at line 360 of file system.h.

Referenced by UTAP::DistanceCalculator::addProcessNeedle(), UTAP::XMLWriter::taTempl(), and UTAP::SignalFlow::visitProcess().

◆ hasPrechart

bool UTAP::template_t::hasPrechart

Definition at line 387 of file system.h.

Referenced by UTAP::SystemBuilder::hasPrechart().

◆ init

symbol_t UTAP::template_t::init

The initial location.

Definition at line 356 of file system.h.

Referenced by UTAP::XMLWriter::init(), and UTAP::SystemBuilder::procStateInit().

◆ instances

std::deque<instanceLine_t> UTAP::template_t::instances

Instance Lines.

Definition at line 381 of file system.h.

◆ isDefined

bool UTAP::template_t::isDefined

Definition at line 390 of file system.h.

Referenced by UTAP::TypeChecker::checkExpression(), UTAP::SystemBuilder::procBegin(), and UTAP::ExpressionBuilder::pushDynamicFrameOf().

◆ isTA

bool UTAP::template_t::isTA

Definition at line 362 of file system.h.

Referenced by UTAP::XMLWriter::taTempl().

◆ messages

std::deque<message_t> UTAP::template_t::messages

Messages.

Definition at line 382 of file system.h.

◆ mode

std::string UTAP::template_t::mode

Definition at line 386 of file system.h.

◆ states

std::deque<state_t> UTAP::template_t::states

Locations.

Definition at line 358 of file system.h.

Referenced by UTAP::XMLWriter::taTempl(), and UTAP::SignalFlow::visitProcess().

◆ templateset

frame_t UTAP::template_t::templateset

Template set decls.

Definition at line 357 of file system.h.

◆ type

std::string UTAP::template_t::type

Definition at line 385 of file system.h.

◆ updates

std::deque<update_t> UTAP::template_t::updates

Updates.

Definition at line 383 of file system.h.
