A reference to a frame. More...

#include <symbols.h>

Public Member Functions
	frame_t ()
	Default constructor. More...

	frame_t (const frame_t &)
	Copy constructor. More...

	~frame_t ()
	Destructor. More...

const frame_t &	operator= (const frame_t &)
	Assignment operator. More...

bool	operator== (const frame_t &) const
	Equality operator. More...

bool	operator!= (const frame_t &) const
	Inequality operator. More...

uint32_t	getSize () const
	Returns the number of symbols in this frame. More...

symbol_t	getSymbol (int32_t)
	Returns the Nth symbol in this frame. More...

int32_t	getIndexOf (const std::string &name) const
	Returns the index of the symbol with the given name. More...

int32_t	getIndexOf (symbol_t) const
	Returns the index of a symbol or -1 if not present. More...

symbol_t	operator[] (int32_t)
	Returns the Nth symbol in this frame. More...

const symbol_t	operator[] (int32_t) const
	Returns the Nth symbol in this frame. More...

symbol_t	addSymbol (const std::string &name, type_t, void *user=NULL)
	Adds a symbol of the given name and type to the frame. More...

void	add (symbol_t)
	Add all symbols from the given frame. More...

void	add (frame_t)
	Add all symbols from the given frame. More...

void	moveTo (frame_t)
	Move all symbols from this to a given one (leaving this empty). More...

void	remove (symbol_t s)
	removes the given symbol More...

bool	resolve (const std::string &name, symbol_t &symbol)
	Resolves a name in this frame or a parent frame. More...

frame_t	getParent ()
	Returns the parent frame. More...

bool	hasParent () const
	Returns true if this frame has a parent. More...

std::string	toString ()

bool	empty ()

Static Public Member Functions
static frame_t	createFrame ()
	Creates and returns a new root-frame. More...

static frame_t	createFrame (const frame_t &parent)
	Creates and returns a new sub-frame. More...

Protected Member Functions
	frame_t (void *)

Friends
class	symbol_t

Detailed Description

A reference to a frame.

A frame is an ordered collection of symbols (see also symbol_t). Frames can only be accessed via an instance of frame_t. Internally, frames are reference counted and do not need to be deallocated manually.

A frame can either be a root-frame or a sub-frame. Sub-frames have a parent frame; root frames do not. When a symbol name cannot be resolved in the current frame, it is resolved recursively in the parent frame.

Frames are constructed using one of the static factory methods of frame_t.

In order to avoid cyclic references no counted reference to the parent frame is maintained. Hence, the existence of the parent frame must be ensured by other means throughout the lifetime of the sub-frame.

Definition at line 183 of file symbols.h.

Constructor & Destructor Documentation

◆ frame_t() [1/3]

frame_t::frame_t ( void * p )

protected

Definition at line 265 of file symbols.cpp.

◆ frame_t() [2/3]

frame_t::frame_t ( )

Default constructor.

Definition at line 260 of file symbols.cpp.

◆ frame_t() [3/3]

frame_t::frame_t ( const frame_t & frame )

Copy constructor.

Definition at line 275 of file symbols.cpp.

◆ ~frame_t()

frame_t::~frame_t ( )

Destructor.

Definition at line 285 of file symbols.cpp.

Member Function Documentation

◆ add() [1/2]

void frame_t::add ( symbol_t symbol )

Add all symbols from the given frame.

Add symbol.

Notice that the symbol will be in two frames at the same time, but the symbol will only "point back" to the first frame it was added to.

Definition at line 367 of file symbols.cpp.

References UTAP::symbol_t::getName().

Referenced by UTAP::TimedAutomataSystem::addDynamicTemplate(), UTAP::TimedAutomataSystem::addInstance(), UTAP::TimedAutomataSystem::addLscInstance(), UTAP::instanceLine_t::addParameters(), UTAP::TimedAutomataSystem::addTemplate(), UTAP::TimedAutomataSystem::copyVariablesFromTo(), UTAP::SystemBuilder::instanceNameBegin(), UTAP::SystemBuilder::instantiationBegin(), and moveTo().

Here is the call graph for this function:

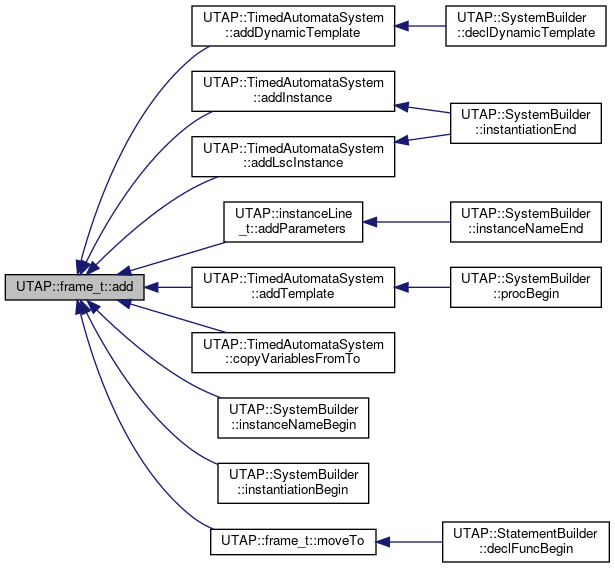

Here is the caller graph for this function:

◆ add() [2/2]

void frame_t::add ( frame_t frame )

Add all symbols from the given frame.

Add all symbols in the given frame.

Notice that the symbols will be in two frames at the same time, but the symbol will only "point back" to the first frame it was added to.

Definition at line 380 of file symbols.cpp.

References getSize().

Here is the call graph for this function:

◆ addSymbol()

symbol_t frame_t::addSymbol	(	const std::string &	name,
		type_t	,
		void *	user = `NULL`
	)

Adds a symbol of the given name and type to the frame.

Definition at line 352 of file symbols.cpp.

References UTAP::symbol_t::getName(), and UTAP::symbol().

Referenced by UTAP::TimedAutomataSystem::addDynamicTemplate(), UTAP::TimedAutomataSystem::addInstance(), UTAP::TimedAutomataSystem::addLscInstance(), UTAP::TimedAutomataSystem::addProcess(), UTAP::SystemBuilder::addSelectSymbolToFrame(), UTAP::TimedAutomataSystem::addTemplate(), UTAP::TimedAutomataSystem::addVariableToFunction(), UTAP::StatementBuilder::declParameter(), and UTAP::SystemBuilder::instanceName().

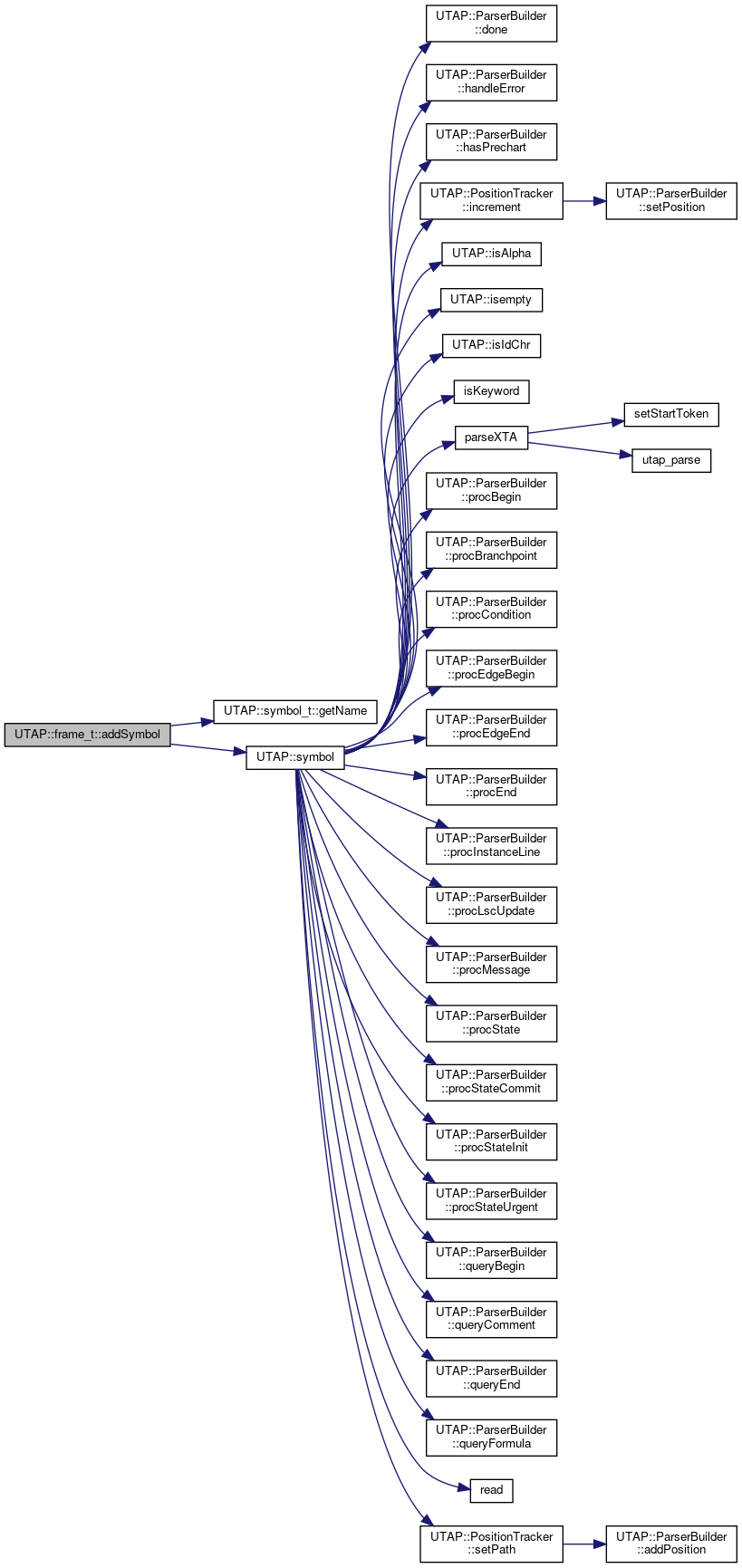

Here is the call graph for this function:

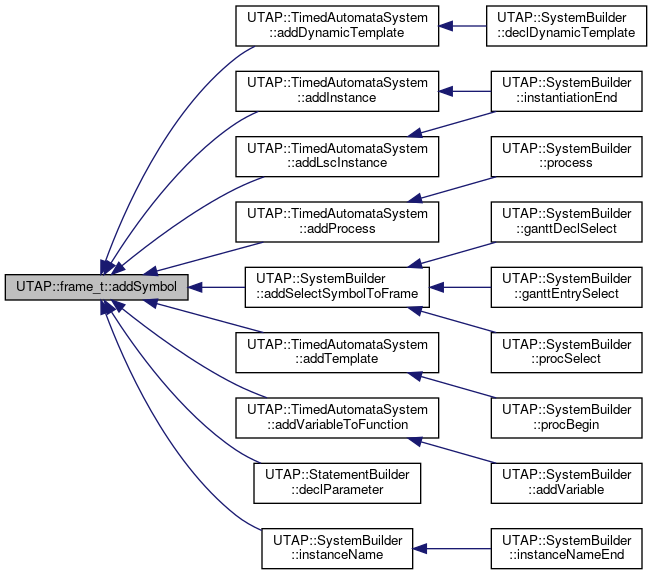

Here is the caller graph for this function:

◆ createFrame() [1/2]

frame_t frame_t::createFrame ( )

static

Creates and returns a new root-frame.

Definition at line 474 of file symbols.cpp.

References hasParent().

Referenced by UTAP::TimedAutomataSystem::addDynamicTemplate(), UTAP::TimedAutomataSystem::addTemplate(), UTAP::StatementBuilder::blockBegin(), UTAP::SystemBuilder::declDynamicTemplate(), UTAP::StatementBuilder::declFuncBegin(), UTAP::ExpressionBuilder::exprExistsDynamicBegin(), UTAP::ExpressionBuilder::exprForAllBegin(), UTAP::ExpressionBuilder::exprForAllDynamicBegin(), UTAP::ExpressionBuilder::exprForeachDynamicBegin(), UTAP::ExpressionBuilder::exprSumDynamicBegin(), UTAP::SystemBuilder::ganttDeclStart(), UTAP::SystemBuilder::ganttEntryStart(), UTAP::SystemBuilder::instanceNameBegin(), UTAP::SystemBuilder::instantiationBegin(), UTAP::StatementBuilder::iterationBegin(), UTAP::SystemBuilder::procBegin(), UTAP::SystemBuilder::procEdgeBegin(), UTAP::StatementBuilder::StatementBuilder(), and UTAP::TimedAutomataSystem::TimedAutomataSystem().

Here is the call graph for this function:

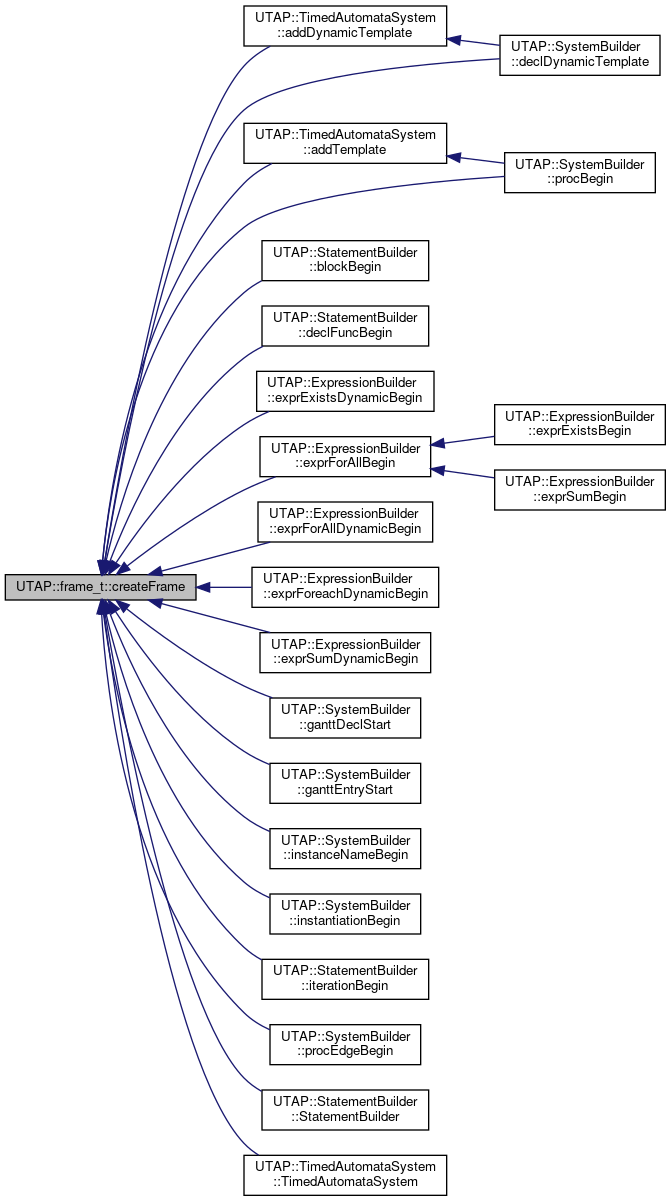

Here is the caller graph for this function:

◆ createFrame() [2/2]

frame_t frame_t::createFrame ( const frame_t & parent )

static

Creates and returns a new sub-frame.

Definition at line 484 of file symbols.cpp.

References hasParent().

Here is the call graph for this function:

◆ empty()

bool UTAP::frame_t::empty ( )

◆ getIndexOf() [1/2]

int32_t UTAP::frame_t::getIndexOf ( const std::string & name ) const

Returns the index of the symbol with the given name.

Referenced by UTAP::TimedAutomataSystem::addVariableToFunction(), UTAP::SignalFlow::checkParams(), and remove().

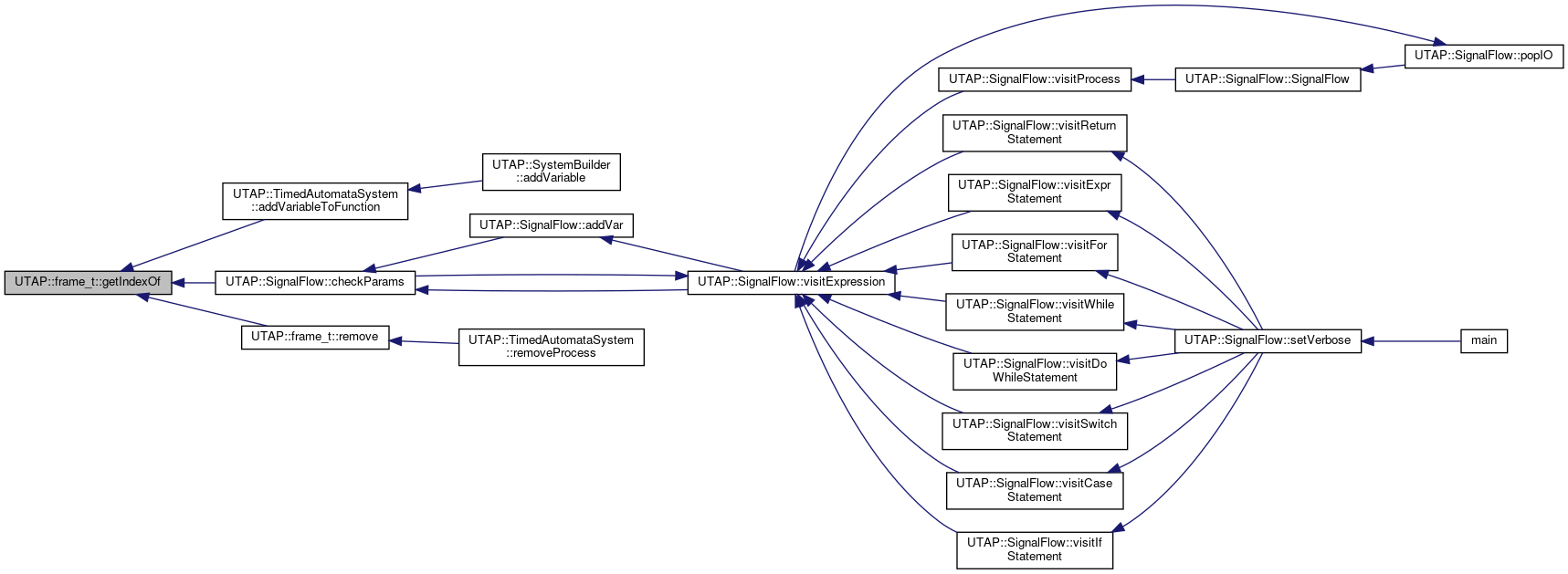

Here is the caller graph for this function:

◆ getIndexOf() [2/2]

int32_t frame_t::getIndexOf ( symbol_t symbol ) const

Returns the index of a symbol or -1 if not present.

Definition at line 427 of file symbols.cpp.

◆ getParent()

frame_t frame_t::getParent ( )

Returns the parent frame.

Definition at line 458 of file symbols.cpp.

◆ getSize()

uint32_t frame_t::getSize ( ) const

Returns the number of symbols in this frame.

Definition at line 328 of file symbols.cpp.

Referenced by UTAP::TimedAutomataSystem::accept(), add(), UTAP::TimedAutomataSystem::addDynamicTemplate(), UTAP::TimedAutomataSystem::addInstance(), UTAP::TimedAutomataSystem::addLscInstance(), UTAP::instanceLine_t::addParameters(), UTAP::TimedAutomataSystem::addTemplate(), UTAP::TypeChecker::checkExpression(), UTAP::type_t::createInstance(), UTAP::type_t::createLscInstance(), UTAP::type_t::createProcess(), UTAP::SystemBuilder::declDynamicTemplate(), UTAP::StatementBuilder::declFuncBegin(), UTAP::SystemBuilder::instanceName(), UTAP::SystemBuilder::instantiationEnd(), UTAP::XMLWriter::labels(), operator<<(), UTAP::SystemBuilder::procBegin(), visit(), UTAP::TypeChecker::visitBlockStatement(), UTAP::ExpressionVisitor::visitBlockStatement(), UTAP::TypeChecker::visitEdge(), UTAP::TypeChecker::visitGanttChart(), and UTAP::CompileTimeComputableValues::visitInstance().

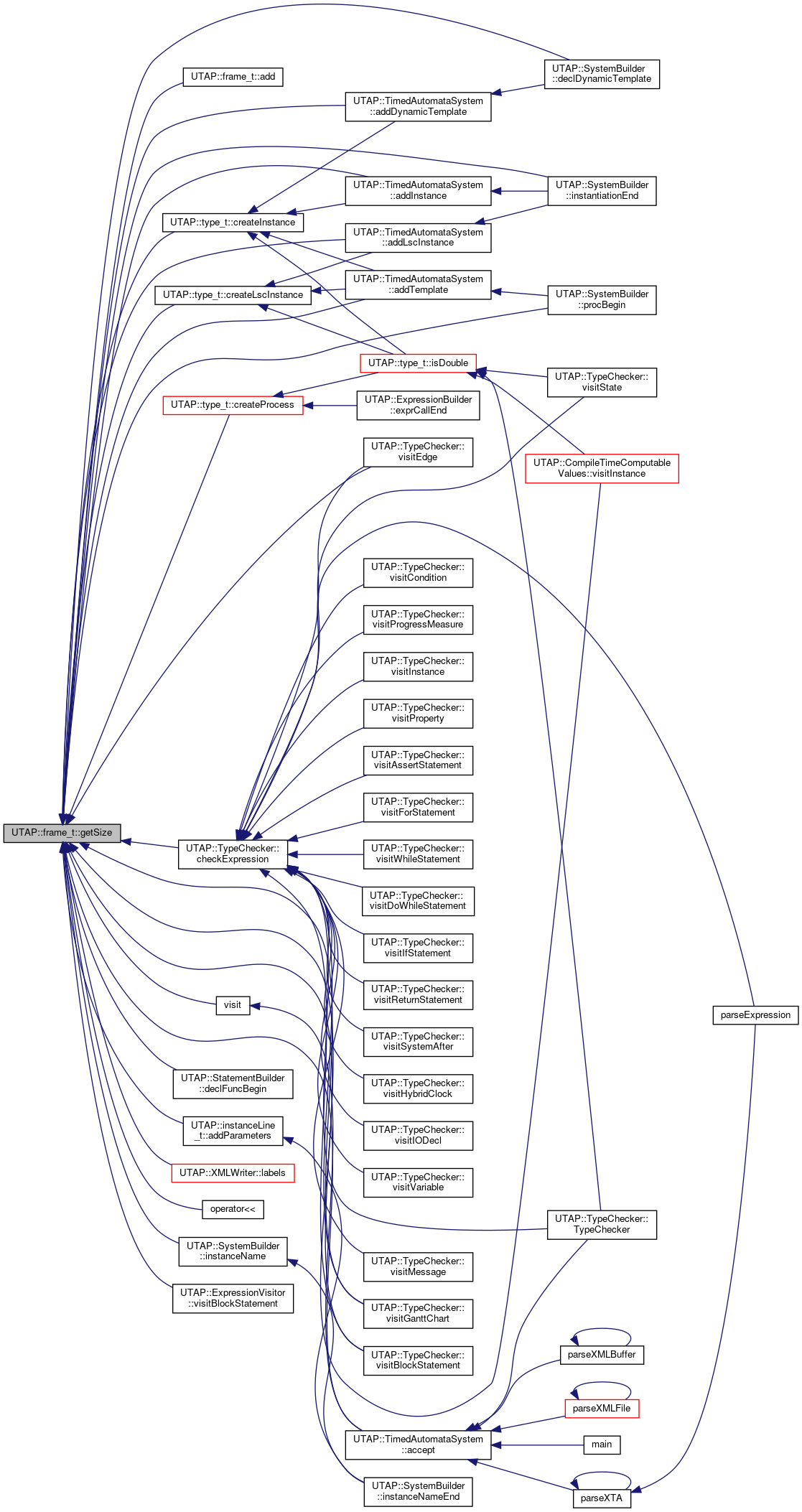

Here is the caller graph for this function:

◆ getSymbol()

symbol_t frame_t::getSymbol ( int32_t n )

Returns the Nth symbol in this frame.

Definition at line 334 of file symbols.cpp.

◆ hasParent()

bool frame_t::hasParent ( ) const

Returns true if this frame has a parent.

Definition at line 468 of file symbols.cpp.

Referenced by createFrame(), and UTAP::SignalFlow::visitExpression().

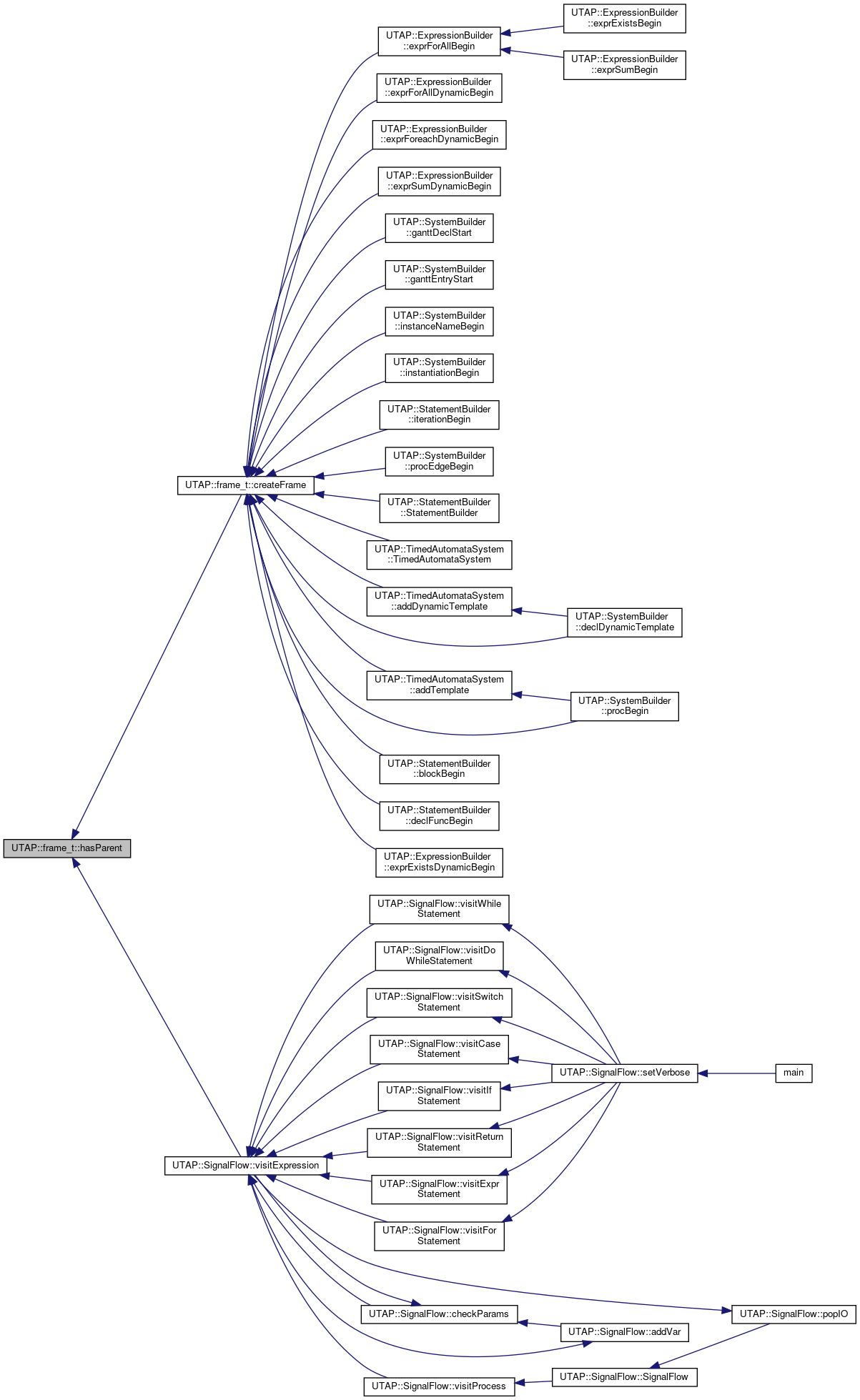

Here is the caller graph for this function:

◆ moveTo()

void frame_t::moveTo ( frame_t frame )

Move all symbols from this to a given one (leaving this empty).

Move all symbols from this to the given frame.

Notice that the symbols will be updated to point to the given frame, while this frame will be emptied and ready for recycling.

Definition at line 392 of file symbols.cpp.

References add(), and UTAP::symbol().

Referenced by UTAP::StatementBuilder::declFuncBegin().

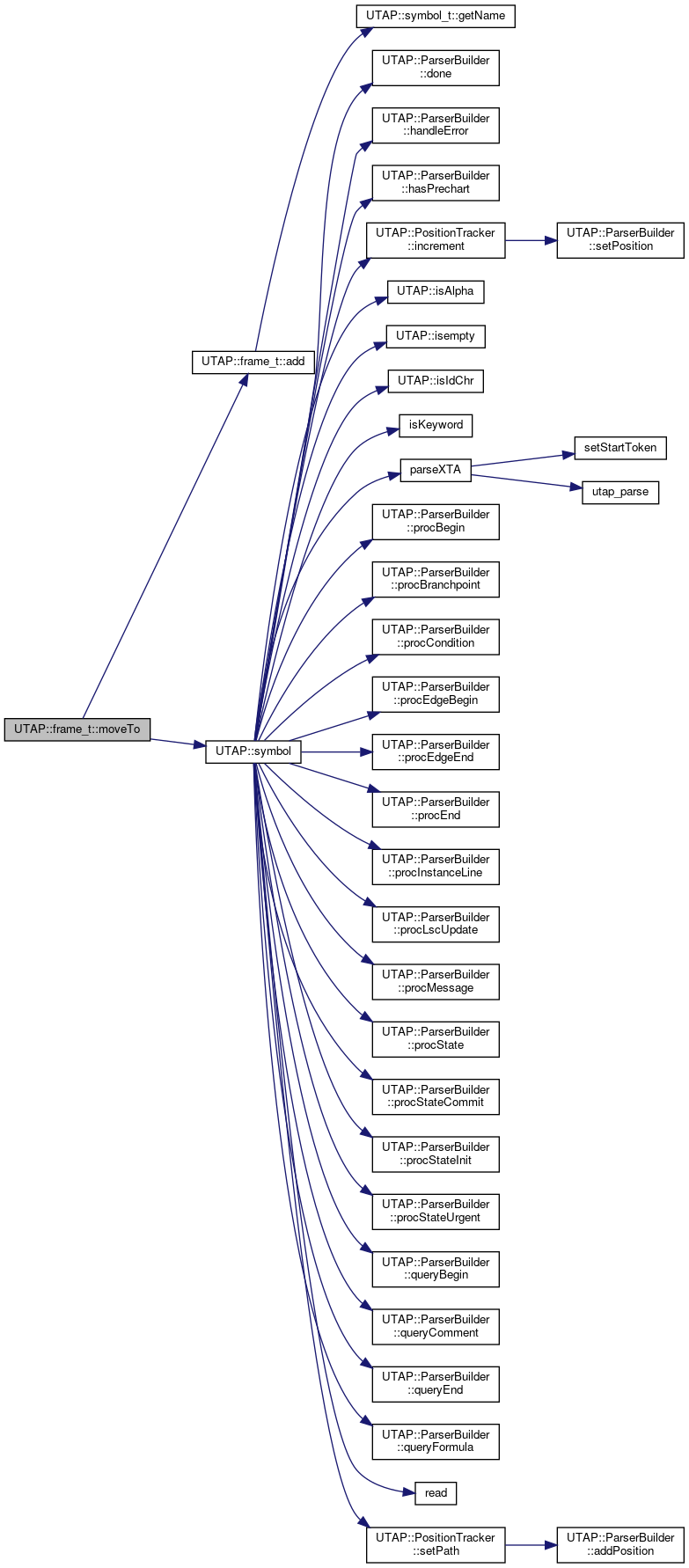

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator!=()

bool frame_t::operator!= ( const frame_t & frame ) const

Inequality operator.

Definition at line 322 of file symbols.cpp.

◆ operator=()

const frame_t & frame_t::operator= ( const frame_t & frame )

Assignment operator.

Definition at line 297 of file symbols.cpp.

◆ operator==()

bool frame_t::operator== ( const frame_t & frame ) const

Equality operator.

Definition at line 316 of file symbols.cpp.

◆ operator[]() [1/2]

symbol_t frame_t::operator[] ( int32_t n )

Returns the Nth symbol in this frame.

Definition at line 340 of file symbols.cpp.

◆ operator[]() [2/2]

const symbol_t frame_t::operator[] ( int32_t n ) const

Returns the Nth symbol in this frame.

Definition at line 346 of file symbols.cpp.

◆ remove()

void frame_t::remove ( symbol_t s )

removes the given symbol

Definition at line 405 of file symbols.cpp.

References getIndexOf(), and UTAP::symbol().

Referenced by UTAP::TimedAutomataSystem::removeProcess().

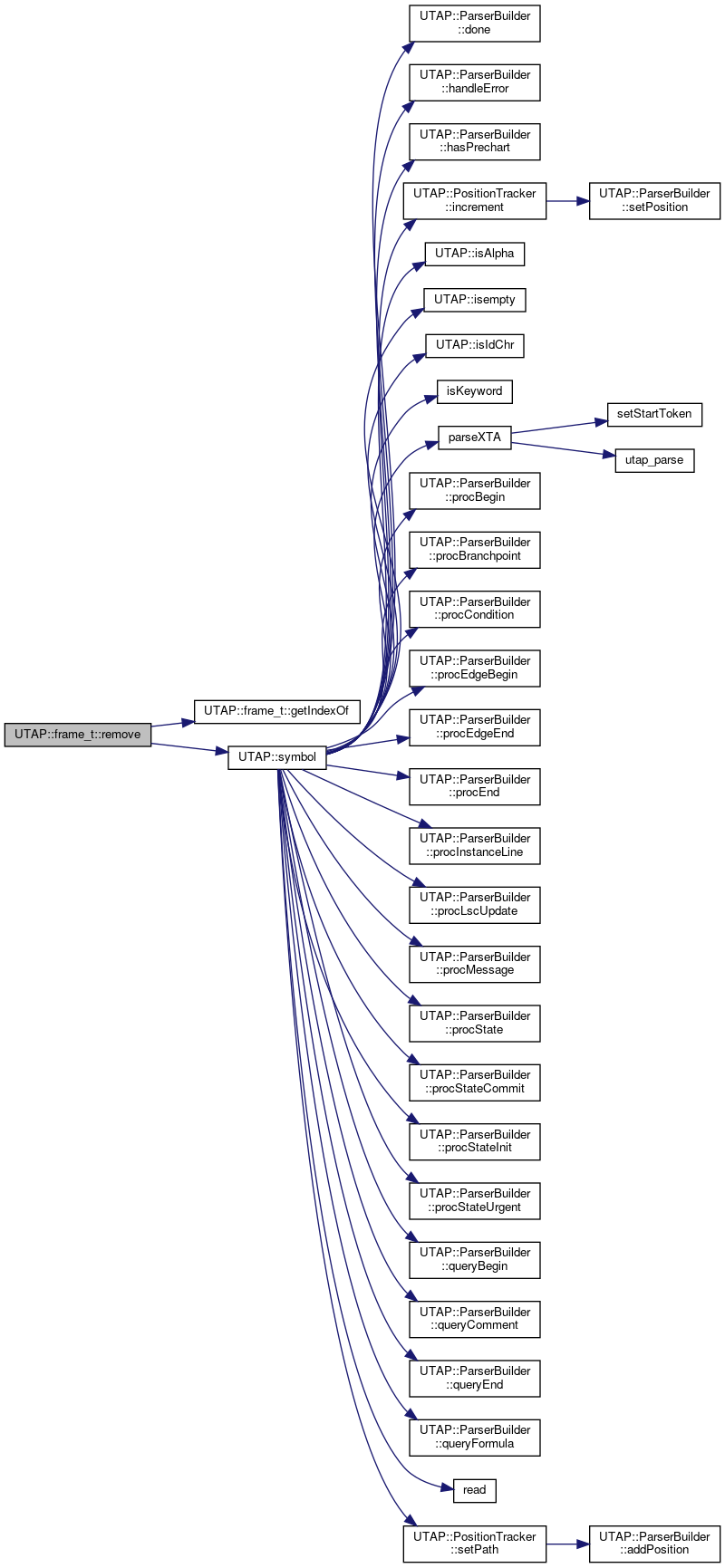

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resolve()

bool frame_t::resolve	(	const std::string &	name,
		symbol_t &	symbol
	)

Resolves a name in this frame or a parent frame.

Resolves the name in this frame or the parent frame and returns the corresponding symbol.

Definition at line 446 of file symbols.cpp.

Referenced by UTAP::expression_t::deeperClone().

Here is the caller graph for this function:

◆ toString()

std::string UTAP::frame_t::toString ( )

Friends And Related Function Documentation

◆ symbol_t

friend class symbol_t

friend

Definition at line 189 of file symbols.h.
