UTAP::StatementBuilder Class Referenceabstract

Partial implementation of the builder interface, useful for building something with statements that is not a UTAP system. More...

#include <statementbuilder.h>

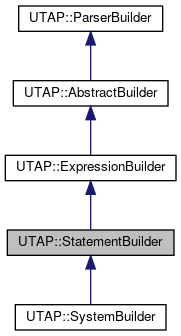

Inheritance diagram for UTAP::StatementBuilder:

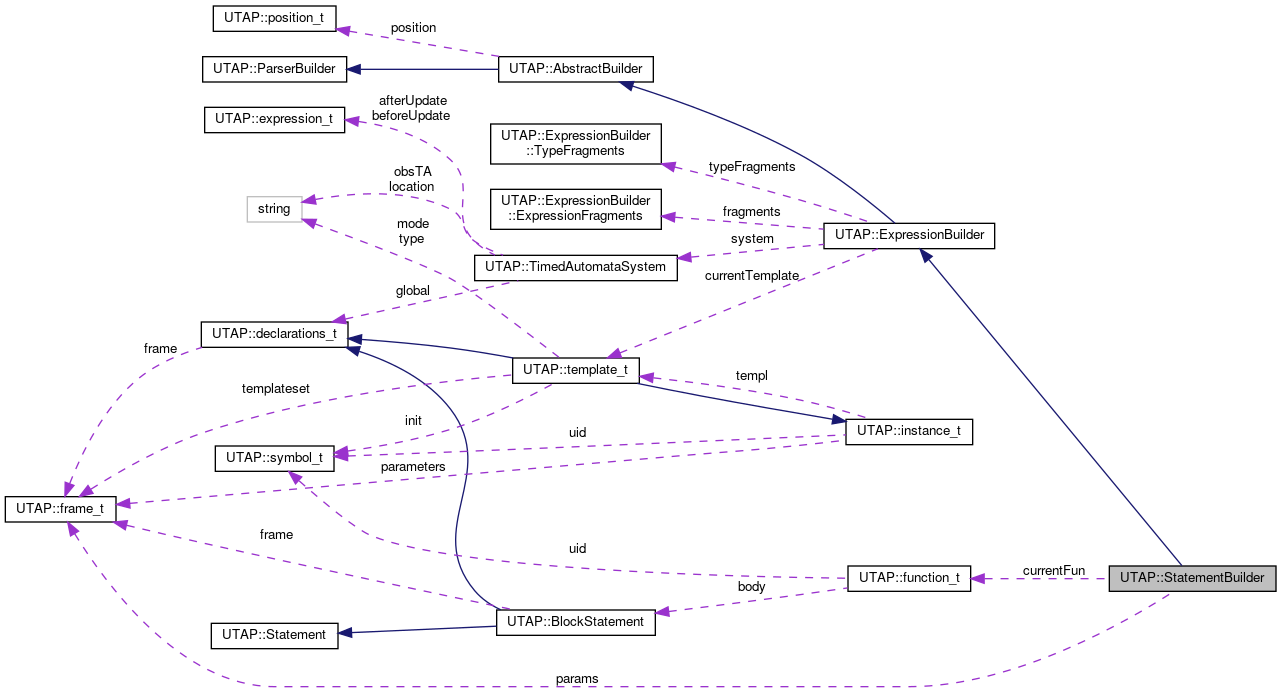

Collaboration diagram for UTAP::StatementBuilder:

Public Member Functions

 StatementBuilder (TimedAutomataSystem *)

 ~StatementBuilder ()

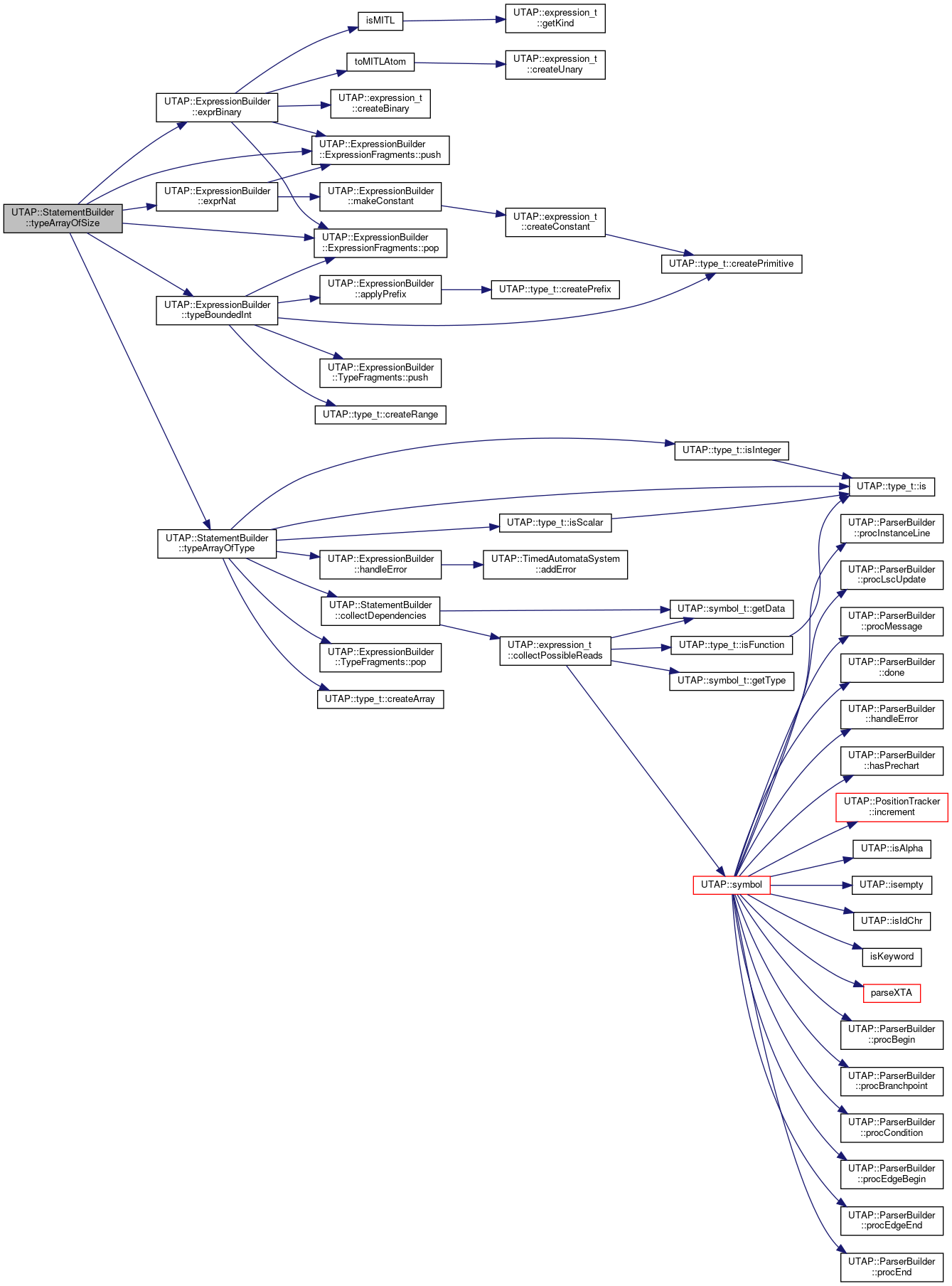

void typeArrayOfSize (size_t) override
 Called to create an array type. More...

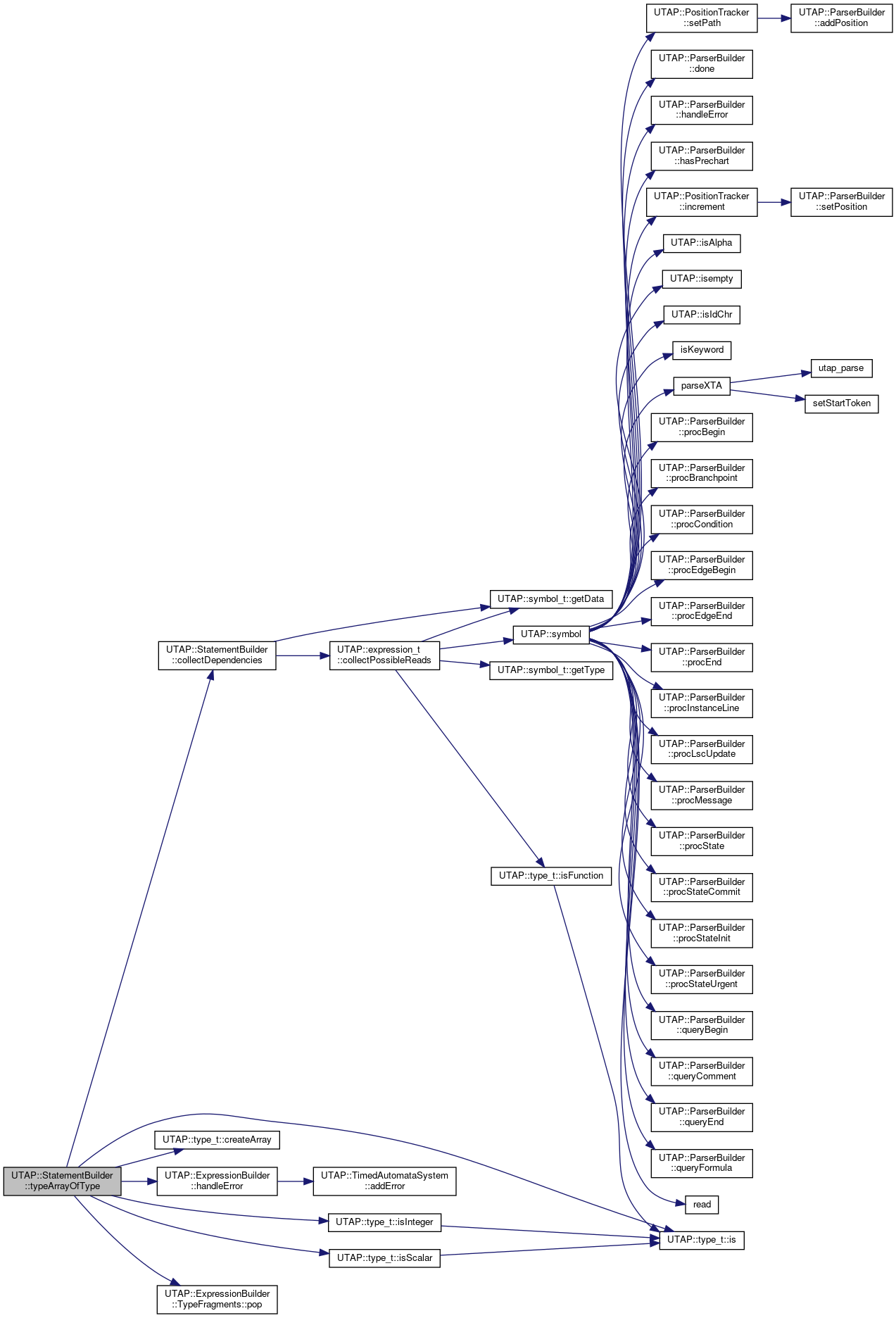

void typeArrayOfType (size_t) override
 Called to create an array type. More...

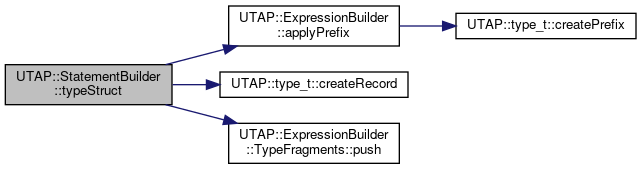

void typeStruct (PREFIX, uint32_t fields) override
 Used to construct a new struct type, which is then pushed onto the type stack. More...

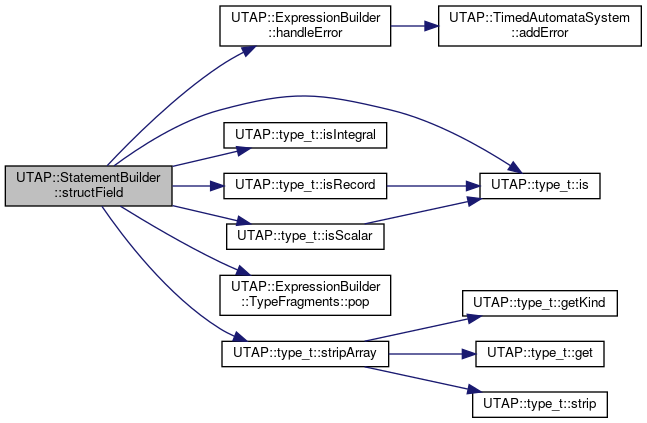

void structField (const char *name) override
 Used to declare the fields of a structure. More...

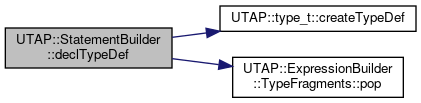

void declTypeDef (const char *name) override
 A type definition. More...

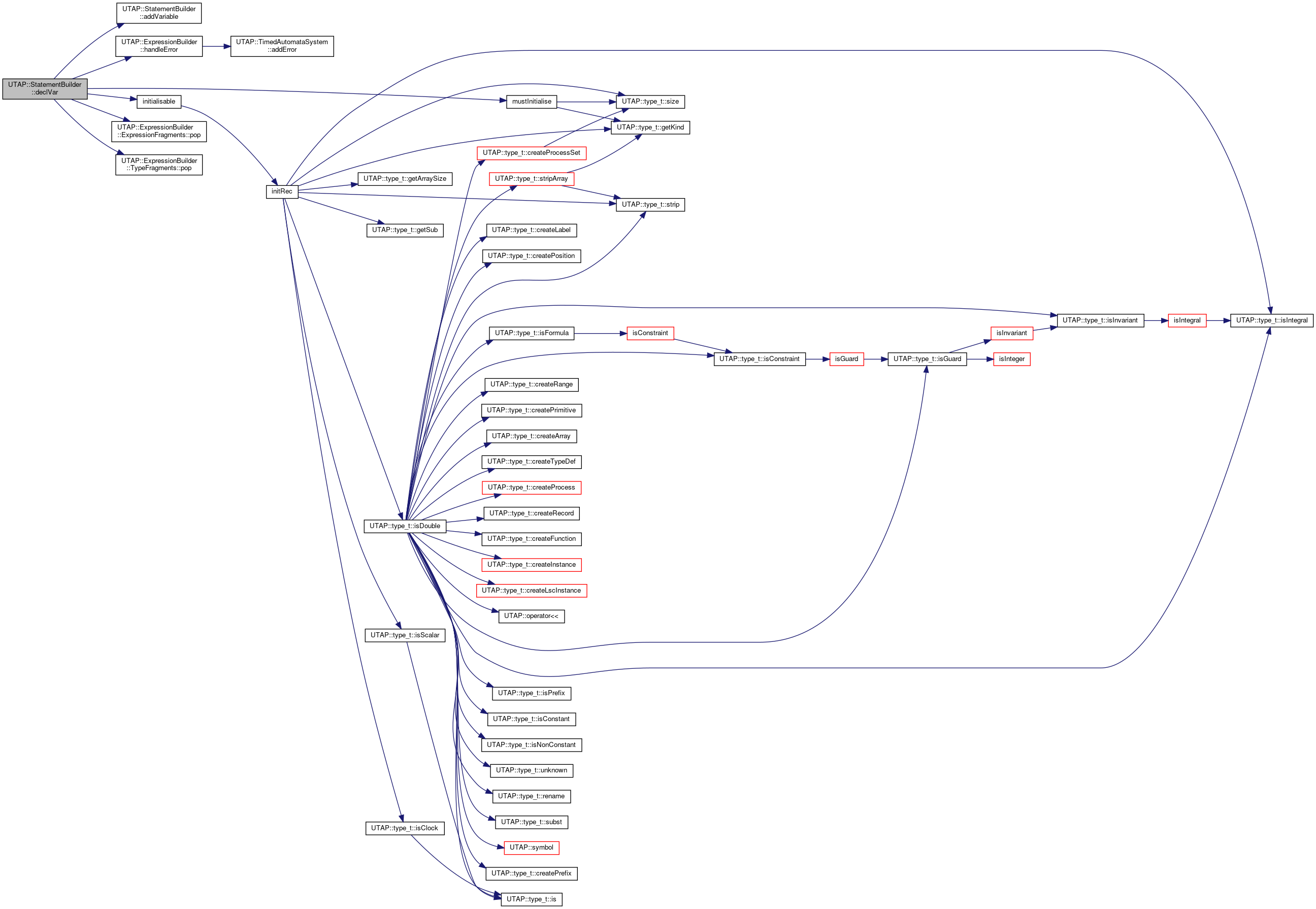

void declVar (const char *name, bool init) override
 Declare a new variable of the given name. More...

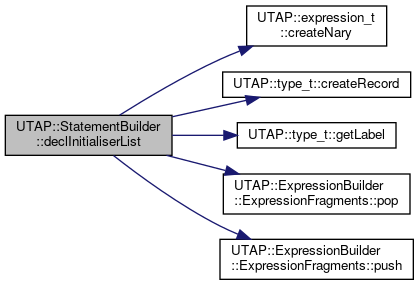

void declInitialiserList (uint32_t num) override

void declFieldInit (const char *name) override

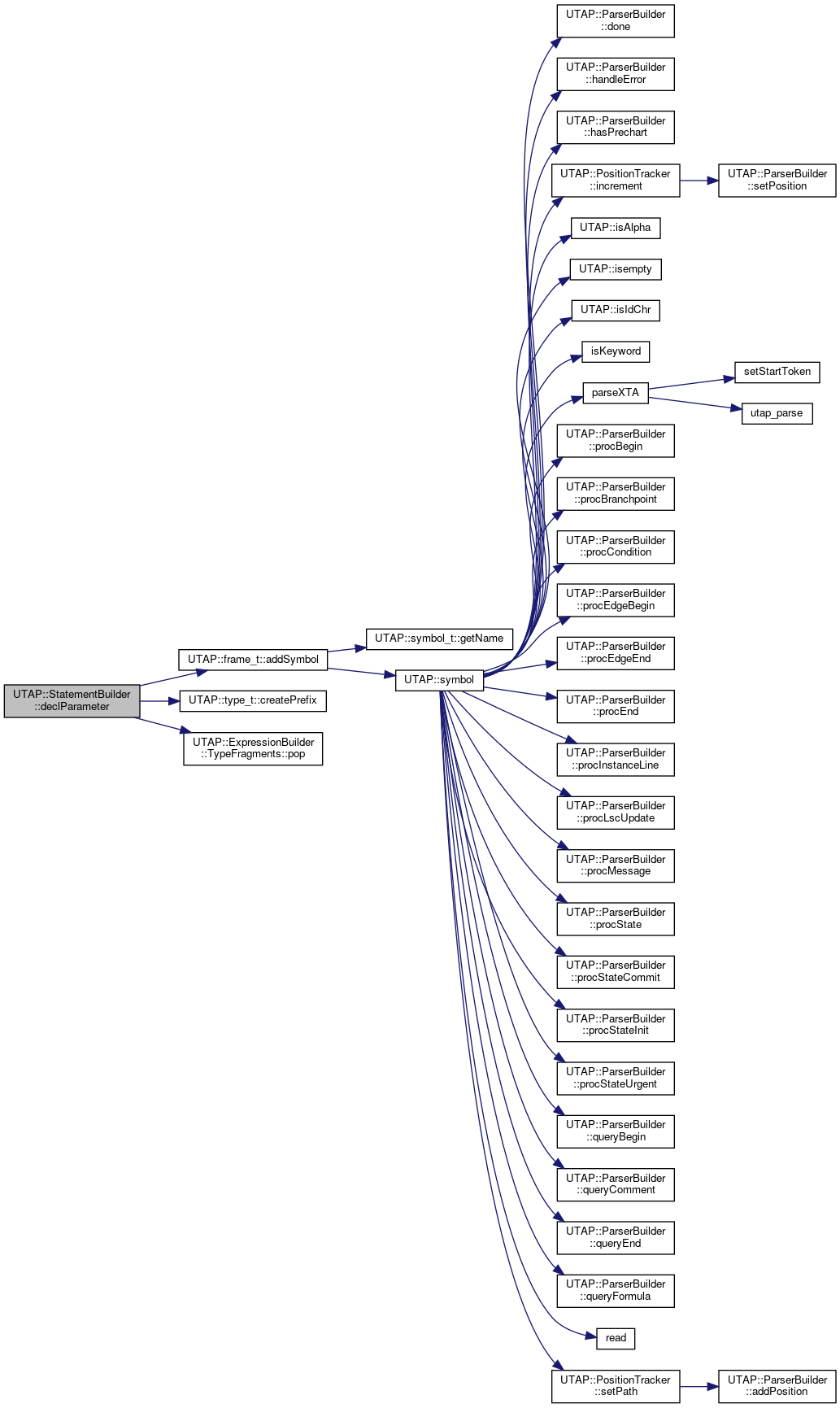

void declParameter (const char *name, bool) override

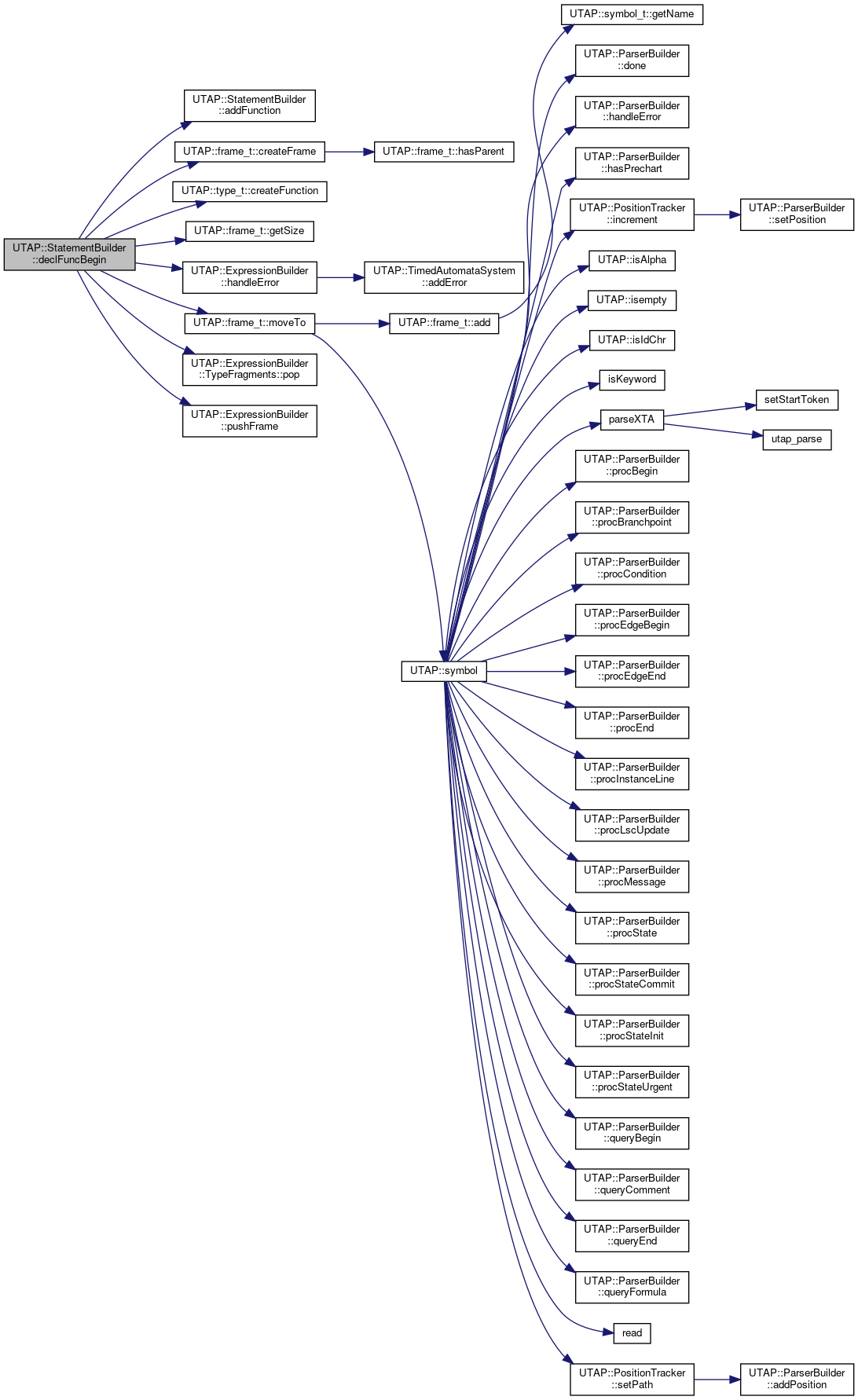

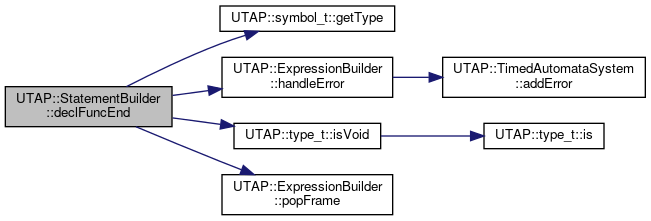

void declFuncBegin (const char *name) override

void declFuncEnd () override

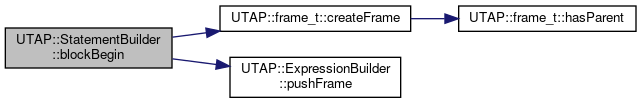

void blockBegin () override

void blockEnd () override

void emptyStatement () override

void forBegin () override

void forEnd () override

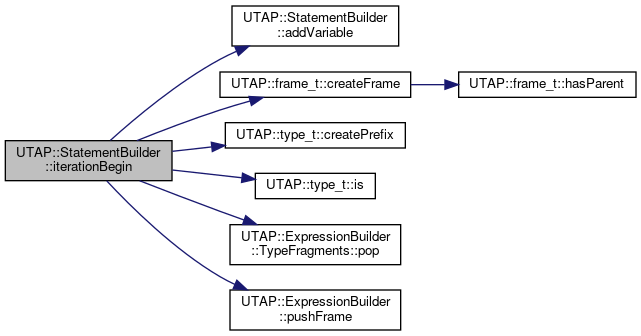

void iterationBegin (const char *name) override

void iterationEnd (const char *name) override

void whileBegin () override

void whileEnd () override

void doWhileBegin () override

void doWhileEnd () override

void ifBegin () override

void ifCondition () override

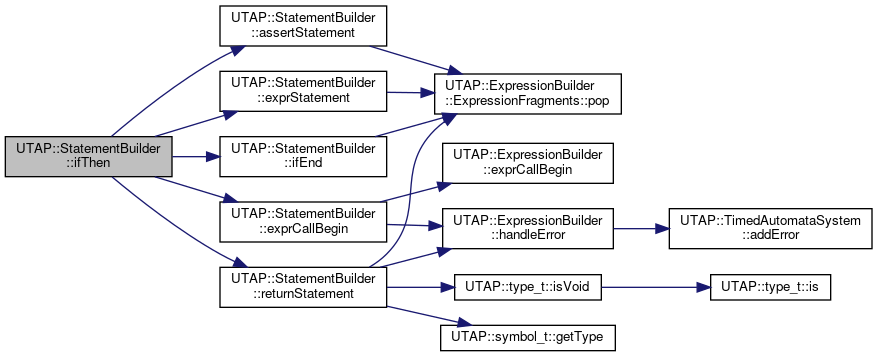

void ifThen () override

void ifEnd (bool) override

void exprStatement () override

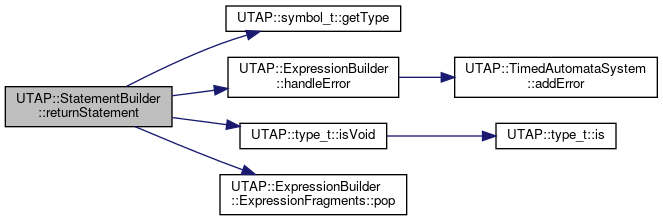

void returnStatement (bool) override

void assertStatement () override

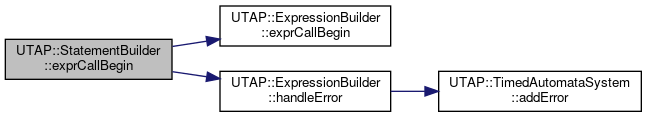

void exprCallBegin () override

- Public Member Functions inherited from UTAP::ExpressionBuilder
 ExpressionBuilder (TimedAutomataSystem *)

ExpressionFragmentsgetExpressions ()

void addPosition (uint32_t position, uint32_t offset, uint32_t line, const std::string &path) override
 Add mapping from an absolute position to a relative XML element. More...

void handleError (const std::string &) override

void handleWarning (const std::string &) override

void typeDuplicate () override
 Duplicate type at the top of the type stack. More...

void typePop () override
 Pop type at the topof the type stack. More...

void typeBool (PREFIX) override
 Called whenever a boolean type is parsed. More...

void typeInt (PREFIX) override
 Called whenever an integer type is parsed. More...

void typeDouble (PREFIX) override
 Called whenever a double type is parsed. More...

void typeBoundedInt (PREFIX) override
 Called whenever an integer type with a range is parsed. More...

void typeChannel (PREFIX) override
 Called whenever a channel type is parsed. More...

void typeClock (PREFIX) override
 Called whenever a clock type is parsed. More...

void typeVoid () override
 Called whenever a void type is parsed. More...

void typeScalar (PREFIX) override
 Called whenever a scalar type is parsed. More...

void typeName (PREFIX, const char *name) override
 Called when a type name has been parsed. More...

bool isType (const char *) override
 Must return true if and only if name is registered in the symbol table as a named type, for instance, "int" or "bool" or a user defined type. More...

void exprTrue () override

void exprFalse () override

void exprDouble (double) override

void exprId (const char *varName) override

void exprNat (int32_t) override

void exprCallEnd (uint32_t n) override

void exprArray () override

void exprPostIncrement () override

void exprPreIncrement () override

void exprPostDecrement () override

void exprPreDecrement () override

void exprAssignment (Constants::kind_t op) override

void exprUnary (Constants::kind_t unaryop) override

void exprBinary (Constants::kind_t binaryop) override

void exprNary (Constants::kind_t op, uint32_t num) override

void exprScenario (const char *name) override

expression_t exprScenario ()

void exprTernary (Constants::kind_t ternaryop, bool firstMissing) override

void exprInlineIf () override

void exprComma () override

void exprDot (const char *) override

void exprDeadlock () override

void exprForAllBegin (const char *name) override

void exprForAllEnd (const char *name) override

void exprExistsBegin (const char *name) override

void exprExistsEnd (const char *name) override

void exprSumBegin (const char *name) override

void exprSumEnd (const char *name) override

void exprBuiltinFunction1 (Constants::kind_t) override

void exprBuiltinFunction2 (Constants::kind_t) override

void exprBuiltinFunction3 (Constants::kind_t) override

void exprSMCControl () override

void exprProbaQualitative (Constants::kind_t, Constants::kind_t, double) override

void exprProbaQuantitative (Constants::kind_t) override

void exprProbaCompare (Constants::kind_t, Constants::kind_t) override

void exprProbaExpected (const char *aggregatingOp) override

void exprSimulate (int, bool=false, int=0) override

void exprMitlFormula () override

void exprMitlUntil (int, int) override

void exprMitlRelease (int, int) override

void exprMitlDisj () override

void exprMitlConj () override

void exprMitlNext () override

void exprMitlAtom () override

void exprMitlDiamond (int, int) override

void exprMitlBox (int, int) override

void exprSpawn (int params) override

void exprExit () override

void exprNumOf () override

void exprForAllDynamicBegin (const char *, const char *) override

void exprForAllDynamicEnd (const char *name) override

void exprExistsDynamicBegin (const char *, const char *) override

void exprExistsDynamicEnd (const char *) override

void exprSumDynamicBegin (const char *, const char *) override

void exprSumDynamicEnd (const char *name) override

void exprForeachDynamicBegin (const char *, const char *) override

void exprForeachDynamicEnd (const char *name) override

void pushDynamicFrameOf (template_t *t, const std::string &name)

void popDynamicFrameOf (const std::string &name)

- Public Member Functions inherited from UTAP::AbstractBuilder
 AbstractBuilder ()

void setPosition (uint32_t, uint32_t) override
 Sets the current position. More...

void ganttDeclStart (const char *name) override

void ganttDeclSelect (const char *id) override

void ganttDeclEnd () override

void ganttEntryStart () override

void ganttEntrySelect (const char *id) override

void ganttEntryEnd () override

void declProgress (bool) override
 Guard progress measure declaration. More...

void procBegin (const char *name, const bool isTA=true, const std::string type="", const std::string mode="") override

void procEnd () override

void procState (const char *name, bool hasInvariant, bool hasER) override

void procStateCommit (const char *name) override

void procStateUrgent (const char *name) override

void procStateInit (const char *name) override

void procBranchpoint (const char *name) override

void procEdgeBegin (const char *from, const char *to, const bool control, const char *actname) override

void procEdgeEnd (const char *from, const char *to) override

void procSelect (const char *id) override

void procGuard () override

void procSync (Constants::synchronisation_t type) override

void procUpdate () override

void procProb () override

void procInstanceLine () override

void instanceName (const char *name, bool templ=true) override

void instanceNameBegin (const char *name) override

void instanceNameEnd (const char *name, size_t arguments) override

void procMessage (const char *from, const char *to, const int loc, const bool pch) override

void procMessage (Constants::synchronisation_t type) override

void procCondition (const std::vector< char *> anchors, const int loc, const bool pch, const bool hot) override

void procCondition () override

void procLscUpdate (const char *anchor, const int loc, const bool pch) override

void procLscUpdate () override

void hasPrechart (const bool pch) override

void breakStatement () override

void continueStatement () override

void switchBegin () override

void switchEnd () override

void caseBegin () override

void caseEnd () override

void defaultBegin () override

void defaultEnd () override

void exprSync (Constants::synchronisation_t type) override

void declIO (const char *, int, int) override

void instantiationBegin (const char *, size_t, const char *) override

void instantiationEnd (const char *, size_t, const char *, size_t) override

void process (const char *) override

void processListEnd () override

void done () override

void handleExpect (const char *text) override

void property () override

void scenario (const char *) override

void parse (const char *) override

void beforeUpdate () override

void afterUpdate () override

void beginChanPriority () override

void addChanPriority (char separator) override

void defaultChanPriority () override

void incProcPriority () override

void procPriority (const char *) override

void declDynamicTemplate (const std::string &) override
 Dynamic. More...

void exprDynamicProcessExpr (const char *) override

void exprMITLForAllDynamicBegin (const char *, const char *) override

void exprMITLForAllDynamicEnd (const char *name) override

void exprMITLExistsDynamicBegin (const char *, const char *) override

void exprMITLExistsDynamicEnd (const char *name) override

void queryBegin () override
 Verification queries. More...

void queryFormula (const char *formula, const char *location) override

void queryComment (const char *comment) override

void queryEnd () override

- Public Member Functions inherited from UTAP::ParserBuilder
virtual ~ParserBuilder ()

void handleWarning (const char *msg,...)

void handleError (const char *msg,...)


Protected Member Functions

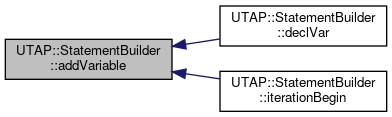

virtual variable_taddVariable (type_t type, const char *name, expression_t init)=0

virtual bool addFunction (type_t type, const char *name)=0

- Protected Member Functions inherited from UTAP::ExpressionBuilder
void pushFrame (frame_t)
 Push a new frame. More...

void popFrame ()
 Pop the topmost frame. More...

bool resolve (const std::string &, symbol_t &)

expression_t makeConstant (int value)

expression_t makeConstant (double value)

type_t applyPrefix (PREFIX, type_t type)
 Given a prefix and a type, this method creates a new type by applying the prefix. More...

virtual bool allowProcessReferences ()
 If this method returns true, it is allowed to access the private identifiers of a process by prefixing the identifier with the process name. More...


Static Protected Member Functions

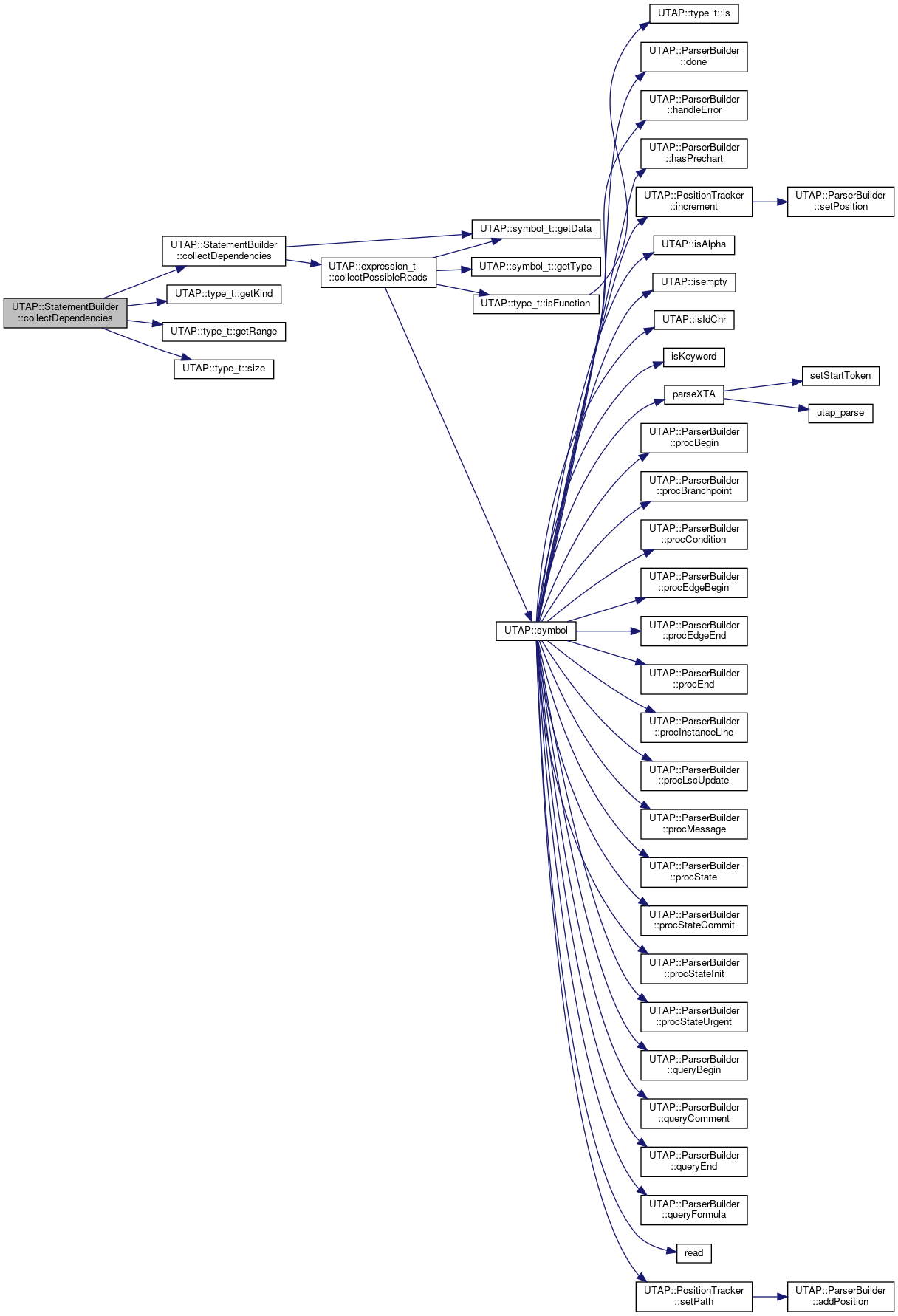

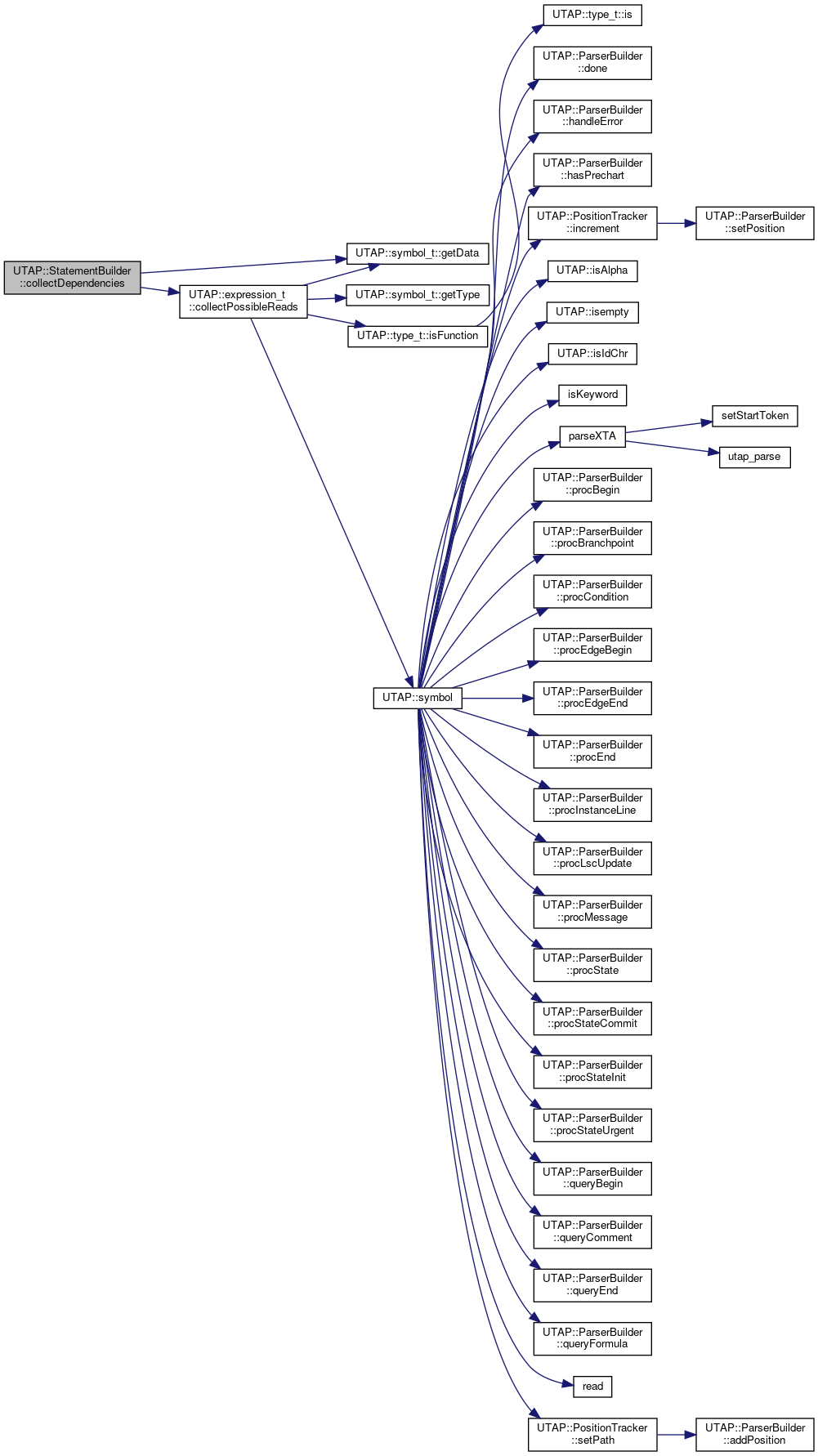

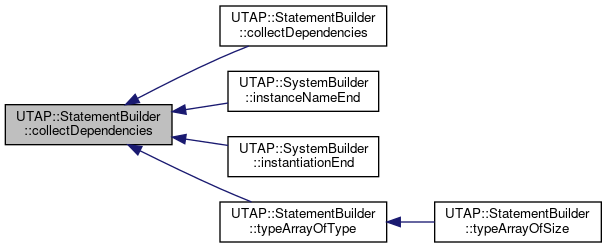

static void collectDependencies (std::set< symbol_t > &, expression_t)

static void collectDependencies (std::set< symbol_t > &, type_t)


Protected Attributes

frame_t params
 The params frame is used temporarily during parameter parsing. More...

function_tcurrentFun
 The function currently being parsed. More...

std::vector< BlockStatement * > blocks
 Stack of nested statement blocks. More...

std::vector< type_tfields
 The types of a struct. More...

std::vector< std::string > labels
 The labels of a struct. More...

- Protected Attributes inherited from UTAP::ExpressionBuilder
ExpressionFragments fragments
 Expression stack. More...

TypeFragments typeFragments
 Type stack. More...

std::stack< frame_tframes
 Frame stack. More...

TimedAutomataSystemsystem
 Pointer to the system under construction. More...

template_tcurrentTemplate
 The template currently being parsed. More...

int32_t scalar_count
 Counter for creating unique scalarset names. More...

std::map< std::string, frame_tdynamicFrames

- Protected Attributes inherited from UTAP::AbstractBuilder
position_t position


Additional Inherited Members

- Public Types inherited from UTAP::ParserBuilder
enum  PREFIX {
  PREFIX_NONE = 0, PREFIX_CONST = 1, PREFIX_URGENT = 2, PREFIX_BROADCAST = 4,
  PREFIX_URGENT_BROADCAST = 6, PREFIX_SYSTEM_META = 8, PREFIX_HYBRID = 16
}

- Public Attributes inherited from UTAP::ParserBuilder
std::vector< std::string > lscTemplateNames


Detailed Description

Partial implementation of the builder interface, useful for building something with statements that is not a UTAP system.

Definition at line 39 of file statementbuilder.h.

Constructor & Destructor Documentation

◆ StatementBuilder()

StatementBuilder::StatementBuilder ( TimedAutomataSystem system)

Definition at line 44 of file statementbuilder.cpp.

References UTAP::frame_t::createFrame(), currentFun, UTAP::ExpressionBuilder::currentTemplate, and params.

Here is the call graph for this function:

◆ ~StatementBuilder()

StatementBuilder::~StatementBuilder ( )

Definition at line 52 of file statementbuilder.cpp.

References blocks.

Member Function Documentation

◆ addFunction()

virtual bool UTAP::StatementBuilder::addFunction ( type_t  type,
const char *  name
)
protectedpure virtual

Implemented in UTAP::SystemBuilder.

Referenced by declFuncBegin().

Here is the caller graph for this function:

◆ addVariable()

virtual variable_t* UTAP::StatementBuilder::addVariable ( type_t  type,
const char *  name,
expression_t  init
)
protectedpure virtual

Implemented in UTAP::SystemBuilder.

Referenced by declVar(), and iterationBegin().

Here is the caller graph for this function:

◆ assertStatement()

void StatementBuilder::assertStatement ( )
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 611 of file statementbuilder.cpp.

References blocks, UTAP::ExpressionBuilder::fragments, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

Referenced by ifThen().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ blockBegin()

void StatementBuilder::blockBegin ( )
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 455 of file statementbuilder.cpp.

References blocks, UTAP::frame_t::createFrame(), UTAP::ExpressionBuilder::frames, and UTAP::ExpressionBuilder::pushFrame().

Here is the call graph for this function:

◆ blockEnd()

void StatementBuilder::blockEnd ( )
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 461 of file statementbuilder.cpp.

References blocks, and UTAP::ExpressionBuilder::popFrame().

Here is the call graph for this function:

◆ collectDependencies() [1/2]

void StatementBuilder::collectDependencies ( std::set< symbol_t > &  dependencies,
expression_t  expr
)
staticprotected

Definition at line 57 of file statementbuilder.cpp.

References UTAP::expression_t::collectPossibleReads(), UTAP::variable_t::expr, and UTAP::symbol_t::getData().

Referenced by collectDependencies(), UTAP::SystemBuilder::instanceNameEnd(), UTAP::SystemBuilder::instantiationEnd(), and typeArrayOfType().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ collectDependencies() [2/2]

void StatementBuilder::collectDependencies ( std::set< symbol_t > &  dependencies,
type_t  type
)
staticprotected

Definition at line 78 of file statementbuilder.cpp.

References collectDependencies(), UTAP::type_t::getKind(), UTAP::type_t::getRange(), UTAP::Constants::RANGE, and UTAP::type_t::size().

Here is the call graph for this function:

◆ declFieldInit()

void StatementBuilder::declFieldInit ( const char *  name)
overridevirtual

◆ declFuncBegin()

◆ declFuncEnd()

void StatementBuilder::declFuncEnd ( )
overridevirtual

◆ declInitialiserList()

◆ declParameter()

void StatementBuilder::declParameter ( const char *  name,
bool  ref
)
overridevirtual

◆ declTypeDef()

void StatementBuilder::declTypeDef ( const char *  name)
overridevirtual

A type definition.

Assign the name to the given type on the type fragment stack. In case of array types, dim constant expressions are expected on and popped from the expression stack.

Reimplemented from UTAP::AbstractBuilder.

Definition at line 190 of file statementbuilder.cpp.

References UTAP::type_t::createTypeDef(), UTAP::ExpressionBuilder::frames, UTAP::ExpressionBuilder::TypeFragments::pop(), UTAP::AbstractBuilder::position, and UTAP::ExpressionBuilder::typeFragments.

Here is the call graph for this function:

◆ declVar()

void StatementBuilder::declVar ( const char *  name,
bool  hasInit
)
overridevirtual

Declare a new variable of the given name.

The type is expected to be on the type stack. If the variable has an initialiser (the init parameter is true), then a constant expression is expected at the top of the expression stack. The expressions will be popped of the stack (the type is left untouched).

Reimplemented from UTAP::AbstractBuilder.

Definition at line 271 of file statementbuilder.cpp.

References addVariable(), currentFun, UTAP::ExpressionBuilder::fragments, UTAP::ExpressionBuilder::handleError(), initialisable(), mustInitialise(), UTAP::ExpressionBuilder::ExpressionFragments::pop(), UTAP::ExpressionBuilder::TypeFragments::pop(), and UTAP::ExpressionBuilder::typeFragments.

Here is the call graph for this function:

◆ doWhileBegin()

void StatementBuilder::doWhileBegin ( )
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 548 of file statementbuilder.cpp.

◆ doWhileEnd()

void StatementBuilder::doWhileEnd ( )
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 552 of file statementbuilder.cpp.

References blocks, UTAP::ExpressionBuilder::fragments, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

Here is the call graph for this function:

◆ emptyStatement()

void StatementBuilder::emptyStatement ( )
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 473 of file statementbuilder.cpp.

References blocks.

◆ exprCallBegin()

void StatementBuilder::exprCallBegin ( )
overridevirtual

Reimplemented from UTAP::ExpressionBuilder.

Definition at line 621 of file statementbuilder.cpp.

References currentFun, UTAP::ExpressionBuilder::exprCallBegin(), UTAP::ExpressionBuilder::fragments, UTAP::ExpressionBuilder::handleError(), and UTAP::function_t::uid.

Referenced by ifThen().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ exprStatement()

void StatementBuilder::exprStatement ( )
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 570 of file statementbuilder.cpp.

References blocks, UTAP::ExpressionBuilder::fragments, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

Referenced by ifThen().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ forBegin()

void StatementBuilder::forBegin ( )
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 478 of file statementbuilder.cpp.

◆ forEnd()

void StatementBuilder::forEnd ( )
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 482 of file statementbuilder.cpp.

References blocks, UTAP::ExpressionBuilder::fragments, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

Here is the call graph for this function:

◆ ifBegin()

void UTAP::StatementBuilder::ifBegin ( )
inlineoverridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 93 of file statementbuilder.h.

◆ ifCondition()

void UTAP::StatementBuilder::ifCondition ( )
inlineoverridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 94 of file statementbuilder.h.

◆ ifEnd()

void StatementBuilder::ifEnd ( bool  elsePart)
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 559 of file statementbuilder.cpp.

References blocks, UTAP::ExpressionBuilder::fragments, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

Referenced by ifThen().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ ifThen()

void UTAP::StatementBuilder::ifThen ( )
inlineoverridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 95 of file statementbuilder.h.

References assertStatement(), exprCallBegin(), exprStatement(), ifEnd(), and returnStatement().

Here is the call graph for this function:

◆ iterationBegin()

◆ iterationEnd()

void StatementBuilder::iterationEnd ( const char *  name)
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 520 of file statementbuilder.cpp.

References blocks, and UTAP::ExpressionBuilder::popFrame().

Here is the call graph for this function:

◆ returnStatement()

void StatementBuilder::returnStatement ( bool  args)
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 576 of file statementbuilder.cpp.

References blocks, currentFun, UTAP::ExpressionBuilder::fragments, UTAP::symbol_t::getType(), UTAP::ExpressionBuilder::handleError(), UTAP::type_t::isVoid(), UTAP::ExpressionBuilder::ExpressionFragments::pop(), and UTAP::function_t::uid.

Referenced by ifThen().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ structField()

void StatementBuilder::structField ( const char *  name)
overridevirtual

Used to declare the fields of a structure.

The type of the field is expected to be on the type fragment stack.

Reimplemented from UTAP::AbstractBuilder.

Definition at line 159 of file statementbuilder.cpp.

References UTAP::Constants::CONSTANT, fields, UTAP::ExpressionBuilder::handleError(), UTAP::type_t::is(), UTAP::type_t::isIntegral(), UTAP::type_t::isRecord(), UTAP::type_t::isScalar(), labels, UTAP::ExpressionBuilder::TypeFragments::pop(), UTAP::type_t::stripArray(), and UTAP::ExpressionBuilder::typeFragments.

Here is the call graph for this function:

◆ typeArrayOfSize()

void StatementBuilder::typeArrayOfSize ( size_t  )
overridevirtual

◆ typeArrayOfType()

void StatementBuilder::typeArrayOfType ( size_t  )
overridevirtual

Called to create an array type.

The size of the array was previously pushed as a type.

Reimplemented from UTAP::AbstractBuilder.

Definition at line 115 of file statementbuilder.cpp.

References collectDependencies(), UTAP::type_t::createArray(), UTAP::ExpressionBuilder::currentTemplate, UTAP::ExpressionBuilder::handleError(), UTAP::type_t::is(), UTAP::type_t::isInteger(), UTAP::type_t::isScalar(), UTAP::ExpressionBuilder::TypeFragments::pop(), UTAP::AbstractBuilder::position, UTAP::Constants::RANGE, UTAP::instance_t::restricted, and UTAP::ExpressionBuilder::typeFragments.

Referenced by typeArrayOfSize().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ typeStruct()

void StatementBuilder::typeStruct ( PREFIX  prefix,
uint32_t  n
)
overridevirtual

Used to construct a new struct type, which is then pushed onto the type stack.

The type is based on n fields, which are expected to be on and will be popped off the type stack.

Reimplemented from UTAP::AbstractBuilder.

Definition at line 143 of file statementbuilder.cpp.

References UTAP::ExpressionBuilder::applyPrefix(), UTAP::type_t::createRecord(), fields, labels, UTAP::AbstractBuilder::position, UTAP::ExpressionBuilder::TypeFragments::push(), and UTAP::ExpressionBuilder::typeFragments.

Here is the call graph for this function:

◆ whileBegin()

void StatementBuilder::whileBegin ( )
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 535 of file statementbuilder.cpp.

◆ whileEnd()

void StatementBuilder::whileEnd ( )
overridevirtual

Reimplemented from UTAP::AbstractBuilder.

Definition at line 539 of file statementbuilder.cpp.

References blocks, UTAP::ExpressionBuilder::fragments, and UTAP::ExpressionBuilder::ExpressionFragments::pop().

Here is the call graph for this function:

Member Data Documentation

◆ blocks

std::vector<BlockStatement*> UTAP::StatementBuilder::blocks
protected

◆ currentFun

function_t* UTAP::StatementBuilder::currentFun
protected

◆ fields

std::vector<type_t> UTAP::StatementBuilder::fields
protected

The types of a struct.

Definition at line 55 of file statementbuilder.h.

Referenced by declInitialiserList(), structField(), and typeStruct().

◆ labels

std::vector<std::string> UTAP::StatementBuilder::labels
protected

The labels of a struct.

Definition at line 58 of file statementbuilder.h.

Referenced by declFuncBegin(), declInitialiserList(), structField(), and typeStruct().

◆ params

frame_t UTAP::StatementBuilder::params
protected

The documentation for this class was generated from the following files:
