UTAP::SignalFlow Class Reference

Class SignalFlow is for analysing UPPAAL specifications and extracting the timed automata input/output "interface" information which can be treated as a data flow or entity-relationship map of the system. More...

#include <signalflow.h>

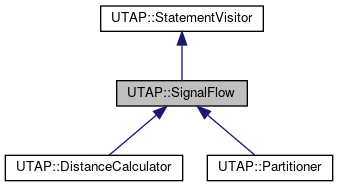

Inheritance diagram for UTAP::SignalFlow:

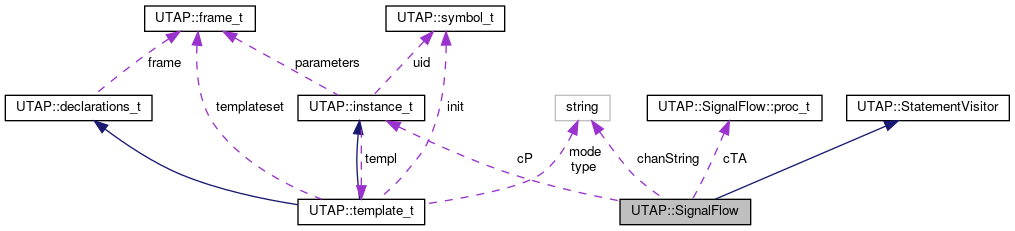

Collaboration diagram for UTAP::SignalFlow:

Classes
struct	less_str
struct	proc_t

Public Types
typedef std::set< const char *, const less_str >	strs_t
typedef std::map< const proc_t *, strs_t >	proc2strs_t
typedef std::map< const char *, strs_t >	str2strs_t
typedef std::set< proc_t * >	procs_t
typedef std::map< const char *, procs_t, less_str >	str2procs_t
typedef std::map< const symbol_t, expression_t >	exprref_t

Public Member Functions
	SignalFlow (const char *_title, TimedAutomataSystem &ta)
	Analyse the system and extract I/O information: More...
void	setVerbose (int verbose)
virtual	~SignalFlow ()
	All strings are from TASystem (don't dispose TASystem before SignalFlow). More...
void	printForTron (std::ostream &os)
	Print I/O information in TRON format into given output stream. More...
virtual void	printForDot (std::ostream &os, bool ranked, bool erd, bool cEdged)
	Print I/O information in DOT format into given output stream. More...
int32_t	visitEmptyStatement (EmptyStatement *stat) override
	System visitor pattern extracts read/write information from UCode. More...
int32_t	visitExprStatement (ExprStatement *stat) override
int32_t	visitForStatement (ForStatement *stat) override
int32_t	visitIterationStatement (IterationStatement *stat) override
int32_t	visitWhileStatement (WhileStatement *stat) override
int32_t	visitDoWhileStatement (DoWhileStatement *stat) override
int32_t	visitBlockStatement (BlockStatement *stat) override
int32_t	visitSwitchStatement (SwitchStatement *stat) override
int32_t	visitCaseStatement (CaseStatement *stat) override
int32_t	visitDefaultStatement (DefaultStatement *stat) override
int32_t	visitIfStatement (IfStatement *stat) override
int32_t	visitBreakStatement (BreakStatement *stat) override
int32_t	visitContinueStatement (ContinueStatement *stat) override
int32_t	visitReturnStatement (ReturnStatement *stat) override
int32_t	visitAssertStatement (UTAP::AssertStatement *stat) override
Public Member Functions inherited from UTAP::StatementVisitor
virtual	~StatementVisitor ()

Protected Member Functions
bool	checkParams (const symbol_t &s)
void	addChan (const std::string &, strs_t &, str2procs_t &)
void	addVar (const symbol_t &, str2strs_t &, str2procs_t &)
void	visitProcess (instance_t &)
void	visitExpression (const expression_t &)
void	pushIO ()
void	popIO ()
virtual void	printProcsForDot (std::ostream &os, bool erd)
virtual void	printVarsForDot (std::ostream &os, bool ranked, bool erd)
virtual void	printVarsWriteForDot (std::ostream &os)
virtual void	printVarsReadForDot (std::ostream &os)
virtual void	printChansOnEdgesForDot (std::ostream &os)
virtual void	printChansSeparateForDot (std::ostream &os, bool ranked, bool erd)

Protected Attributes
int	verbosity
const char *	title
procs_t	procs
str2procs_t	receivers
str2procs_t	transmitters
strs_t	processes
strs_t	channels
strs_t	variables
proc_t *	cTA
instance_t *	cP
const char *	cChan
std::string	chanString
bool	inp
bool	out
bool	sync
bool	paramsExpanded
std::stack< std::pair< bool, bool > >	ioStack
std::stack< exprref_t >	refparams
std::stack< exprref_t >	valparams

Detailed Description

Class SignalFlow is for analysing UPPAAL specifications and extracting the timed automata input/output "interface" information which can be treated as a data flow or entity-relationship map of the system.

The result can be processed by the dot (graphviz.org) to produce a "human-readable" picture. The other (tron) format is used in TRON project. Feel free to add more "formats" and/or tune the dot output.

The system must be built by TypeChecker/SystemBuilder before SignalFlow. Simply create using constructor and then use print* methods. The rest of methods are used internally by visitor pattern. Feel free to add new print* methods or inheriting classes.

Author: Marius Mikucionis mariu.nosp@m.s@cs.nosp@m..aau..nosp@m.dk

Definition at line 56 of file signalflow.h.

Member Typedef Documentation

exprref_t

typedef std::map<const symbol_t, expression_t> UTAP::SignalFlow::exprref_t

Definition at line 78 of file signalflow.h.

proc2strs_t

typedef std::map<const proc_t*, strs_t> UTAP::SignalFlow::proc2strs_t

Definition at line 65 of file signalflow.h.

procs_t

typedef std::set<proc_t*> UTAP::SignalFlow::procs_t

Definition at line 76 of file signalflow.h.

str2procs_t

typedef std::map<const char*, procs_t, less_str> UTAP::SignalFlow::str2procs_t

Definition at line 77 of file signalflow.h.

str2strs_t

typedef std::map<const char*, strs_t> UTAP::SignalFlow::str2strs_t

Definition at line 67 of file signalflow.h.

strs_t

typedef std::set<const char*, const less_str> UTAP::SignalFlow::strs_t

Definition at line 64 of file signalflow.h.

Constructor & Destructor Documentation

SignalFlow()

SignalFlow::SignalFlow	(	const char *	_title,
		TimedAutomataSystem &	ta
	)

Analyse the system and extract I/O information:

Definition at line 50 of file signalflow.cpp.

References UTAP::TimedAutomataSystem::getProcesses(), and visitProcess().

Referenced by popIO().

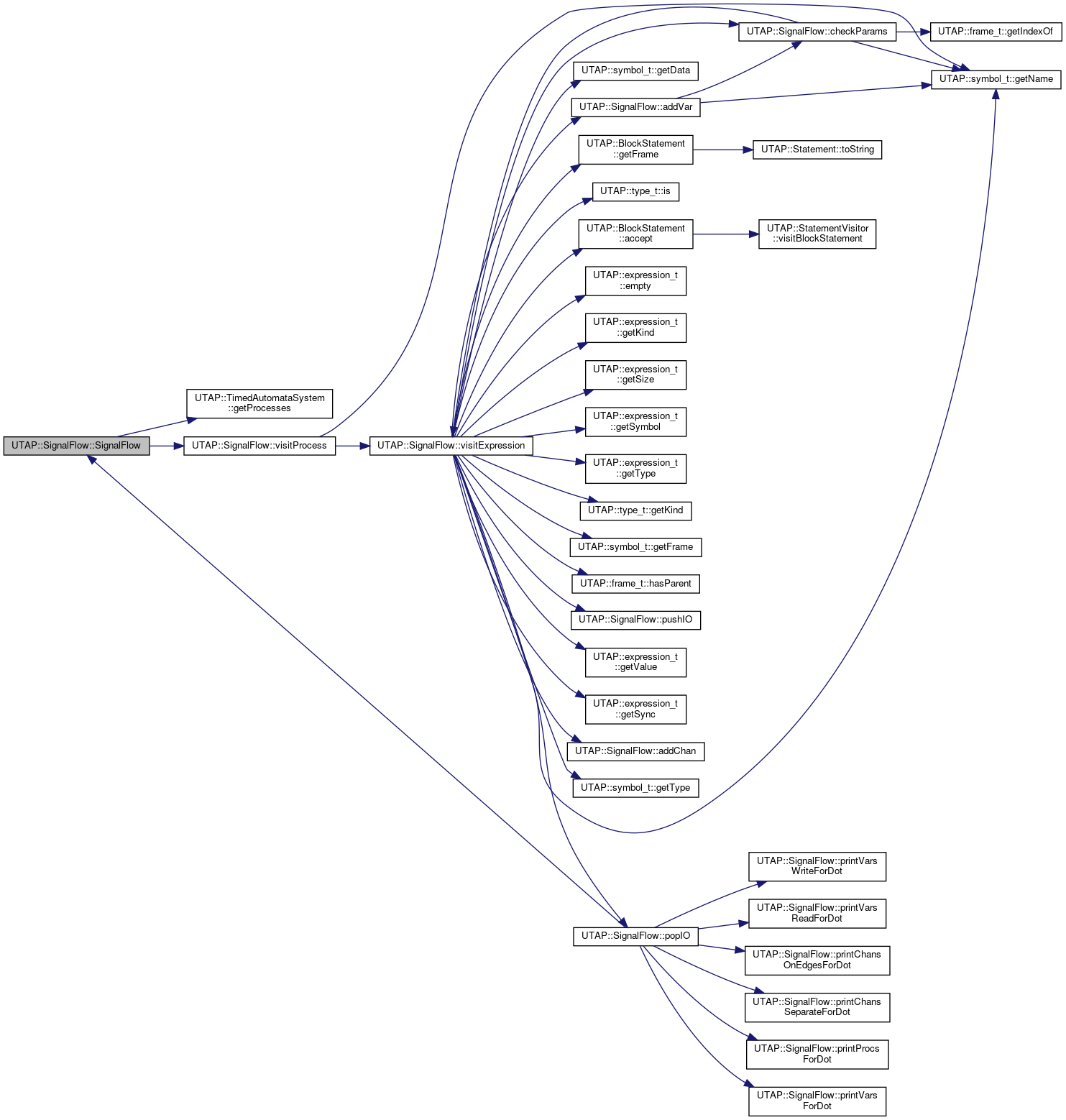

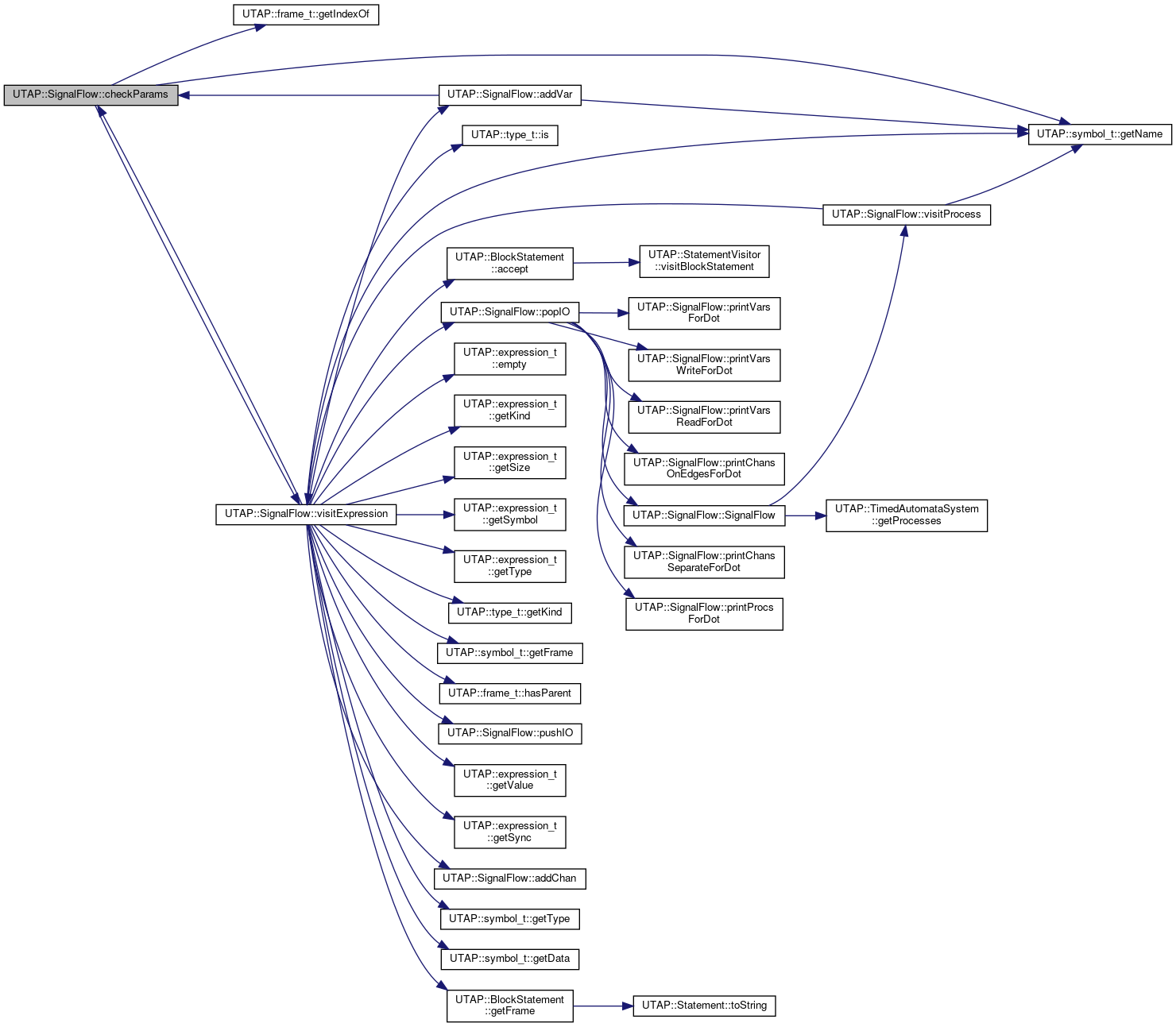

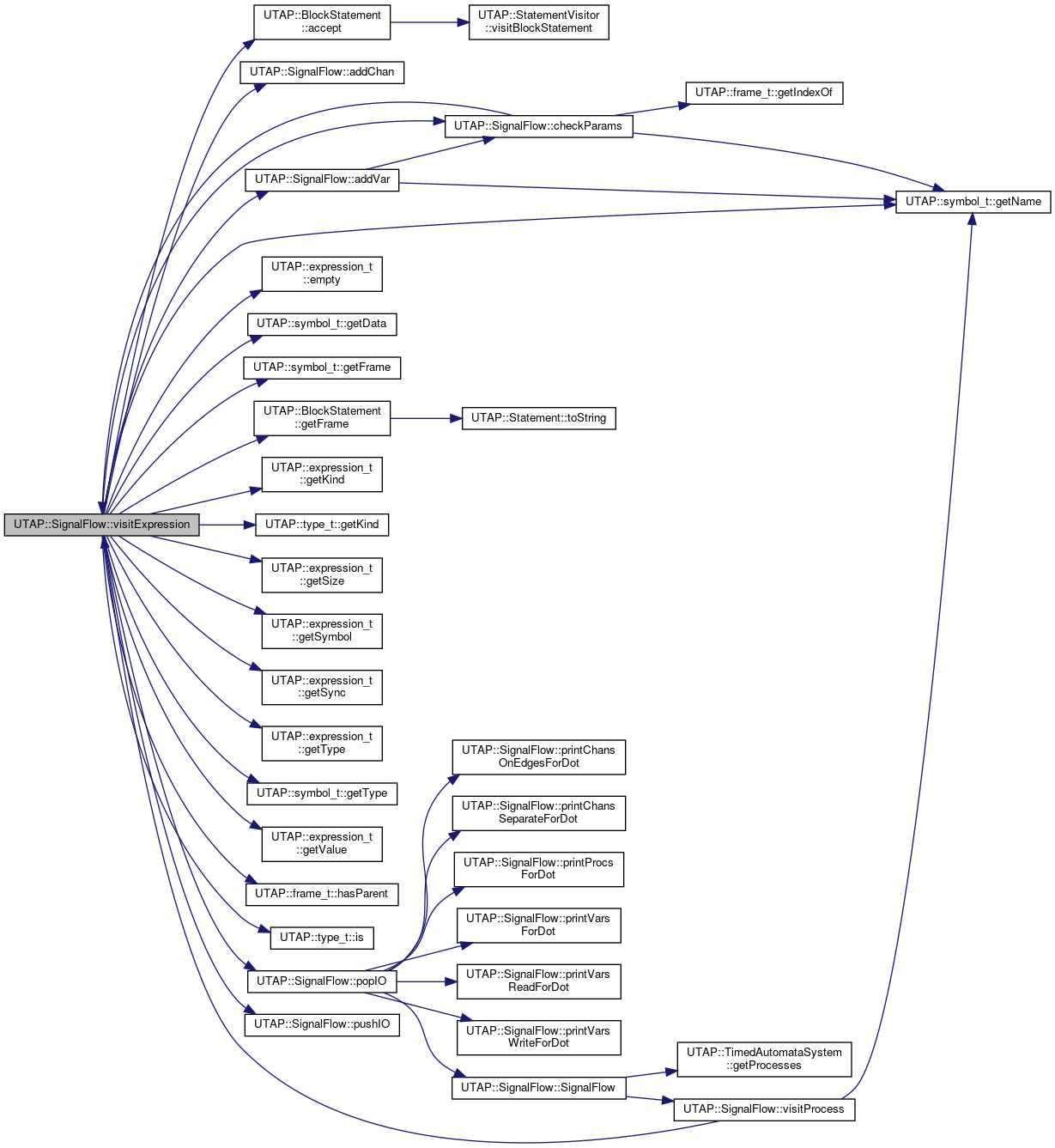

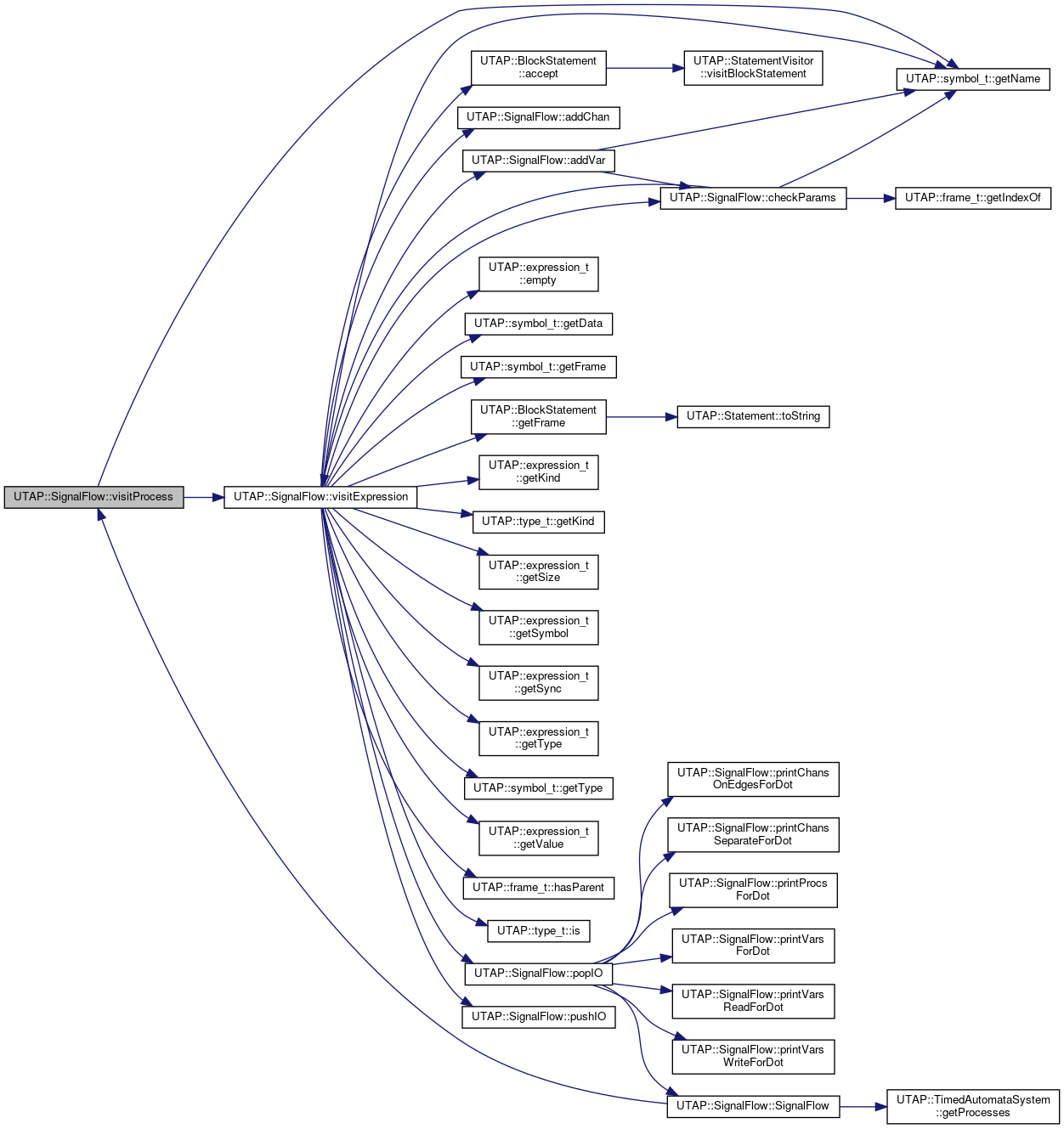

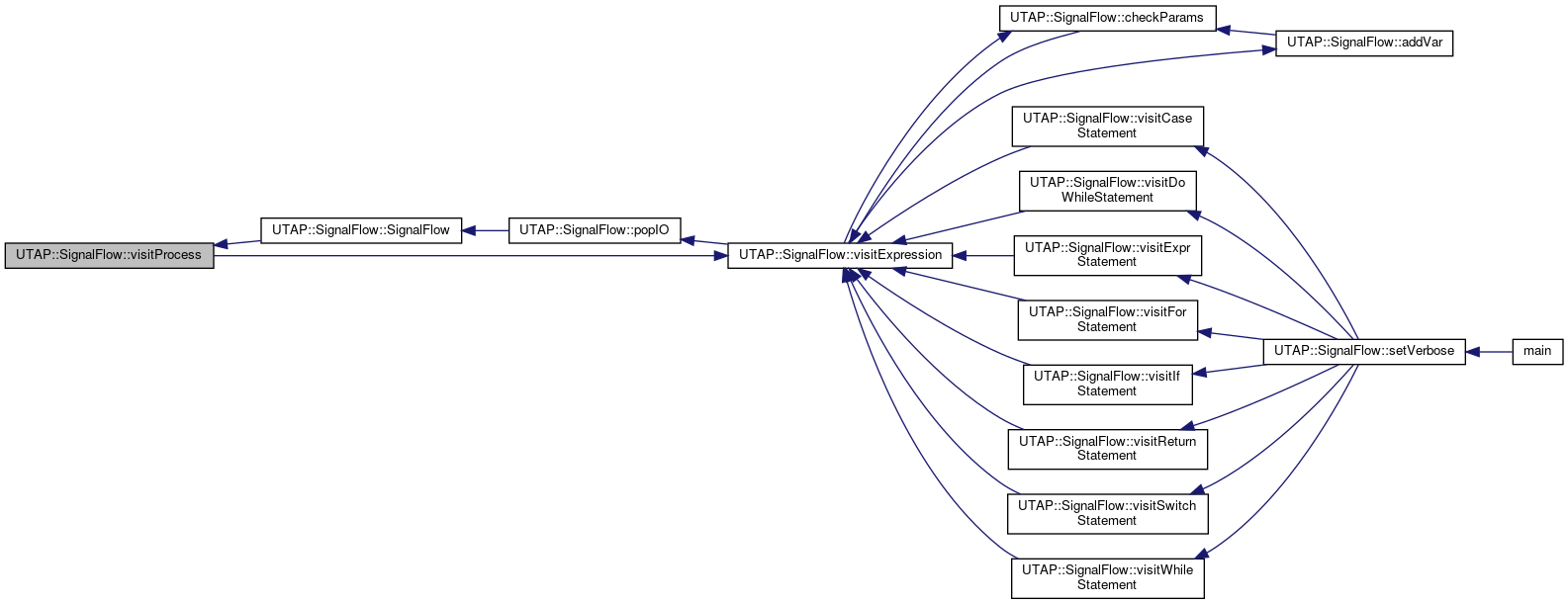

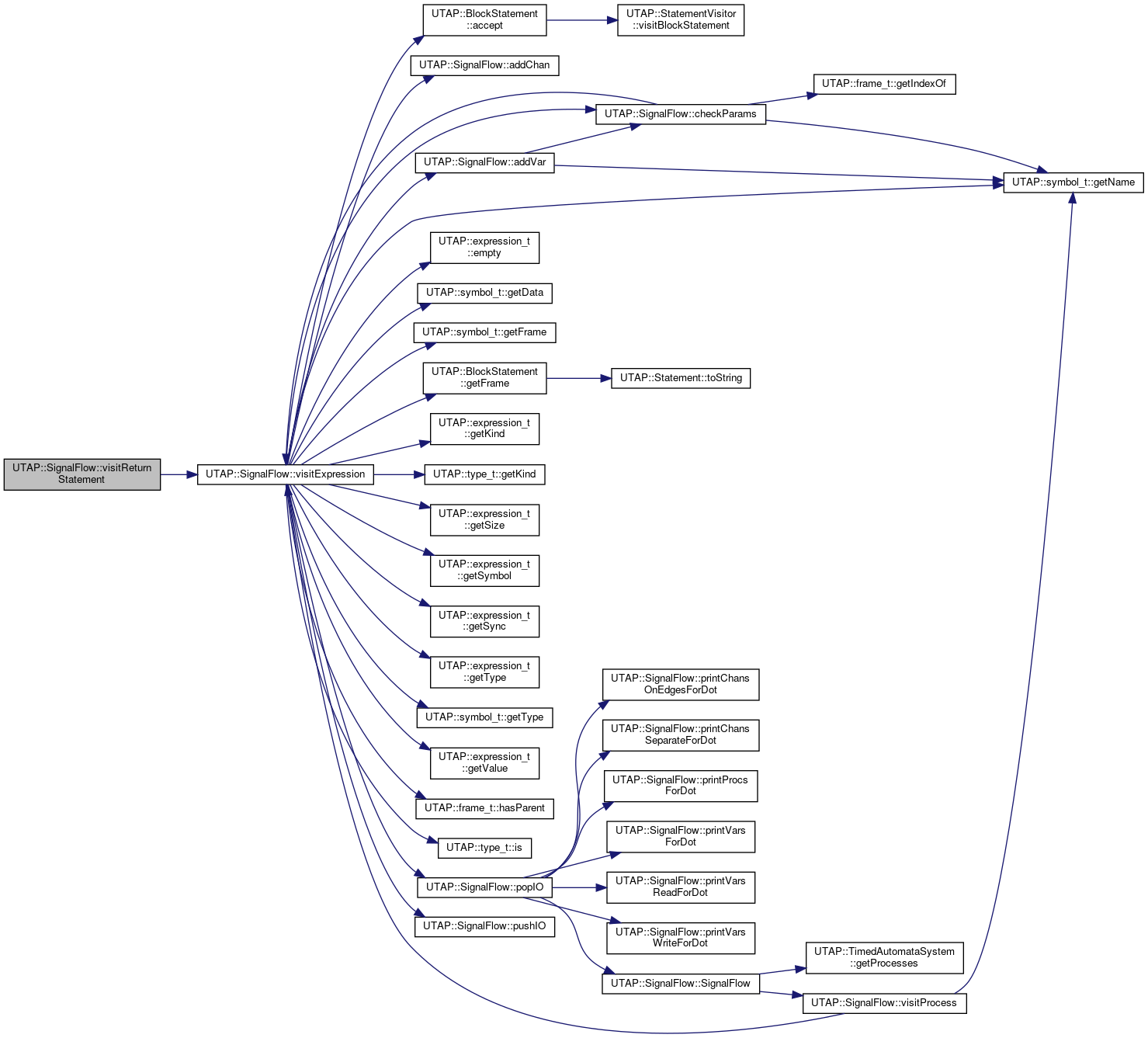

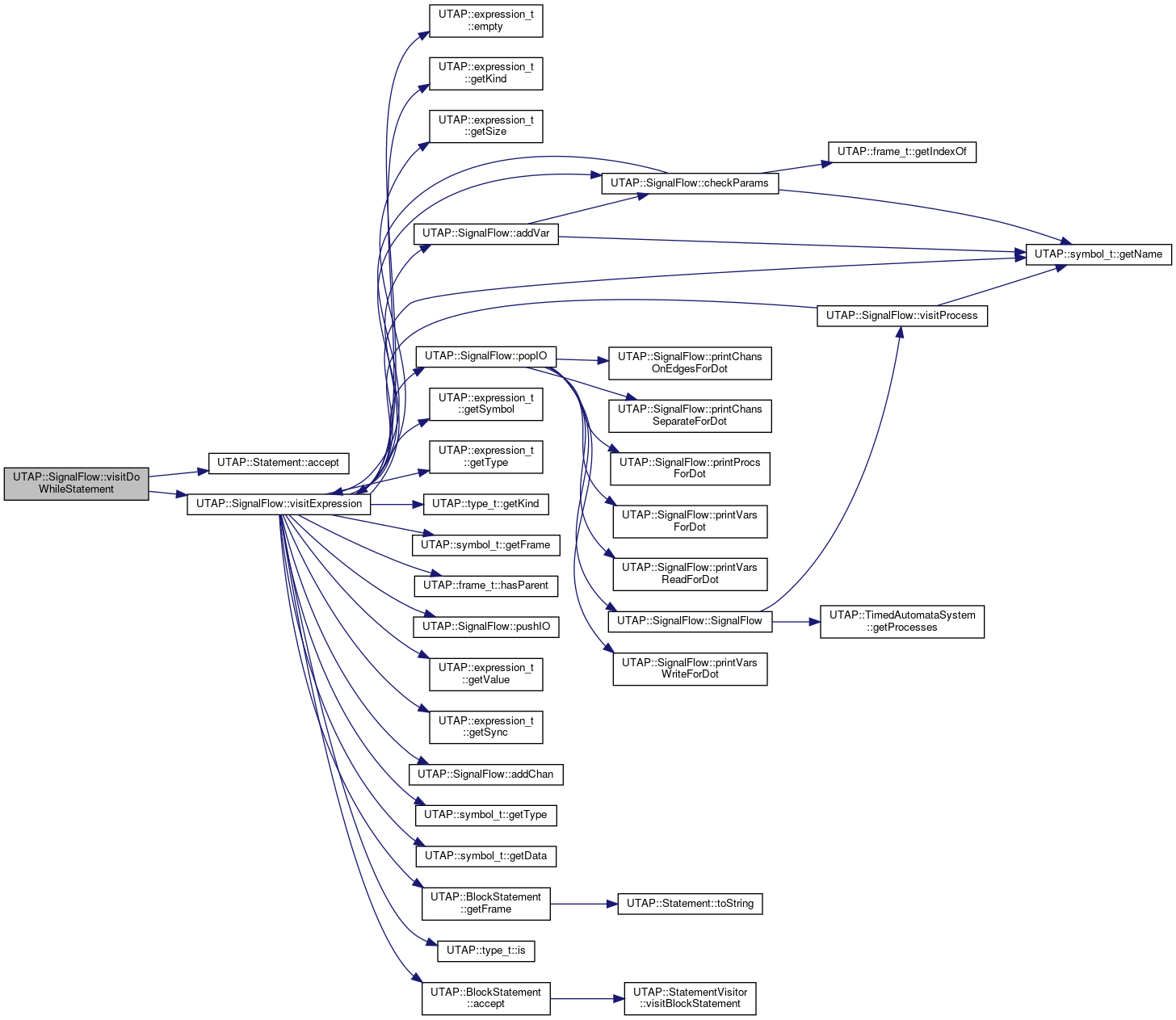

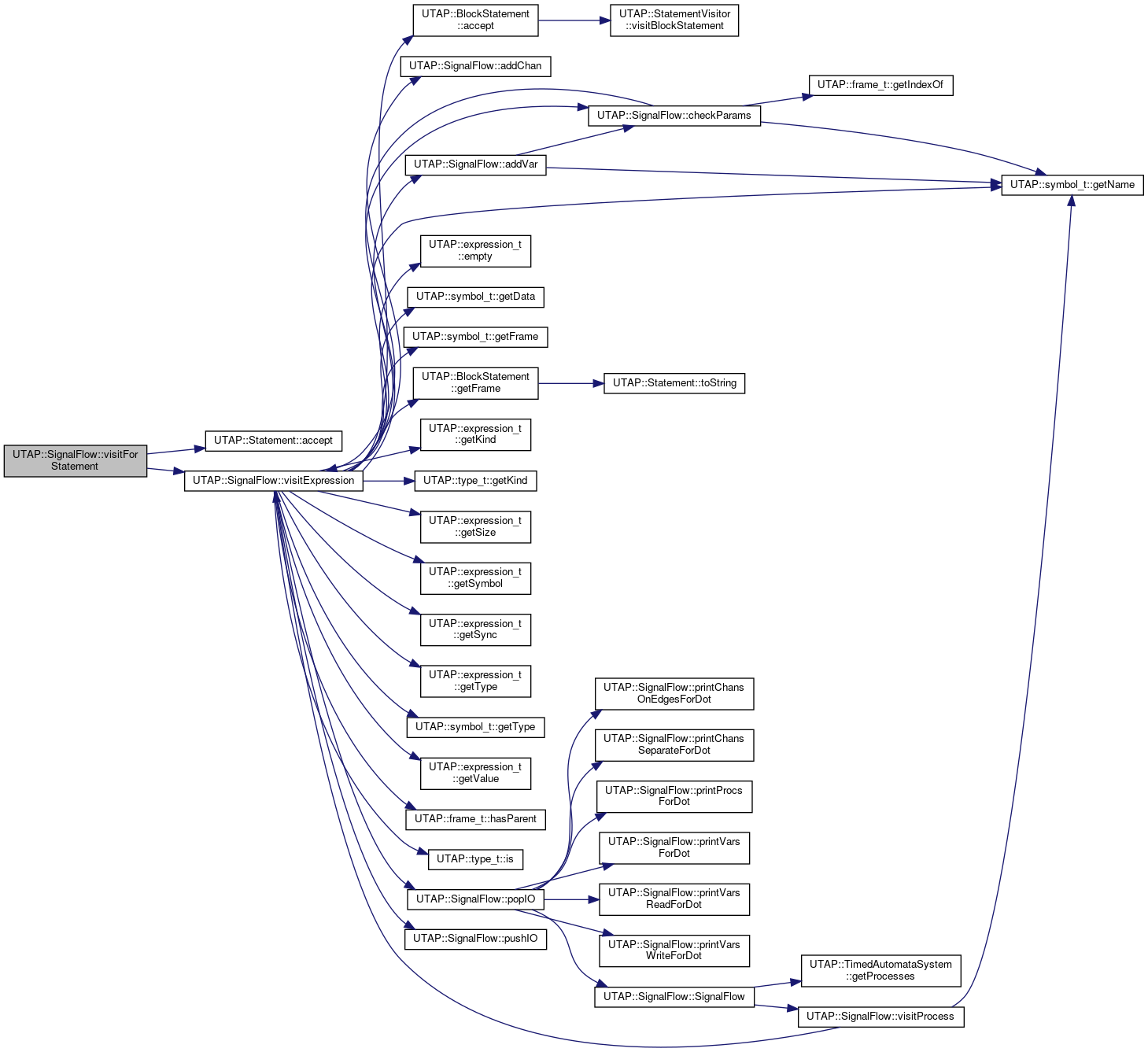

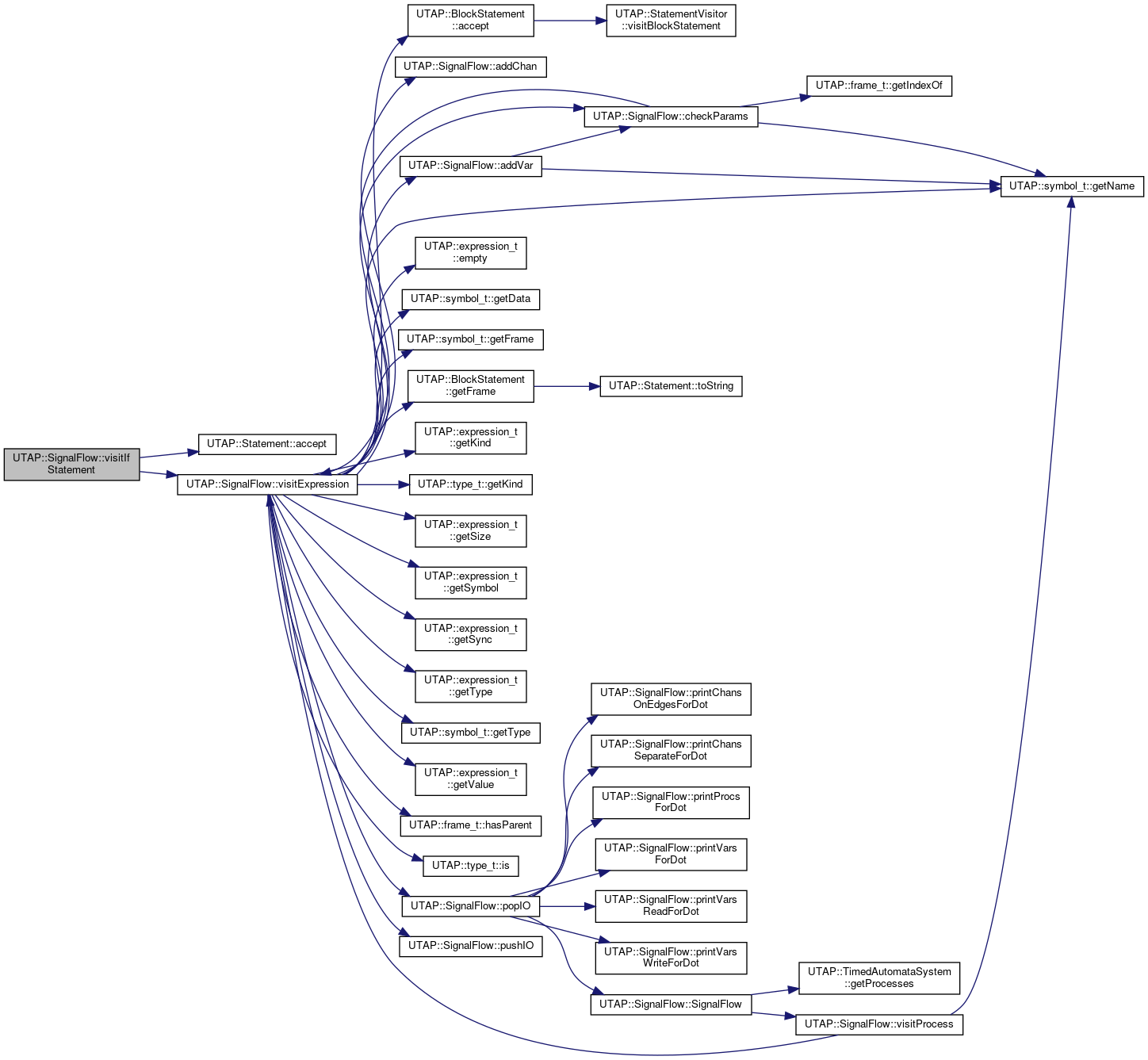

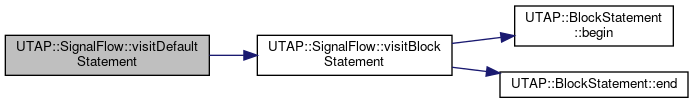

Here is the call graph for this function:

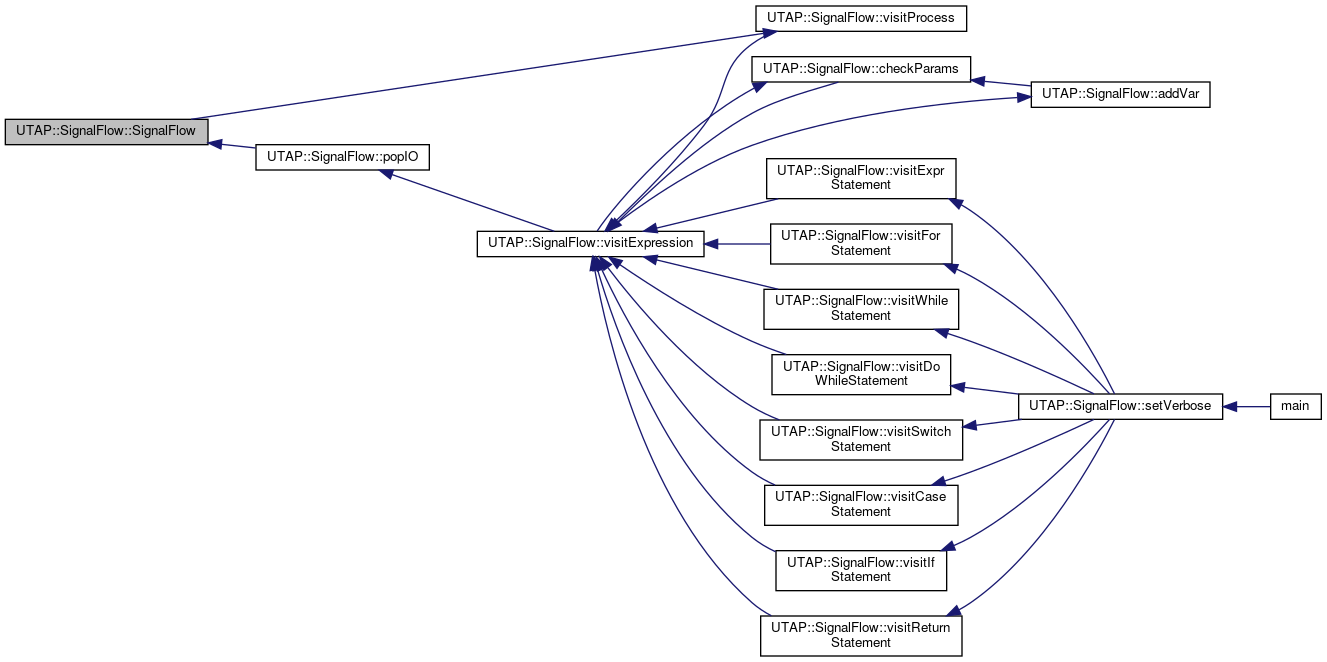

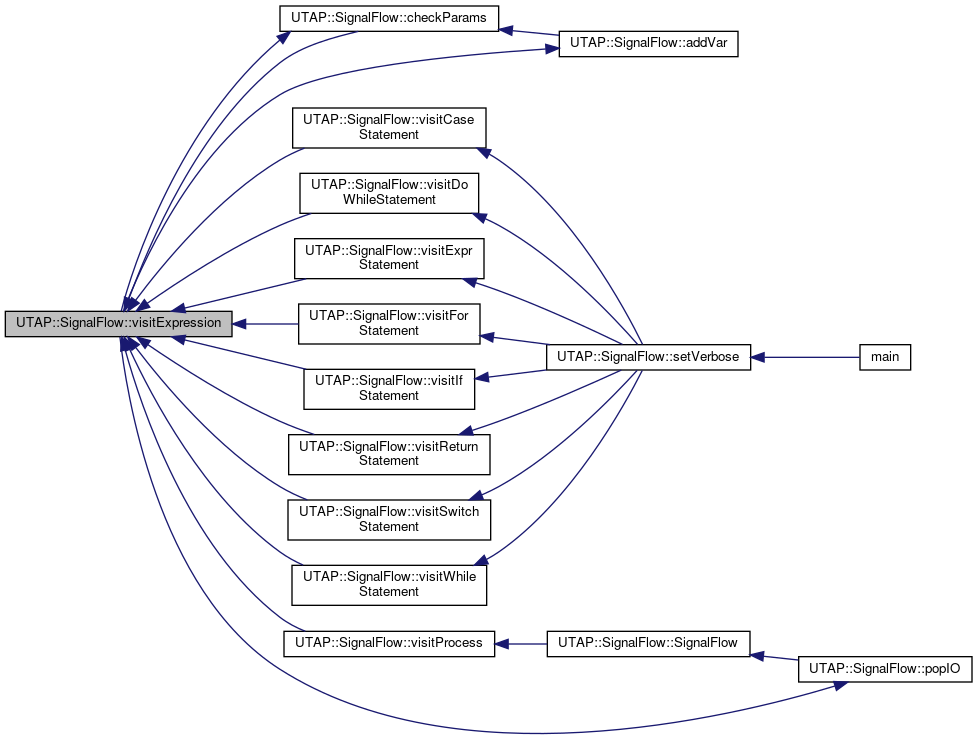

Here is the caller graph for this function:

~SignalFlow()

SignalFlow::~SignalFlow ( )

virtual

All strings are from TASystem (don't dispose TASystem before SignalFlow).

Definition at line 789 of file signalflow.cpp.

References channels, and procs.

Referenced by setVerbose().

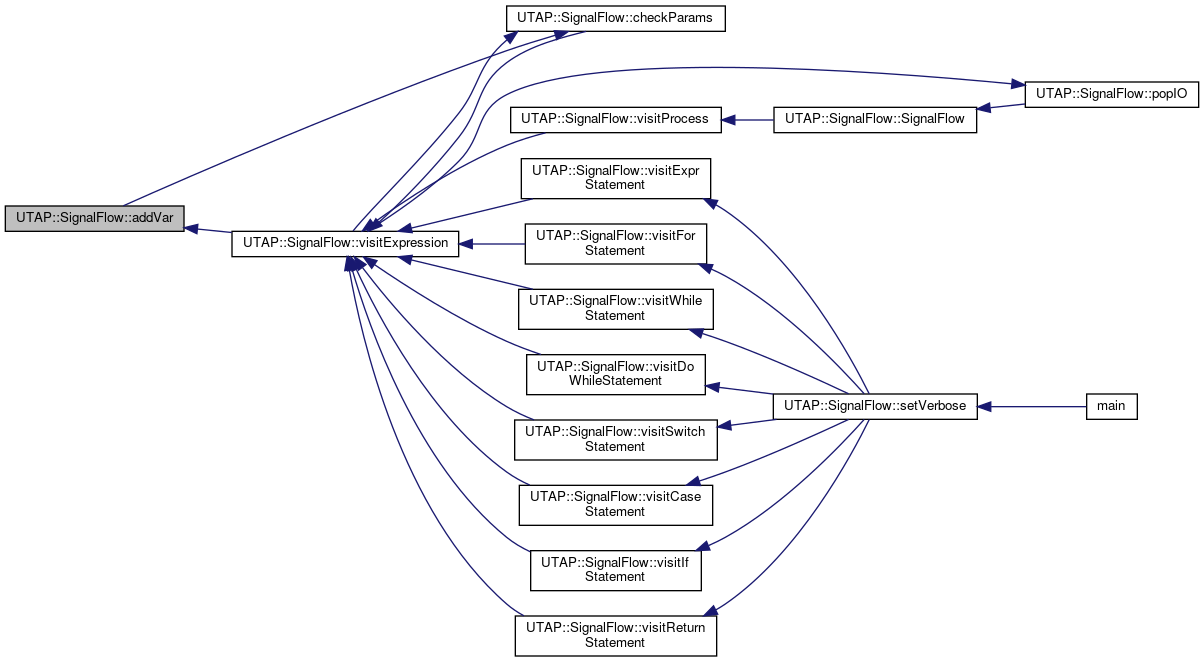

Here is the caller graph for this function:

Member Function Documentation

addChan()

void SignalFlow::addChan ( const std::string &  s, strs_t &  ids, str2procs_t &  index  )

protected

Definition at line 394 of file signalflow.cpp.

References cChan, channels, and cTA.

Referenced by visitExpression().

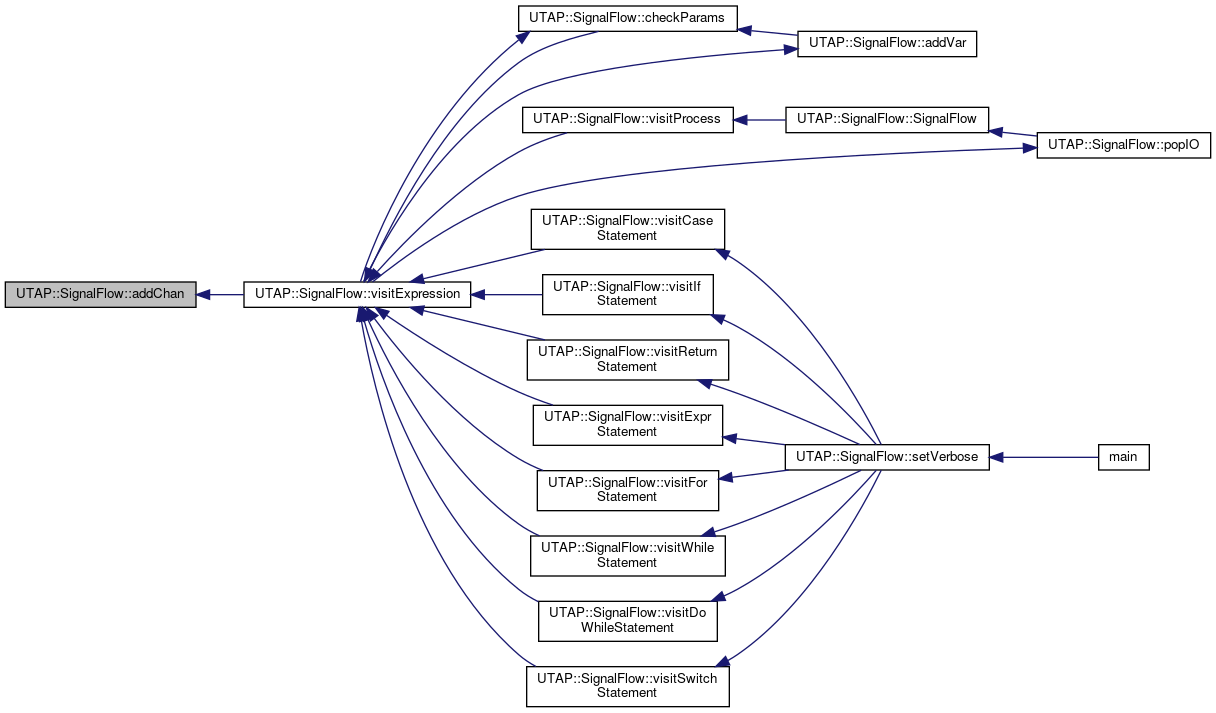

Here is the caller graph for this function:

addVar()

void SignalFlow::addVar ( const symbol_t &  s, str2strs_t &  ids, str2procs_t &  index  )

protected

Definition at line 407 of file signalflow.cpp.

References cChan, checkParams(), cTA, UTAP::symbol_t::getName(), and variables.

Referenced by visitExpression().

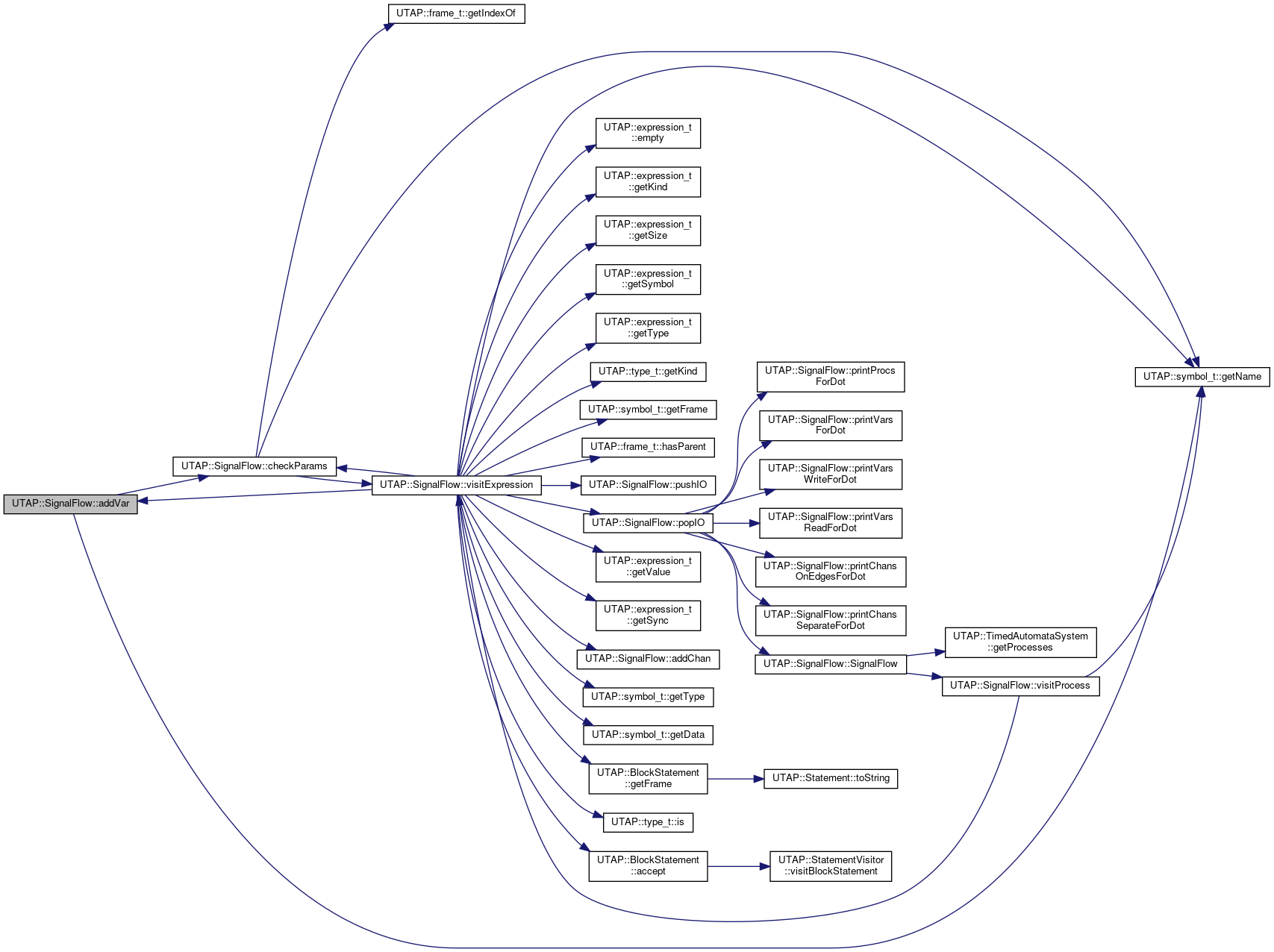

Here is the call graph for this function:

Here is the caller graph for this function:

checkParams()

bool SignalFlow::checkParams ( const symbol_t &  s )

protected

Definition at line 359 of file signalflow.cpp.

References cP, UTAP::declarations_t::frame, UTAP::frame_t::getIndexOf(), UTAP::symbol_t::getName(), UTAP::instance_t::mapping, UTAP::instance_t::parameters, paramsExpanded, UTAP::instance_t::templ, and visitExpression().

Referenced by addVar(), and visitExpression().

Here is the call graph for this function:

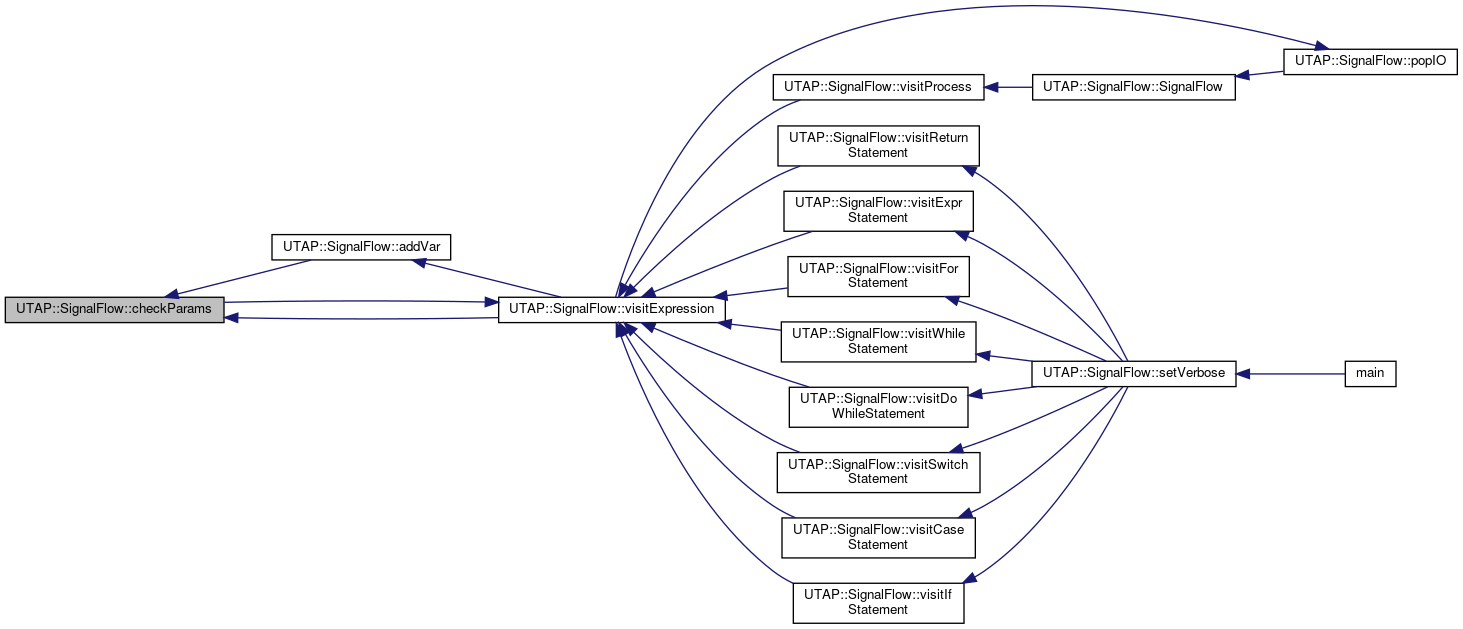

Here is the caller graph for this function:

popIO()

void UTAP::SignalFlow::popIO ( )

inlineprotected

Definition at line 103 of file signalflow.h.

References printChansOnEdgesForDot(), printChansSeparateForDot(), printProcsForDot(), printVarsForDot(), printVarsReadForDot(), printVarsWriteForDot(), and SignalFlow().

Referenced by visitExpression().

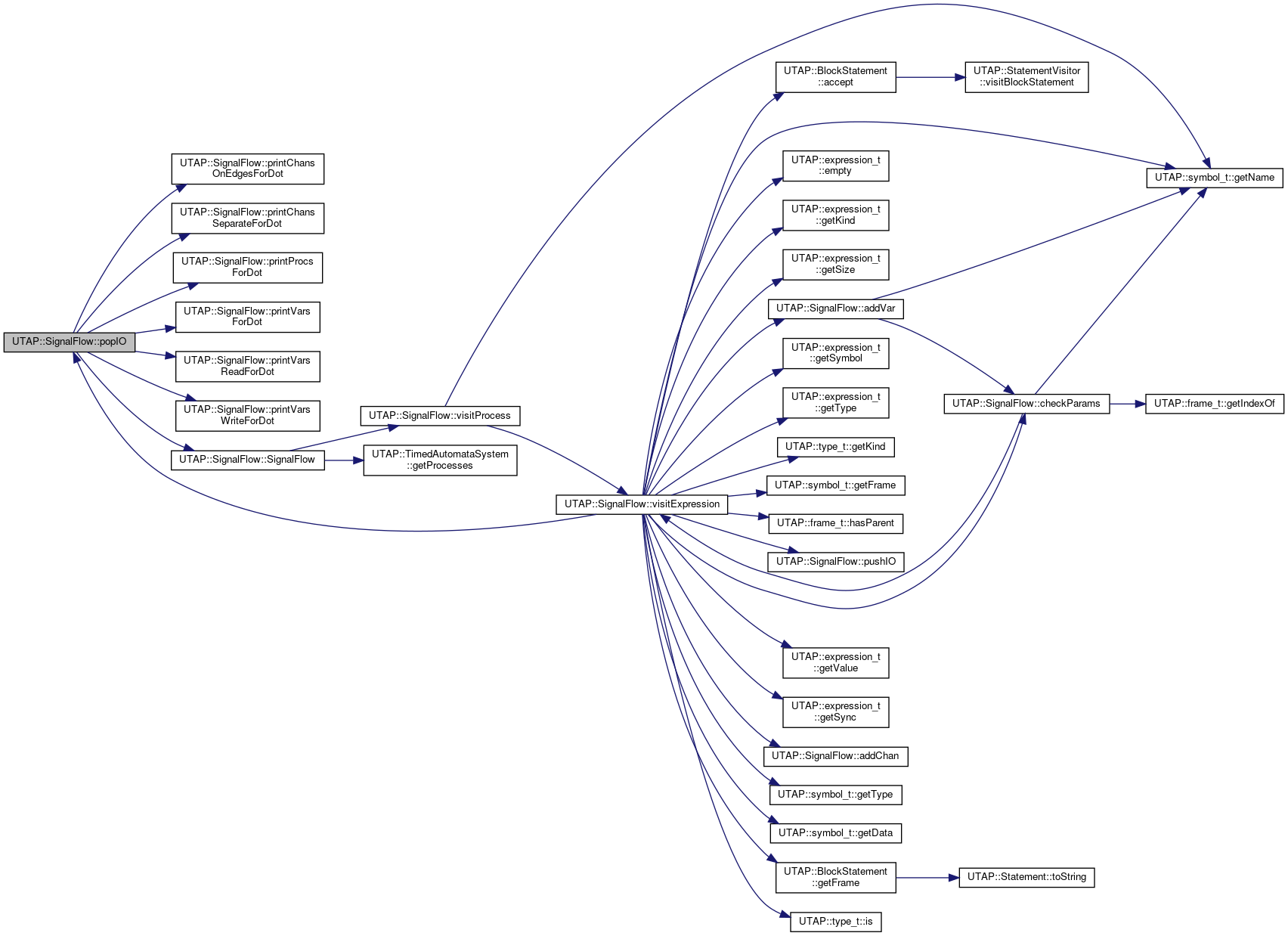

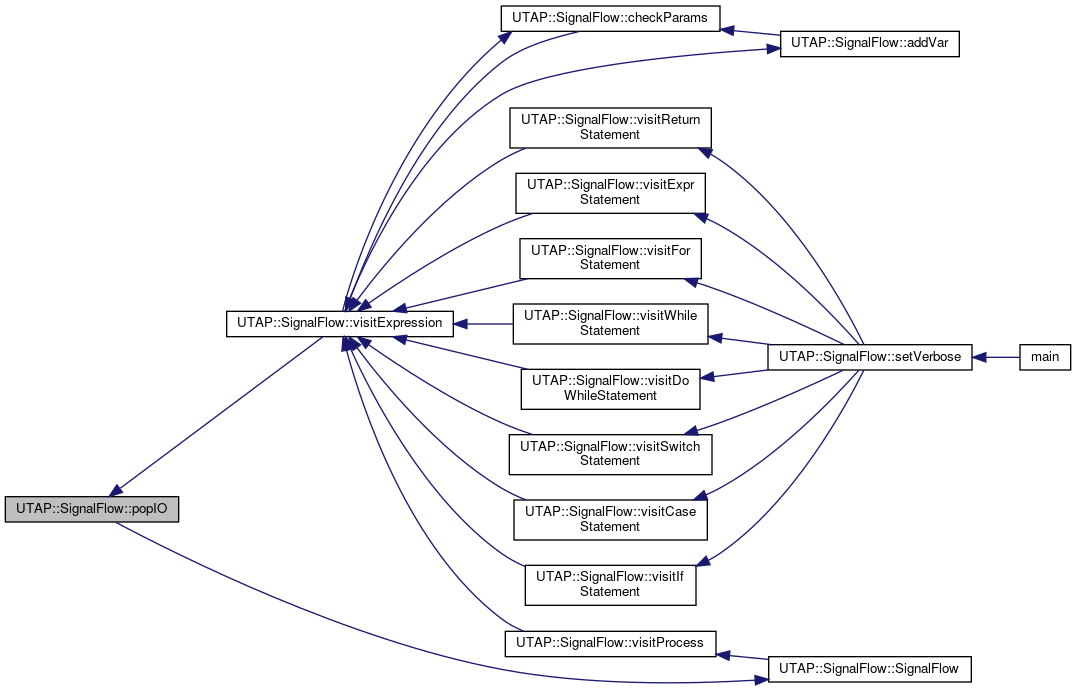

Here is the call graph for this function:

Here is the caller graph for this function:

printChansOnEdgesForDot()

void SignalFlow::printChansOnEdgesForDot ( std::ostream &  os )

protectedvirtual

Definition at line 197 of file signalflow.cpp.

References ch, procs, receivers, and transmitters.

Referenced by popIO(), and printForDot().

Here is the caller graph for this function:

printChansSeparateForDot()

void SignalFlow::printChansSeparateForDot ( std::ostream &  os, bool  ranked, bool  erd  )

protectedvirtual

Definition at line 290 of file signalflow.cpp.

References channels, and procs.

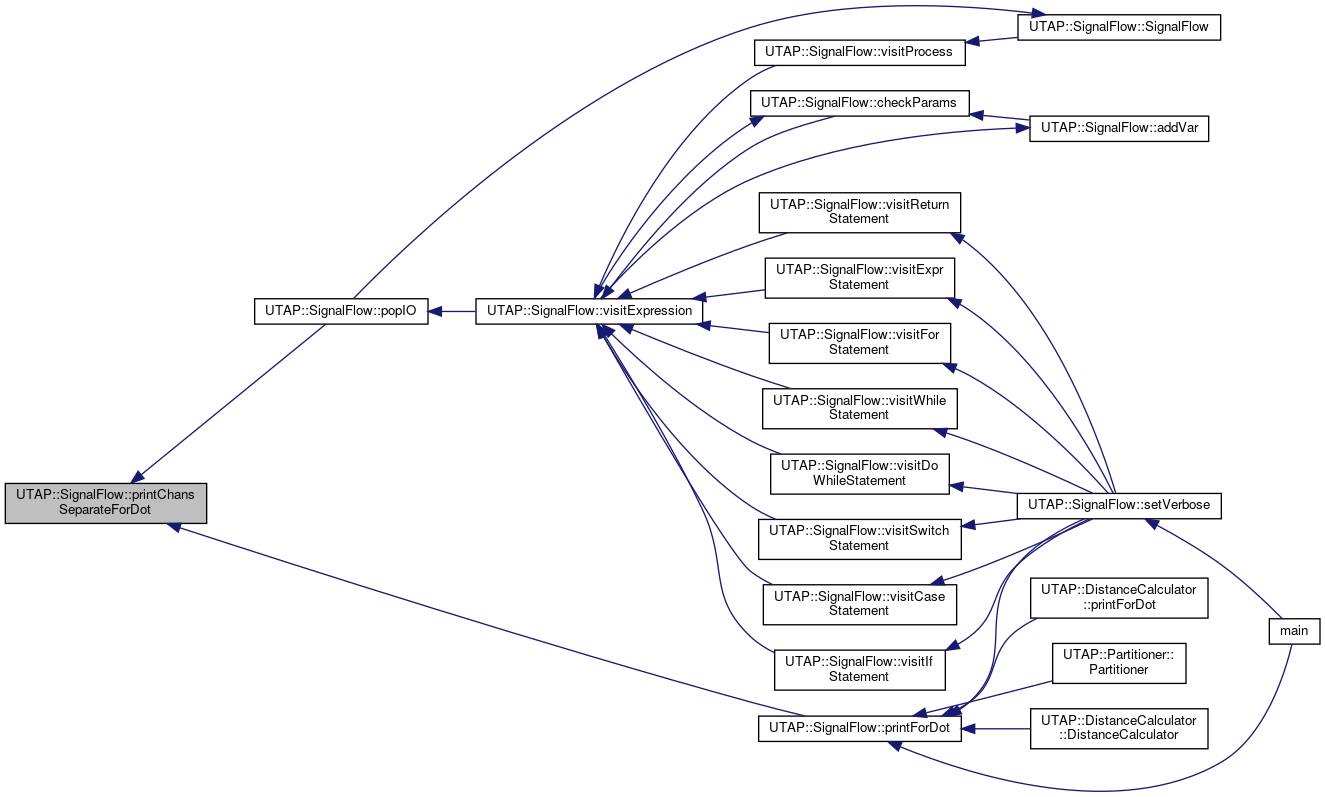

Referenced by popIO(), and printForDot().

Here is the caller graph for this function:

printForDot()

void SignalFlow::printForDot ( std::ostream &  os, bool  ranked, bool  erd, bool  cEdged  )

virtual

Print I/O information in DOT format into given output stream.

ranked – puts oposite "ranks" on variables and channels erd – puts boxes and diamonds rather than (compact) ellipses. cEdged – channels are printed on edges rather than separate nodes.

Reimplemented in UTAP::DistanceCalculator, and UTAP::Partitioner.

Definition at line 326 of file signalflow.cpp.

References channels, printChansOnEdgesForDot(), printChansSeparateForDot(), printProcsForDot(), printVarsForDot(), printVarsReadForDot(), printVarsWriteForDot(), procs, title, and variables.

Referenced by UTAP::DistanceCalculator::DistanceCalculator(), main(), UTAP::Partitioner::Partitioner(), UTAP::DistanceCalculator::printForDot(), and setVerbose().

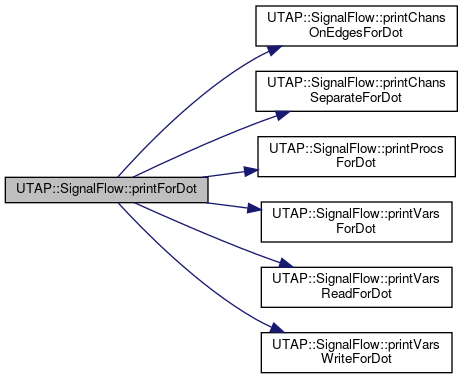

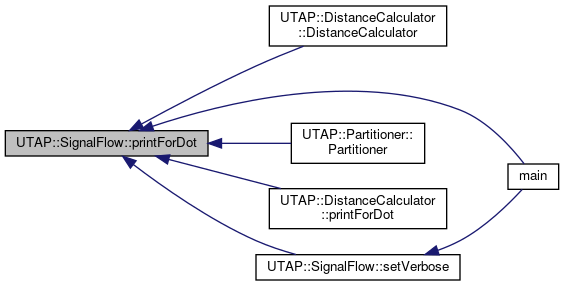

Here is the call graph for this function:

Here is the caller graph for this function:

printForTron()

void SignalFlow::printForTron

(

std::ostream &

os

)

Print I/O information in TRON format into given output stream.

Definition at line 66 of file signalflow.cpp.

References procs.

Referenced by main(), and setVerbose().

Here is the caller graph for this function:

printProcsForDot()

void SignalFlow::printProcsForDot ( std::ostream &  os, bool  erd  )

protectedvirtual

Reimplemented in UTAP::DistanceCalculator.

Definition at line 101 of file signalflow.cpp.

References procs.

Referenced by popIO(), and printForDot().

Here is the caller graph for this function:

printVarsForDot()

void SignalFlow::printVarsForDot ( std::ostream &  os, bool  ranked, bool  erd  )

protectedvirtual

Reimplemented in UTAP::DistanceCalculator.

Definition at line 120 of file signalflow.cpp.

References transmitters, and variables.

Referenced by popIO(), and printForDot().

Here is the caller graph for this function:

printVarsReadForDot()

void SignalFlow::printVarsReadForDot ( std::ostream &  os )

protectedvirtual

Definition at line 175 of file signalflow.cpp.

References procs.

Referenced by popIO(), and printForDot().

Here is the caller graph for this function:

printVarsWriteForDot()

void SignalFlow::printVarsWriteForDot ( std::ostream &  os )

protectedvirtual

Definition at line 153 of file signalflow.cpp.

References procs.

Referenced by popIO(), and printForDot().

Here is the caller graph for this function:

pushIO()

void UTAP::SignalFlow::pushIO ( )

inlineprotected

Definition at line 100 of file signalflow.h.

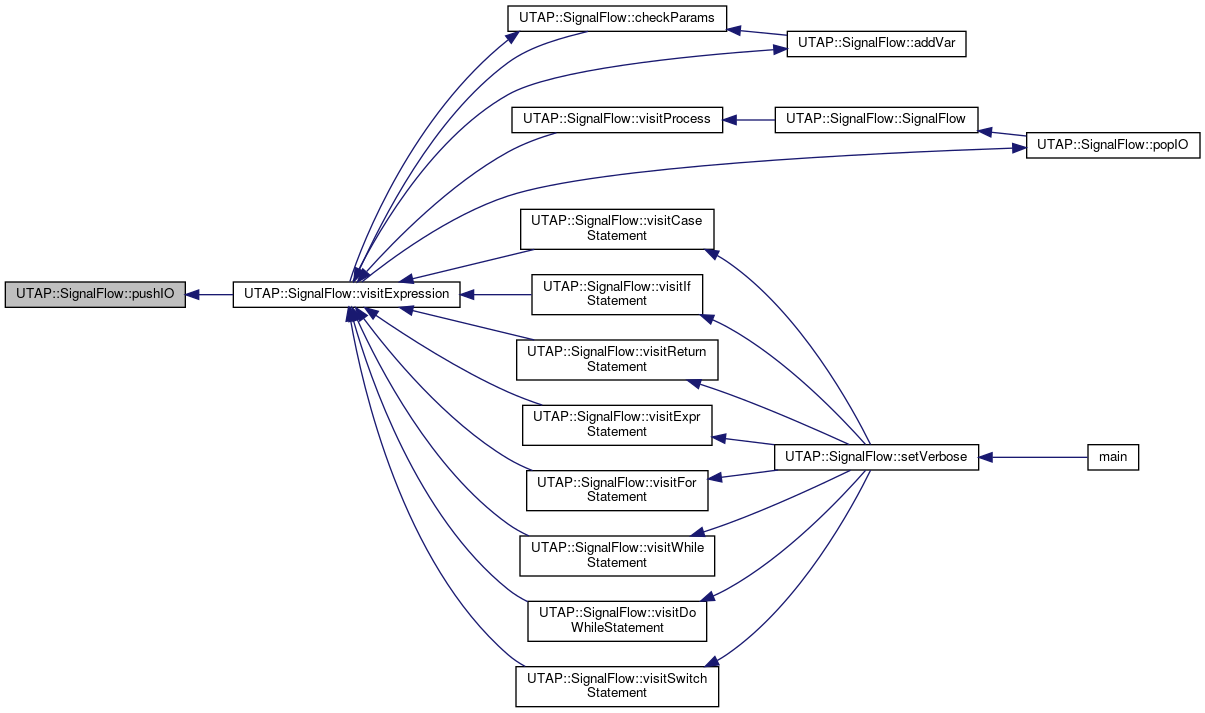

Referenced by visitExpression().

Here is the caller graph for this function:

setVerbose()

void UTAP::SignalFlow::setVerbose ( int  verbose )

inline

Definition at line 129 of file signalflow.h.

References printForDot(), printForTron(), visitAssertStatement(), visitBlockStatement(), visitBreakStatement(), visitCaseStatement(), visitContinueStatement(), visitDefaultStatement(), visitDoWhileStatement(), visitEmptyStatement(), visitExprStatement(), visitForStatement(), visitIfStatement(), visitIterationStatement(), visitReturnStatement(), visitSwitchStatement(), visitWhileStatement(), and ~SignalFlow().

Referenced by main().

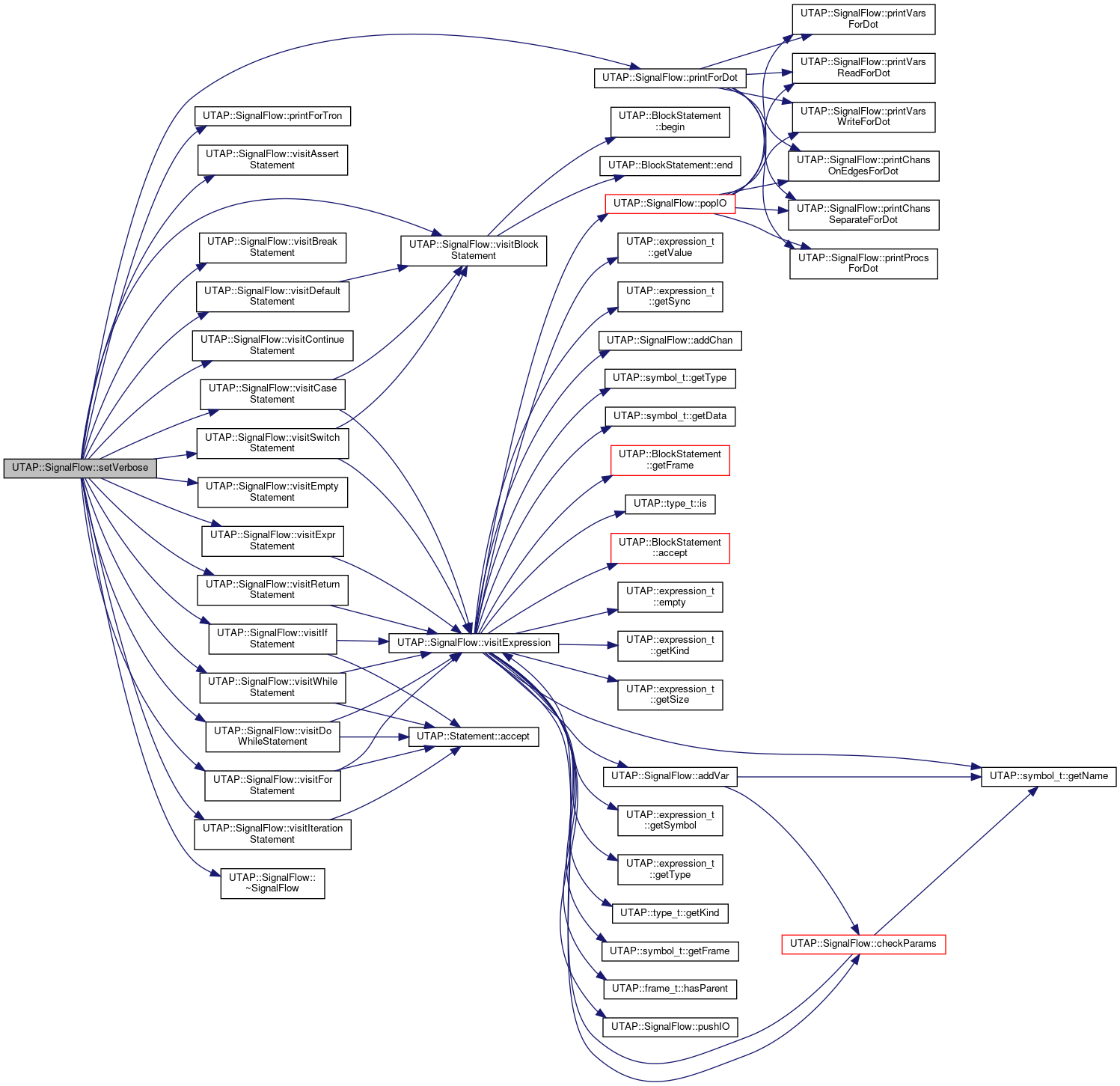

Here is the call graph for this function:

Here is the caller graph for this function:

visitAssertStatement()

int32_t SignalFlow::visitAssertStatement ( UTAP::AssertStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 778 of file signalflow.cpp.

Referenced by setVerbose().

Here is the caller graph for this function:

visitBlockStatement()

int32_t SignalFlow::visitBlockStatement ( BlockStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 729 of file signalflow.cpp.

References UTAP::BlockStatement::begin(), and UTAP::BlockStatement::end().

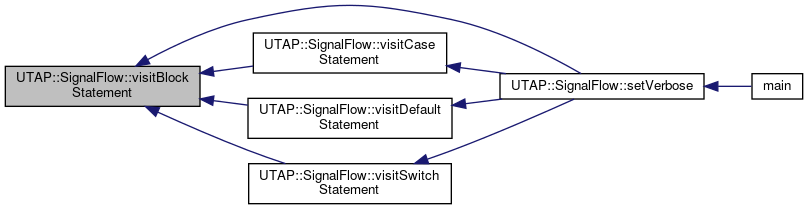

Referenced by setVerbose(), visitCaseStatement(), visitDefaultStatement(), and visitSwitchStatement().

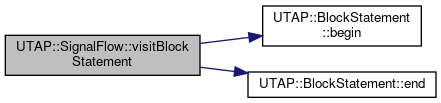

Here is the call graph for this function:

Here is the caller graph for this function:

visitBreakStatement()

int32_t SignalFlow::visitBreakStatement ( BreakStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 768 of file signalflow.cpp.

Referenced by setVerbose().

Here is the caller graph for this function:

visitCaseStatement()

int32_t SignalFlow::visitCaseStatement ( CaseStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 747 of file signalflow.cpp.

References UTAP::CaseStatement::cond, visitBlockStatement(), and visitExpression().

Referenced by setVerbose().

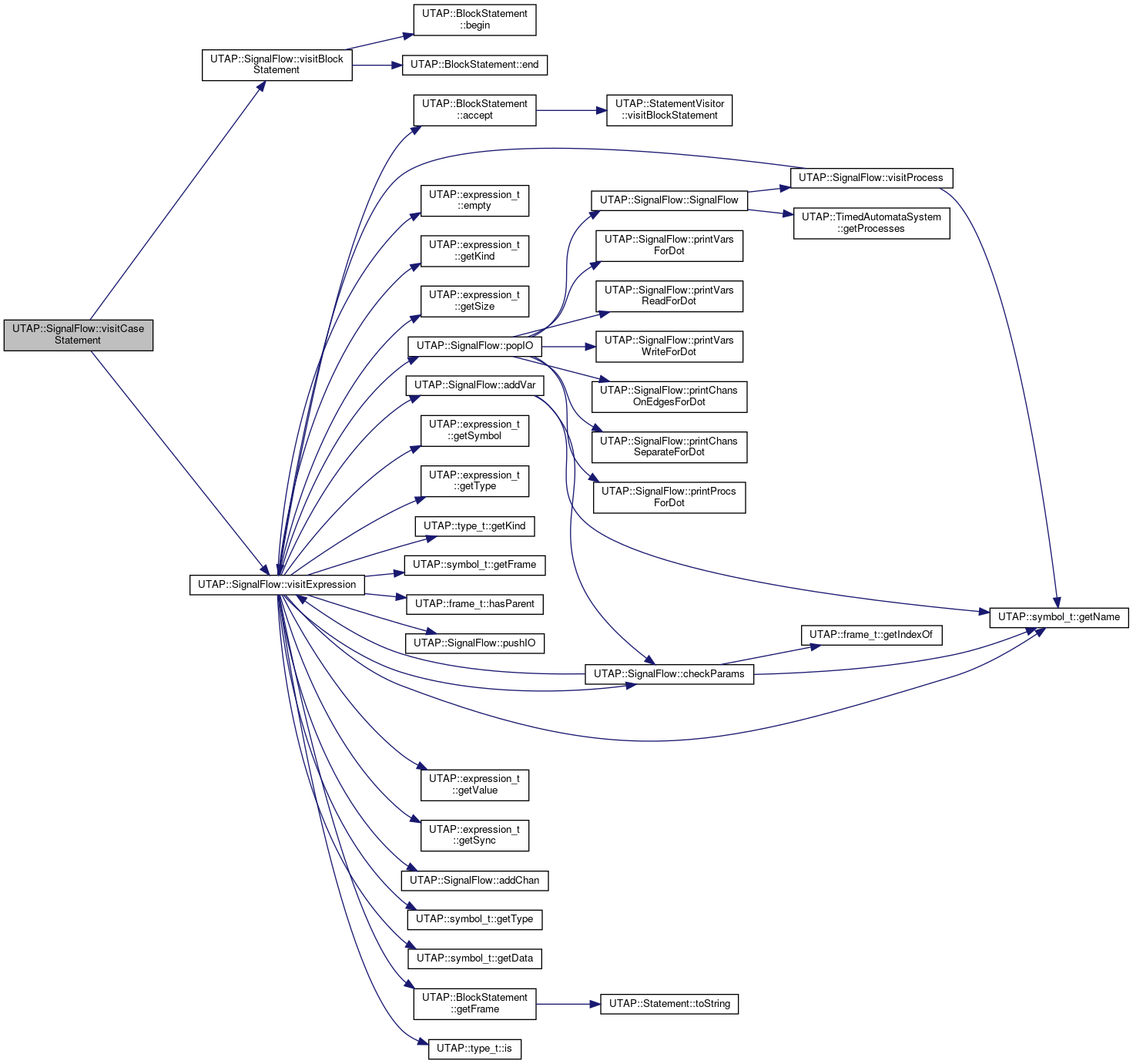

Here is the call graph for this function:

Here is the caller graph for this function:

visitContinueStatement()

int32_t SignalFlow::visitContinueStatement ( ContinueStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 773 of file signalflow.cpp.

Referenced by setVerbose().

Here is the caller graph for this function:

visitDefaultStatement()

int32_t SignalFlow::visitDefaultStatement ( DefaultStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 753 of file signalflow.cpp.

References visitBlockStatement().

Referenced by setVerbose().

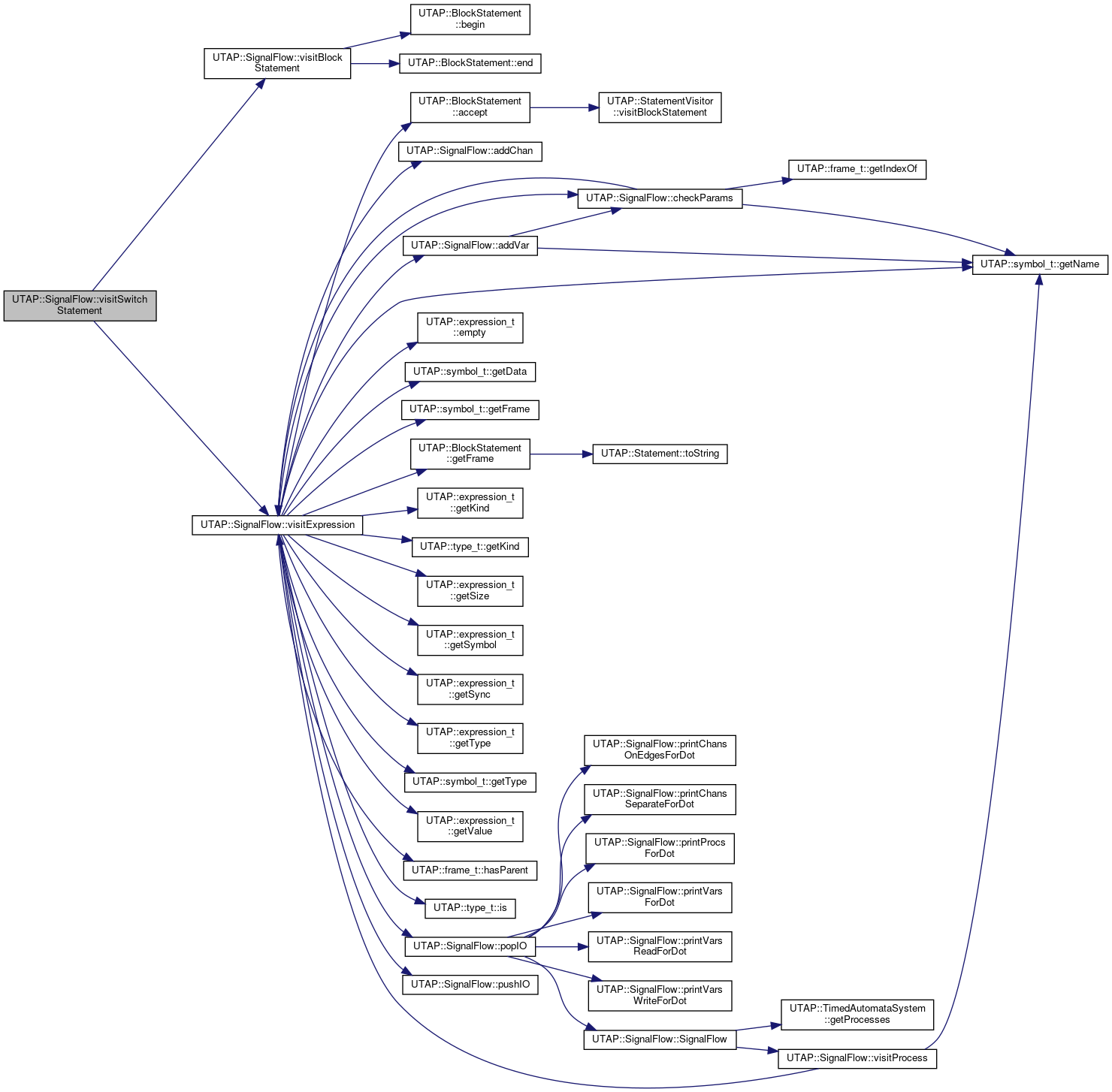

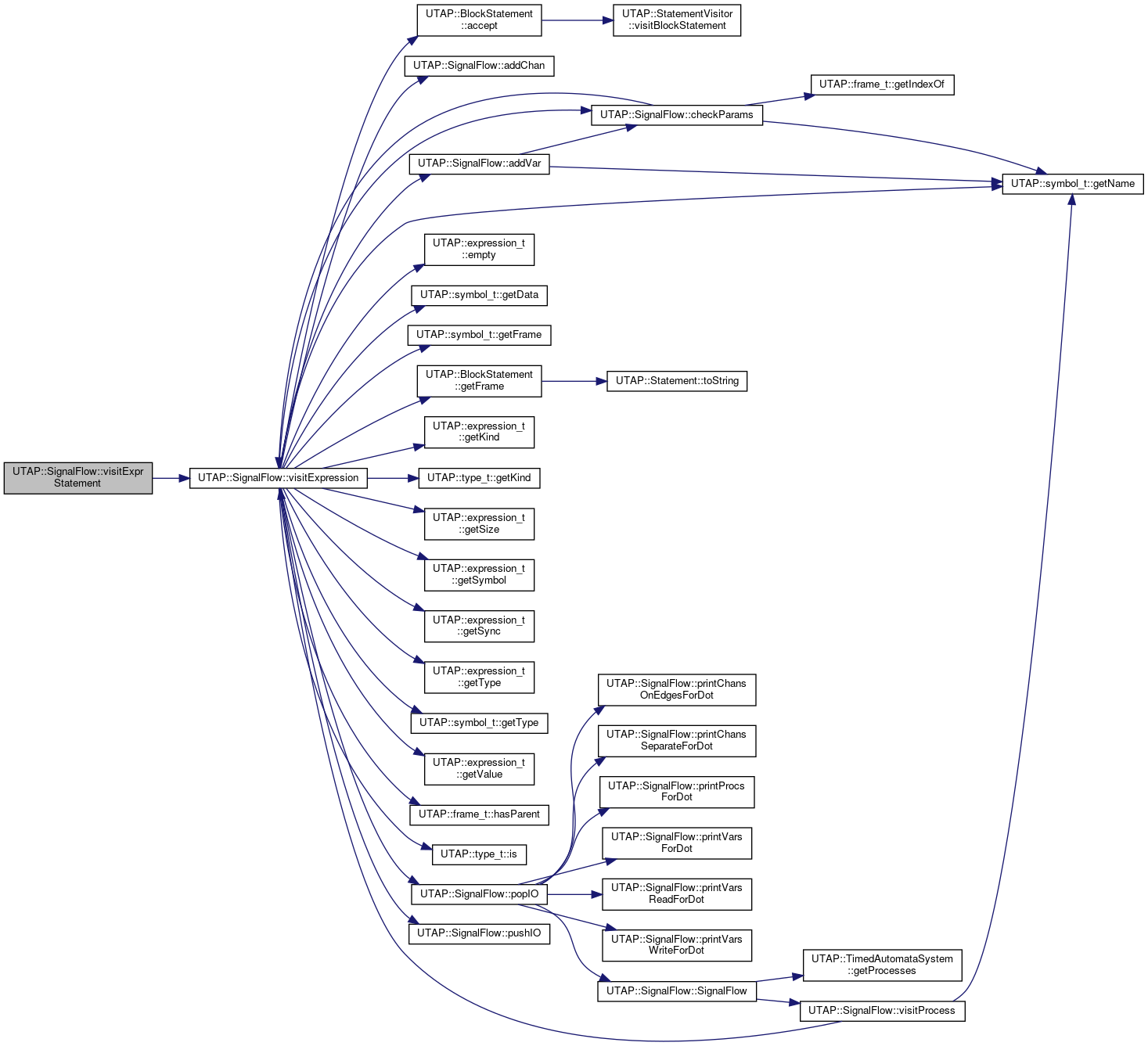

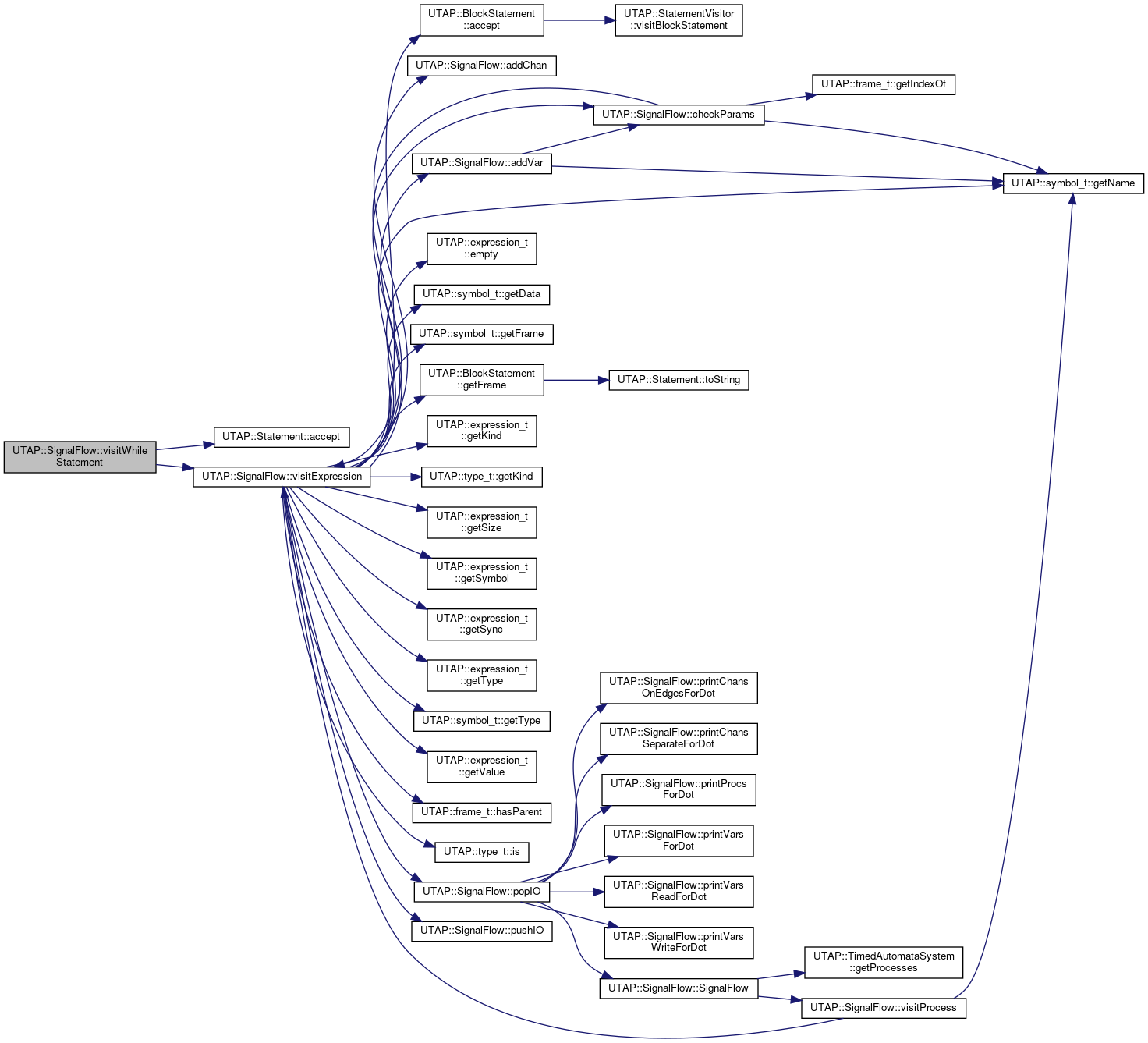

Here is the call graph for this function:

Here is the caller graph for this function:

visitDoWhileStatement()

int32_t SignalFlow::visitDoWhileStatement ( DoWhileStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 722 of file signalflow.cpp.

References UTAP::Statement::accept(), UTAP::DoWhileStatement::cond, UTAP::DoWhileStatement::stat, and visitExpression().

Referenced by setVerbose().

Here is the call graph for this function:

Here is the caller graph for this function:

visitEmptyStatement()

int32_t SignalFlow::visitEmptyStatement ( EmptyStatement *  stat )

overridevirtual

System visitor pattern extracts read/write information from UCode.

This is actually "const" visitor and should contain "const Statement *stat".

Implements UTAP::StatementVisitor.

Definition at line 691 of file signalflow.cpp.

Referenced by setVerbose().

Here is the caller graph for this function:

visitExpression()

void SignalFlow::visitExpression ( const expression_t &  e )

protected

Definition at line 444 of file signalflow.cpp.

References UTAP::BlockStatement::accept(), addChan(), addVar(), UTAP::Constants::AND, UTAP::Constants::ARRAY, UTAP::Constants::ASSAND, UTAP::Constants::ASSDIV, UTAP::Constants::ASSIGN, UTAP::Constants::ASSLSHIFT, UTAP::Constants::ASSMINUS, UTAP::Constants::ASSMOD, UTAP::Constants::ASSMULT, UTAP::Constants::ASSOR, UTAP::Constants::ASSPLUS, UTAP::Constants::ASSRSHIFT, UTAP::Constants::ASSXOR, UTAP::Constants::BIT_AND, UTAP::Constants::BIT_LSHIFT, UTAP::Constants::BIT_OR, UTAP::Constants::BIT_RSHIFT, UTAP::Constants::BIT_XOR, chanString, checkParams(), UTAP::Constants::COMMA, UTAP::Constants::CONSTANT, cTA, UTAP::Constants::DIV, UTAP::Constants::DOT, UTAP::expression_t::empty(), UTAP::Constants::EQ, UTAP::Constants::EXISTS, UTAP::Constants::FORALL, UTAP::Constants::FRACTION, UTAP::Constants::FUNCALL, UTAP::Constants::FUNCTION, UTAP::Constants::GE, UTAP::symbol_t::getData(), UTAP::symbol_t::getFrame(), UTAP::BlockStatement::getFrame(), UTAP::expression_t::getKind(), UTAP::type_t::getKind(), UTAP::symbol_t::getName(), UTAP::expression_t::getSize(), UTAP::expression_t::getSymbol(), UTAP::expression_t::getSync(), UTAP::expression_t::getType(), UTAP::symbol_t::getType(), UTAP::expression_t::getValue(), UTAP::Constants::GT, UTAP::frame_t::hasParent(), UTAP::Constants::IDENTIFIER, UTAP::SignalFlow::proc_t::inChans, UTAP::Constants::INLINEIF, inp, UTAP::type_t::is(), UTAP::Constants::LE, UTAP::Constants::LIST, UTAP::Constants::LT, UTAP::Constants::MAX, UTAP::Constants::MIN, UTAP::Constants::MINUS, UTAP::Constants::MOD, UTAP::Constants::MULT, UTAP::Constants::NEQ, UTAP::Constants::NOT, UTAP::Constants::OR, out, UTAP::SignalFlow::proc_t::outChans, UTAP::Constants::PLUS, popIO(), UTAP::Constants::POSTDECREMENT, UTAP::Constants::POSTINCREMENT, UTAP::Constants::PREDECREMENT, UTAP::Constants::PREINCREMENT, pushIO(), UTAP::Constants::RATE, UTAP::SignalFlow::proc_t::rdVars, receivers, UTAP::Constants::REF, refparams, UTAP::Constants::SUM, sync, UTAP::Constants::SYNC, UTAP::Constants::SYNC_BANG, UTAP::Constants::SYNC_CSP, UTAP::Constants::SYNC_QUE, transmitters, UTAP::Constants::UNARY_MINUS, valparams, and UTAP::SignalFlow::proc_t::wtVars.

Referenced by checkParams(), visitCaseStatement(), visitDoWhileStatement(), visitExprStatement(), visitForStatement(), visitIfStatement(), visitProcess(), visitReturnStatement(), visitSwitchStatement(), and visitWhileStatement().

Here is the call graph for this function:

Here is the caller graph for this function:

visitExprStatement()

int32_t SignalFlow::visitExprStatement ( ExprStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 696 of file signalflow.cpp.

References UTAP::ExprStatement::expr, and visitExpression().

Referenced by setVerbose().

Here is the call graph for this function:

Here is the caller graph for this function:

visitForStatement()

int32_t SignalFlow::visitForStatement ( ForStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 708 of file signalflow.cpp.

References UTAP::Statement::accept(), UTAP::ForStatement::cond, UTAP::ForStatement::init, UTAP::ForStatement::stat, UTAP::ForStatement::step, and visitExpression().

Referenced by setVerbose().

Here is the call graph for this function:

Here is the caller graph for this function:

visitIfStatement()

int32_t SignalFlow::visitIfStatement ( IfStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 758 of file signalflow.cpp.

References UTAP::Statement::accept(), UTAP::IfStatement::cond, UTAP::IfStatement::falseCase, UTAP::IfStatement::trueCase, and visitExpression().

Referenced by setVerbose().

Here is the call graph for this function:

Here is the caller graph for this function:

visitIterationStatement()

int32_t SignalFlow::visitIterationStatement ( IterationStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 702 of file signalflow.cpp.

References UTAP::Statement::accept(), and UTAP::IterationStatement::stat.

Referenced by setVerbose().

Here is the call graph for this function:

Here is the caller graph for this function:

visitProcess()

void SignalFlow::visitProcess ( instance_t &  p )

protected

Definition at line 420 of file signalflow.cpp.

References cChan, cP, cTA, UTAP::template_t::edges, UTAP::symbol_t::getName(), noChan, processes, procs, UTAP::template_t::states, UTAP::instance_t::templ, UTAP::instance_t::uid, and visitExpression().

Referenced by SignalFlow().

Here is the call graph for this function:

Here is the caller graph for this function:

visitReturnStatement()

int32_t SignalFlow::visitReturnStatement ( ReturnStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 783 of file signalflow.cpp.

References UTAP::ReturnStatement::value, and visitExpression().

Referenced by setVerbose().

Here is the call graph for this function:

Here is the caller graph for this function:

visitSwitchStatement()

int32_t SignalFlow::visitSwitchStatement ( SwitchStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 741 of file signalflow.cpp.

References UTAP::SwitchStatement::cond, visitBlockStatement(), and visitExpression().

Referenced by setVerbose().

Here is the call graph for this function:

Here is the caller graph for this function:

visitWhileStatement()

int32_t SignalFlow::visitWhileStatement ( WhileStatement *  stat )

overridevirtual

Implements UTAP::StatementVisitor.

Definition at line 716 of file signalflow.cpp.

References UTAP::Statement::accept(), UTAP::WhileStatement::cond, UTAP::WhileStatement::stat, and visitExpression().

Referenced by setVerbose().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

cChan

const char* UTAP::SignalFlow::cChan

protected

Definition at line 88 of file signalflow.h.

Referenced by addChan(), addVar(), and visitProcess().

channels

strs_t UTAP::SignalFlow::channels

protected

Definition at line 85 of file signalflow.h.

Referenced by addChan(), printChansSeparateForDot(), printForDot(), UTAP::Partitioner::printForDot(), and ~SignalFlow().

chanString

std::string UTAP::SignalFlow::chanString

protected

Definition at line 89 of file signalflow.h.

Referenced by visitExpression().

cP

instance_t* UTAP::SignalFlow::cP

protected

Definition at line 87 of file signalflow.h.

Referenced by checkParams(), and visitProcess().

cTA

proc_t* UTAP::SignalFlow::cTA

protected

Definition at line 86 of file signalflow.h.

Referenced by addChan(), addVar(), visitExpression(), and visitProcess().

inp

bool UTAP::SignalFlow::inp

protected

Definition at line 90 of file signalflow.h.

Referenced by visitExpression().

ioStack

std::stack<std::pair<bool, bool> > UTAP::SignalFlow::ioStack

protected

Definition at line 91 of file signalflow.h.

out

bool UTAP::SignalFlow::out

protected

Definition at line 90 of file signalflow.h.

Referenced by set_remove(), and visitExpression().

paramsExpanded

bool UTAP::SignalFlow::paramsExpanded

protected

Definition at line 90 of file signalflow.h.

Referenced by checkParams().

processes

strs_t UTAP::SignalFlow::processes

protected

Definition at line 85 of file signalflow.h.

Referenced by UTAP::DistanceCalculator::addProcessNeedle(), UTAP::Partitioner::printForDot(), and visitProcess().

procs

procs_t UTAP::SignalFlow::procs

protected

Definition at line 83 of file signalflow.h.

Referenced by UTAP::DistanceCalculator::addProcessNeedle(), UTAP::Partitioner::partition(), UTAP::Partitioner::Partitioner(), printChansOnEdgesForDot(), printChansSeparateForDot(), printForDot(), UTAP::Partitioner::printForDot(), printForTron(), printProcsForDot(), UTAP::DistanceCalculator::printProcsForDot(), printVarsReadForDot(), printVarsWriteForDot(), visitProcess(), and ~SignalFlow().

receivers

str2procs_t UTAP::SignalFlow::receivers

protected

Definition at line 84 of file signalflow.h.

Referenced by UTAP::Partitioner::addProcsByVars(), UTAP::Partitioner::partition(), printChansOnEdgesForDot(), UTAP::Partitioner::printForDot(), and visitExpression().

refparams

std::stack<exprref_t> UTAP::SignalFlow::refparams

protected

Definition at line 92 of file signalflow.h.

Referenced by visitExpression().

sync

bool UTAP::SignalFlow::sync

protected

Definition at line 90 of file signalflow.h.

Referenced by visitExpression().

title

const char* UTAP::SignalFlow::title

protected

Definition at line 82 of file signalflow.h.

Referenced by printForDot(), and UTAP::Partitioner::printForDot().

transmitters

str2procs_t UTAP::SignalFlow::transmitters

protected

Definition at line 84 of file signalflow.h.

Referenced by UTAP::DistanceCalculator::addProcessNeedle(), UTAP::Partitioner::addProcsByVars(), UTAP::Partitioner::partition(), printChansOnEdgesForDot(), UTAP::Partitioner::printForDot(), printVarsForDot(), UTAP::DistanceCalculator::printVarsForDot(), and visitExpression().

valparams

std::stack<exprref_t> UTAP::SignalFlow::valparams

protected

Definition at line 93 of file signalflow.h.

Referenced by visitExpression().

variables

strs_t UTAP::SignalFlow::variables

protected

Definition at line 85 of file signalflow.h.

Referenced by addVar(), UTAP::DistanceCalculator::addVariableNeedle(), printForDot(), UTAP::Partitioner::printForDot(), printVarsForDot(), and UTAP::DistanceCalculator::printVarsForDot().

verbosity

int UTAP::SignalFlow::verbosity

protected

Definition at line 81 of file signalflow.h.

Referenced by UTAP::Partitioner::addIntChans(), UTAP::Partitioner::addIntVars(), UTAP::Partitioner::addProcs(), UTAP::Partitioner::addProcsByVars(), UTAP::Partitioner::partition(), and UTAP::Partitioner::printViolation().

---

The documentation for this class was generated from the following files:

• signalflow.h
• signalflow.cpp
