DistanceCalculator is used in TargetFirst heuristic search order of Uppaal. More...

#include <signalflow.h>

Inheritance diagram for UTAP::DistanceCalculator:

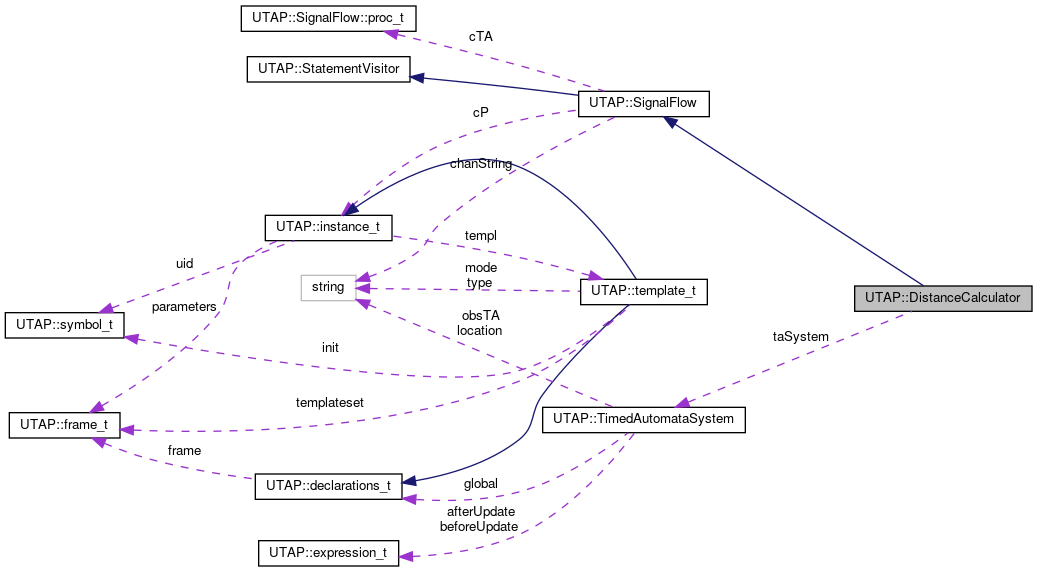

Collaboration diagram for UTAP::DistanceCalculator:

[legend]

Public Member Functions
	DistanceCalculator (const char *_title, TimedAutomataSystem &ta)

virtual	~DistanceCalculator ()

void	addVariableNeedle (const char *var)
	adds a variable needle to I/O map More...

void	addProcessNeedle (const char *proc)
	adds a variable needle to I/O map More...

void	updateDistances ()
	Recalculates the distances to needles. More...

uint32_t	getDistance (const char *element)
	Finds a distance measure for given element. More...

void	printForDot (std::ostream &os, bool ranked, bool erd, bool cEdged) override
	Print I/O information in DOT format into given output stream. More...

Public Member Functions inherited from UTAP::SignalFlow
	SignalFlow (const char *_title, TimedAutomataSystem &ta)
	Analyse the system and extract I/O information: More...

void	setVerbose (int verbose)

virtual	~SignalFlow ()
	All strings are from TASystem (don't dispose TASystem before SignalFlow). More...

void	printForTron (std::ostream &os)
	Print I/O information in TRON format into given output stream. More...

int32_t	visitEmptyStatement (EmptyStatement *stat) override
	System visitor pattern extracts read/write information from UCode. More...

int32_t	visitExprStatement (ExprStatement *stat) override

int32_t	visitForStatement (ForStatement *stat) override

int32_t	visitIterationStatement (IterationStatement *stat) override

int32_t	visitWhileStatement (WhileStatement *stat) override

int32_t	visitDoWhileStatement (DoWhileStatement *stat) override

int32_t	visitBlockStatement (BlockStatement *stat) override

int32_t	visitSwitchStatement (SwitchStatement *stat) override

int32_t	visitCaseStatement (CaseStatement *stat) override

int32_t	visitDefaultStatement (DefaultStatement *stat) override

int32_t	visitIfStatement (IfStatement *stat) override

int32_t	visitBreakStatement (BreakStatement *stat) override

int32_t	visitContinueStatement (ContinueStatement *stat) override

int32_t	visitReturnStatement (ReturnStatement *stat) override

int32_t	visitAssertStatement (UTAP::AssertStatement *stat) override

Public Member Functions inherited from UTAP::StatementVisitor
virtual	~StatementVisitor ()

Protected Member Functions
void	printProcsForDot (std::ostream &os, bool erd) override

void	printVarsForDot (std::ostream &os, bool ranked, bool erd) override

Protected Member Functions inherited from UTAP::SignalFlow
bool	checkParams (const symbol_t &s)

void	addChan (const std::string &, strs_t &, str2procs_t &)

void	addVar (const symbol_t &, str2strs_t &, str2procs_t &)

void	visitProcess (instance_t &)

void	visitExpression (const expression_t &)

void	pushIO ()

void	popIO ()

virtual void	printVarsWriteForDot (std::ostream &os)

virtual void	printVarsReadForDot (std::ostream &os)

virtual void	printChansOnEdgesForDot (std::ostream &os)

virtual void	printChansSeparateForDot (std::ostream &os, bool ranked, bool erd)

Protected Attributes
TimedAutomataSystem &	taSystem

Protected Attributes inherited from UTAP::SignalFlow
int	verbosity

const char *	title

procs_t	procs

str2procs_t	receivers

str2procs_t	transmitters

strs_t	processes

strs_t	channels

strs_t	variables

proc_t *	cTA

instance_t *	cP

const char *	cChan

std::string	chanString

bool	inp

bool	out

bool	sync

bool	paramsExpanded

std::stack< std::pair< bool, bool > >	ioStack

std::stack< exprref_t >	refparams

std::stack< exprref_t >	valparams

Additional Inherited Members
Public Types inherited from UTAP::SignalFlow
typedef std::set< const char *, const less_str >	strs_t

typedef std::map< const proc_t *, strs_t >	proc2strs_t

typedef std::map< const char *, strs_t >	str2strs_t

typedef std::set< proc_t * >	procs_t

typedef std::map< const char *, procs_t, less_str >	str2procs_t

typedef std::map< const symbol_t, expression_t >	exprref_t

Detailed Description

DistanceCalculator is used in TargetFirst heuristic search order of Uppaal.

Current implementation calculates complexity distances from a process to the given set of "needles" (e.g. variables or process location mentioned in query). In the future this can be refined to take the process-local information into account (e.g. calculate distance for individual edges within the process rather than just process).

Definition at line 266 of file signalflow.h.

Constructor & Destructor Documentation

◆ DistanceCalculator()

UTAP::DistanceCalculator::DistanceCalculator	(	const char *	_title,
		TimedAutomataSystem &	ta
	)

inline

Definition at line 299 of file signalflow.h.

References UTAP::SignalFlow::printForDot().

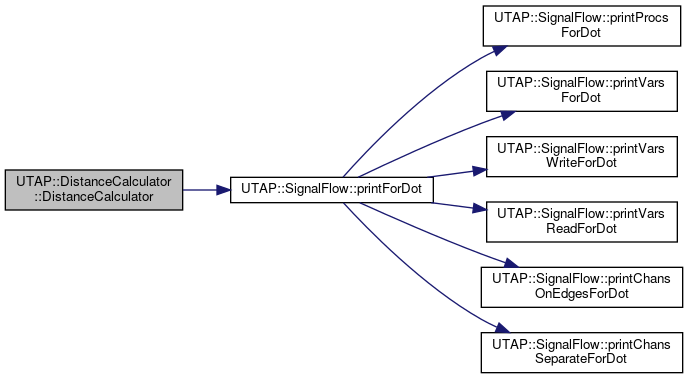

Here is the call graph for this function:

◆ ~DistanceCalculator()

DistanceCalculator::~DistanceCalculator ( )

virtual

Definition at line 1761 of file signalflow.cpp.

Member Function Documentation

◆ addProcessNeedle()

void DistanceCalculator::addProcessNeedle ( const char * proc )

adds a variable needle to I/O map

Definition at line 1553 of file signalflow.cpp.

References UTAP::template_t::edges, UTAP::SignalFlow::processes, UTAP::SignalFlow::procs, UTAP::instance_t::templ, and UTAP::SignalFlow::transmitters.

Referenced by main().

Here is the caller graph for this function:

◆ addVariableNeedle()

void DistanceCalculator::addVariableNeedle ( const char * var )

adds a variable needle to I/O map

Definition at line 1520 of file signalflow.cpp.

References UTAP::SignalFlow::variables.

◆ getDistance()

uint32_t DistanceCalculator::getDistance ( const char * element )

Finds a distance measure for given element.

Definition at line 1772 of file signalflow.cpp.

◆ printForDot()

void DistanceCalculator::printForDot	(	std::ostream &	os,
		bool	ranked,
		bool	erd,
		bool	cEdged
	)

overridevirtual

Print I/O information in DOT format into given output stream.

ranked – puts oposite "ranks" on variables and channels erd – puts boxes and diamonds rather than (compact) ellipses. cEdged – channels are printed on edges rather than separate nodes.

Reimplemented from UTAP::SignalFlow.

Definition at line 1784 of file signalflow.cpp.

References UTAP::SignalFlow::printForDot().

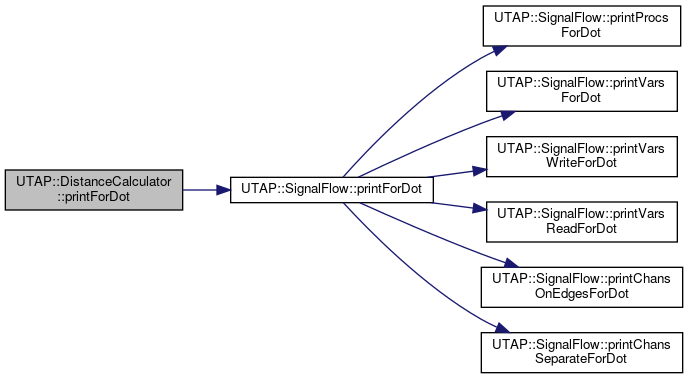

Here is the call graph for this function:

◆ printProcsForDot()

void DistanceCalculator::printProcsForDot	(	std::ostream &	os,
		bool	erd
	)

overrideprotectedvirtual

Reimplemented from UTAP::SignalFlow.

Definition at line 1699 of file signalflow.cpp.

References UTAP::SignalFlow::procs.

◆ printVarsForDot()

void DistanceCalculator::printVarsForDot	(	std::ostream &	os,
		bool	ranked,
		bool	erd
	)

overrideprotectedvirtual

Reimplemented from UTAP::SignalFlow.

Definition at line 1726 of file signalflow.cpp.

References UTAP::SignalFlow::transmitters, and UTAP::SignalFlow::variables.

◆ updateDistances()

void DistanceCalculator::updateDistances ( )

Recalculates the distances to needles.

Definition at line 1792 of file signalflow.cpp.

Member Data Documentation

◆ taSystem

TimedAutomataSystem& UTAP::DistanceCalculator::taSystem

protected

Definition at line 292 of file signalflow.h.

The documentation for this class was generated from the following files:
