#include <xmlwriter.h>

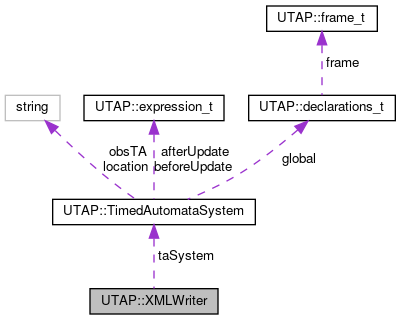

Collaboration diagram for UTAP::XMLWriter:

[legend]

Public Member Functions
void	startDocument ()

void	endDocument ()

void	startElement (const char *element)

void	endElement ()

void	writeElement (const char name, const char content)

void	writeAttribute (const char name, const char value)

void	writeString (const char *content)

void	xmlwriteString (const xmlChar *content)

void	taTempl (const template_t &templ)
	writes a template More...

void	location (const state_t &state)

void	init (const template_t &templ)

void	name (const state_t &state, int x, int y)

void	writeStateAttributes (const state_t &state, int x, int y)

void	transition (const edge_t &edge)

void	nail (int x, int y)

void	label (const char *kind, std::string data, int x, int y)

int	source (const edge_t &edge)

int	target (const edge_t &edge)

void	selfLoop (int loc, float initialAngle, const edge_t &edge)

void	labels (int x, int y, const edge_t &edge)

void	declaration ()
	Parses optional declaration. More...

std::string	getChanPriority () const

void	parameter ()

void	system_instantiation ()

	XMLWriter (xmlTextWriterPtr writer, TimedAutomataSystem *taSystem)

virtual	~XMLWriter ()

void	project ()
	Parse the project document. More...

Public Attributes
xmlTextWriterPtr	writer
	The underlying xmlTextWriter. More...

TimedAutomataSystem *	taSystem
	The system to write. More...

std::map< int, int >	selfLoops

Detailed Description

Definition at line 54 of file xmlwriter.h.

Constructor & Destructor Documentation

◆ XMLWriter()

XMLWriter::XMLWriter	(	xmlTextWriterPtr	writer,
		TimedAutomataSystem *	taSystem
	)

Definition at line 51 of file xmlwriter.cpp.

Referenced by writeXMLFile().

Here is the caller graph for this function:

◆ ~XMLWriter()

XMLWriter::~XMLWriter ( )

virtual

Definition at line 55 of file xmlwriter.cpp.

References writer.

Member Function Documentation

◆ declaration()

void XMLWriter::declaration ( )

Parses optional declaration.

Definition at line 108 of file xmlwriter.cpp.

References getChanPriority(), UTAP::TimedAutomataSystem::getGlobals(), taSystem, UTAP::declarations_t::toString(), and writeElement().

Referenced by project().

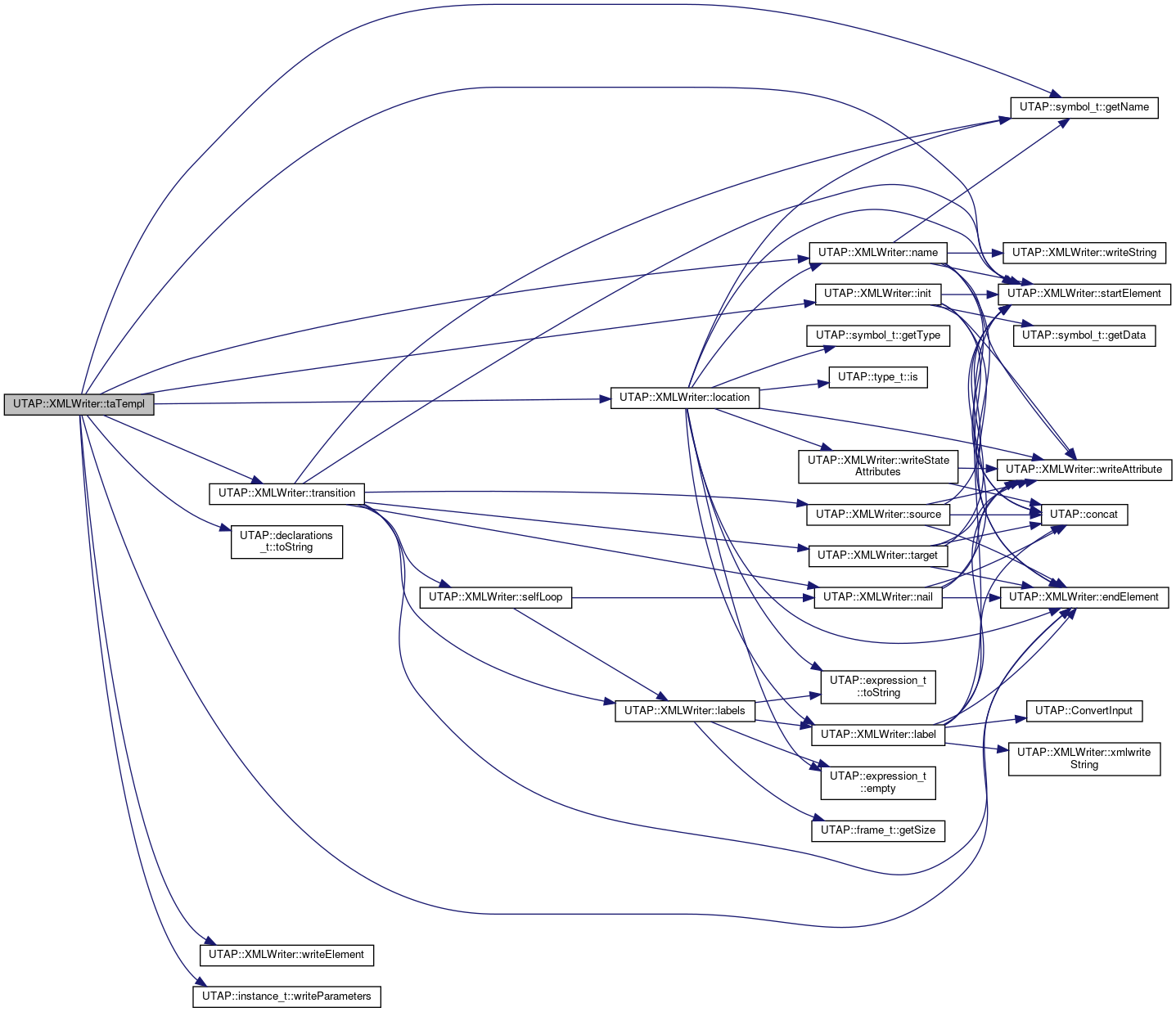

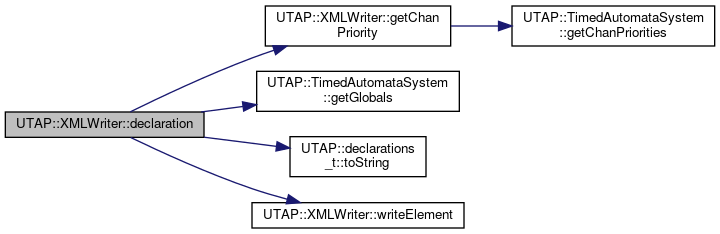

Here is the call graph for this function:

Here is the caller graph for this function:

◆ endDocument()

void XMLWriter::endDocument ( )

Definition at line 368 of file xmlwriter.cpp.

References writer.

Referenced by project().

Here is the caller graph for this function:

◆ endElement()

void XMLWriter::endElement ( )

Definition at line 69 of file xmlwriter.cpp.

References writer.

Referenced by init(), label(), location(), nail(), name(), project(), source(), target(), taTempl(), and transition().

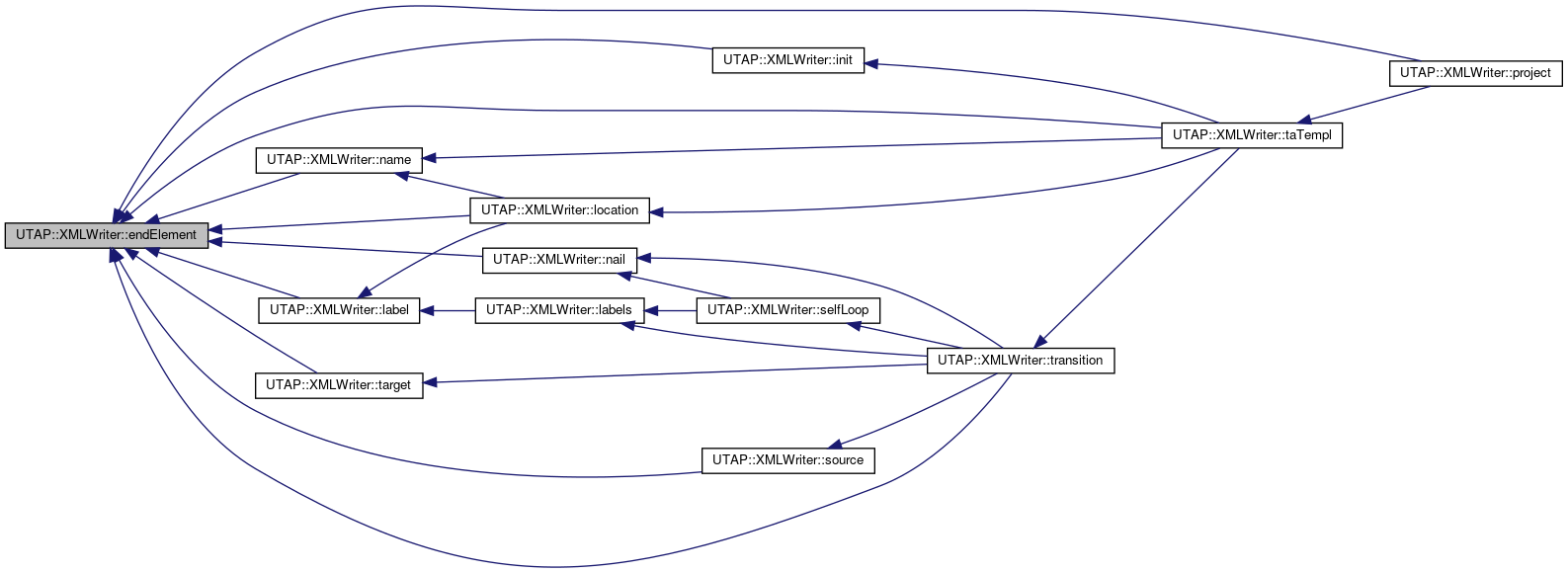

Here is the caller graph for this function:

◆ getChanPriority()

string XMLWriter::getChanPriority ( ) const

Definition at line 116 of file xmlwriter.cpp.

References UTAP::TimedAutomataSystem::getChanPriorities(), and taSystem.

Referenced by declaration().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ init()

void XMLWriter::init ( const template_t & templ )

Definition at line 197 of file xmlwriter.cpp.

References UTAP::concat(), endElement(), UTAP::symbol_t::getData(), UTAP::template_t::init, startElement(), and writeAttribute().

Referenced by taTempl().

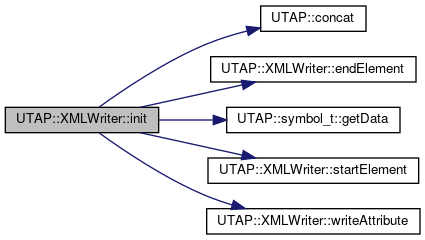

Here is the call graph for this function:

Here is the caller graph for this function:

◆ label()

void XMLWriter::label	(	const char *	kind,
		std::string	data,
		int	x,
		int	y
	)

Definition at line 132 of file xmlwriter.cpp.

References UTAP::concat(), UTAP::ConvertInput(), endElement(), MY_ENCODING, startElement(), writeAttribute(), and xmlwriteString().

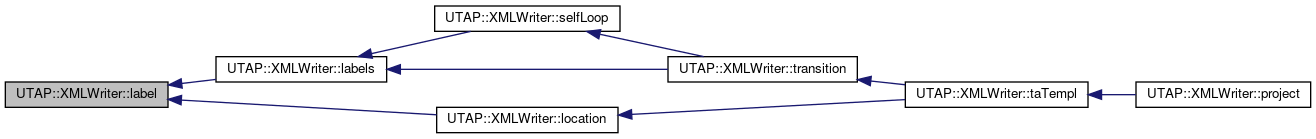

Referenced by labels(), and location().

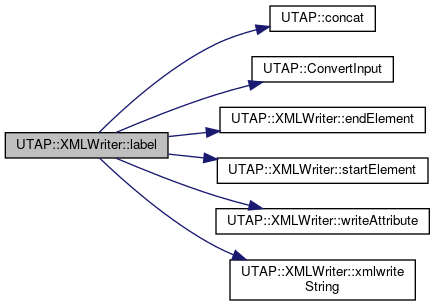

Here is the call graph for this function:

Here is the caller graph for this function:

◆ labels()

void XMLWriter::labels	(	int	x,
		int	y,
		const edge_t &	edge
	)

Definition at line 267 of file xmlwriter.cpp.

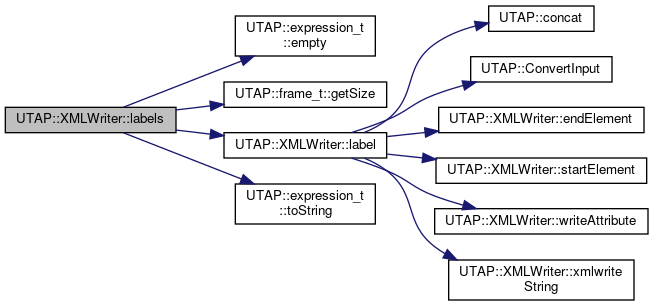

References UTAP::edge_t::assign, UTAP::expression_t::empty(), UTAP::frame_t::getSize(), UTAP::edge_t::guard, label(), UTAP::edge_t::select, UTAP::edge_t::sync, and UTAP::expression_t::toString().

Referenced by selfLoop(), and transition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ location()

void XMLWriter::location ( const state_t & state )

Definition at line 169 of file xmlwriter.cpp.

References UTAP::Constants::COMMITTED, UTAP::expression_t::empty(), endElement(), UTAP::symbol_t::getName(), UTAP::symbol_t::getType(), UTAP::state_t::invariant, UTAP::type_t::is(), label(), UTAP::state_t::locNr, name(), PINK, startElement(), STEP, UTAP::expression_t::toString(), UTAP::state_t::uid, UTAP::Constants::URGENT, writeAttribute(), and writeStateAttributes().

Referenced by taTempl().

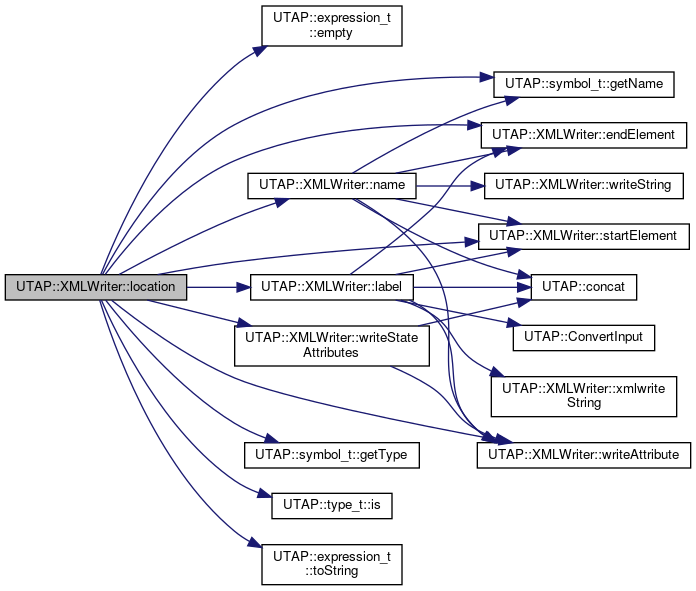

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nail()

void XMLWriter::nail	(	int	x,
		int	y
	)

Definition at line 241 of file xmlwriter.cpp.

References UTAP::concat(), endElement(), startElement(), and writeAttribute().

Referenced by selfLoop(), and transition().

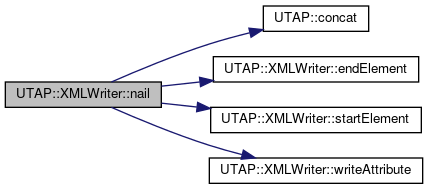

Here is the call graph for this function:

Here is the caller graph for this function:

◆ name()

void XMLWriter::name	(	const state_t &	state,
		int	x,
		int	y
	)

Definition at line 152 of file xmlwriter.cpp.

References UTAP::concat(), endElement(), UTAP::symbol_t::getName(), startElement(), UTAP::state_t::uid, writeAttribute(), and writeString().

Referenced by location(), and taTempl().

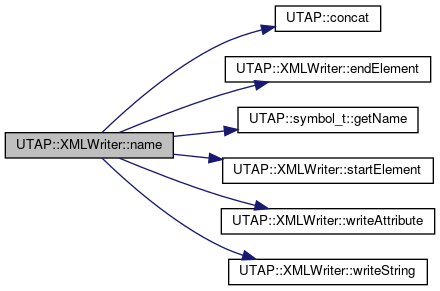

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parameter()

void UTAP::XMLWriter::parameter ( )

◆ project()

void XMLWriter::project ( )

Parse the project document.

Definition at line 338 of file xmlwriter.cpp.

References declaration(), endDocument(), endElement(), UTAP::TimedAutomataSystem::getTemplates(), startDocument(), startElement(), system_instantiation(), taSystem, and taTempl().

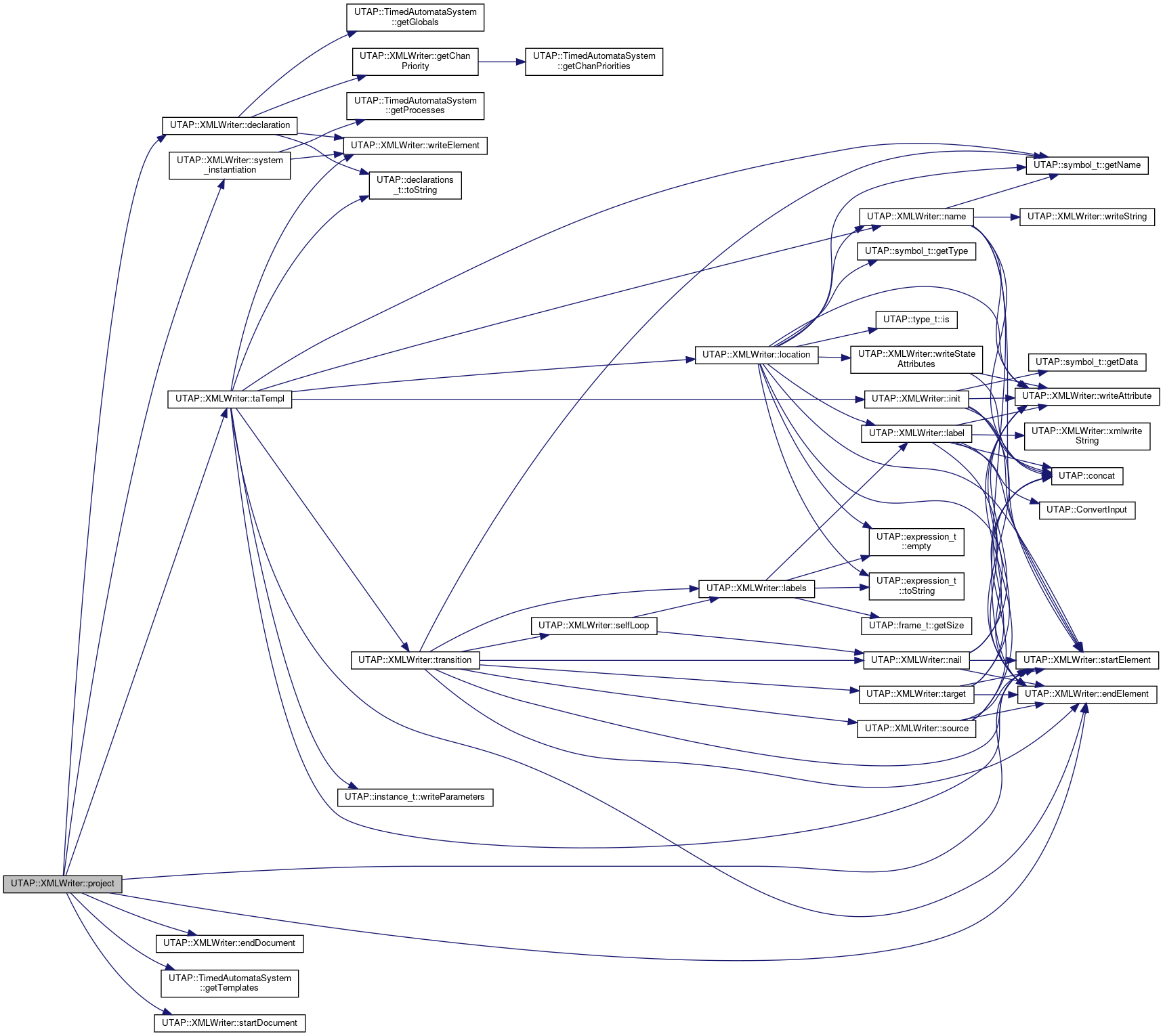

Here is the call graph for this function:

◆ selfLoop()

void XMLWriter::selfLoop	(	int	loc,
		float	initialAngle,
		const edge_t &	edge
	)

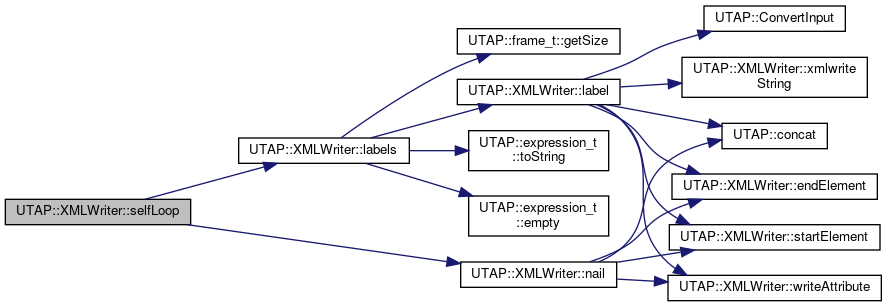

Definition at line 224 of file xmlwriter.cpp.

References labels(), nail(), PI, RADIUS, selfLoops, and STEP.

Referenced by transition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ source()

int XMLWriter::source ( const edge_t & edge )

Definition at line 205 of file xmlwriter.cpp.

References UTAP::concat(), endElement(), UTAP::state_t::locNr, UTAP::edge_t::src, startElement(), and writeAttribute().

Referenced by transition().

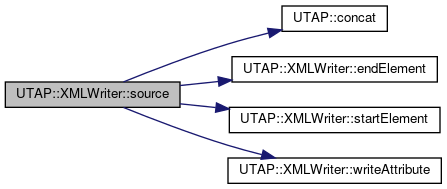

Here is the call graph for this function:

Here is the caller graph for this function:

◆ startDocument()

void XMLWriter::startDocument ( )

Definition at line 353 of file xmlwriter.cpp.

References MY_ENCODING, and writer.

Referenced by project().

Here is the caller graph for this function:

◆ startElement()

void XMLWriter::startElement ( const char * element )

Definition at line 62 of file xmlwriter.cpp.

References writer.

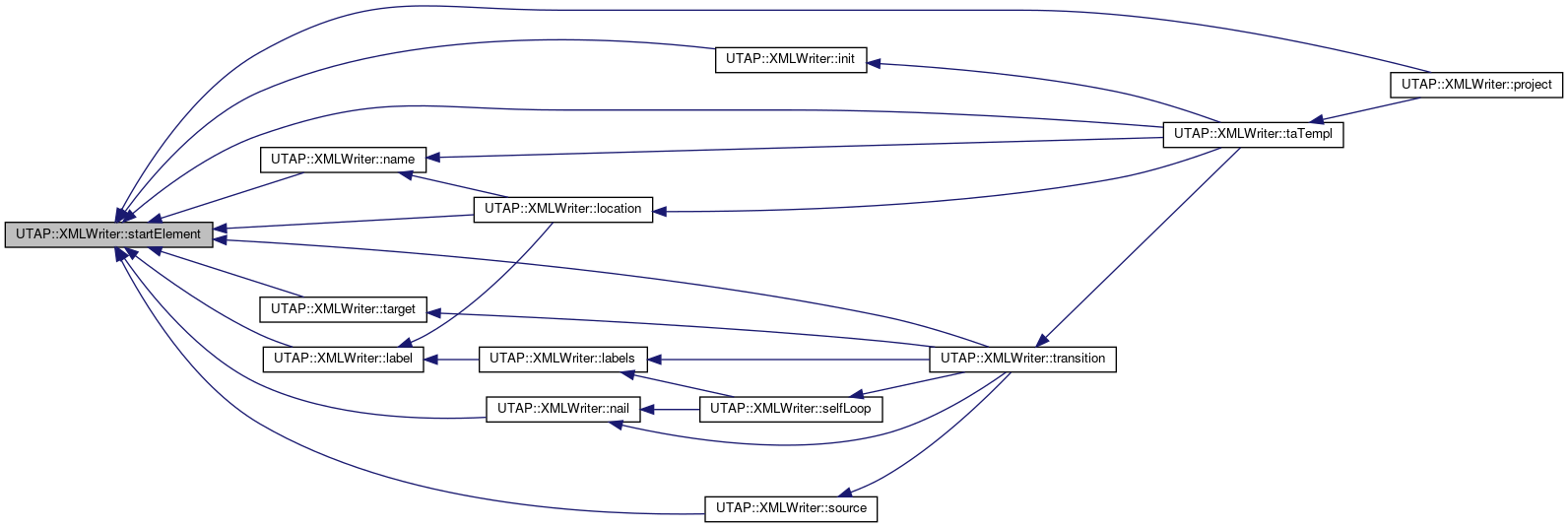

Referenced by init(), label(), location(), nail(), name(), project(), source(), target(), taTempl(), and transition().

Here is the caller graph for this function:

◆ system_instantiation()

void XMLWriter::system_instantiation ( )

Definition at line 319 of file xmlwriter.cpp.

References UTAP::TimedAutomataSystem::getProcesses(), taSystem, and writeElement().

Referenced by project().

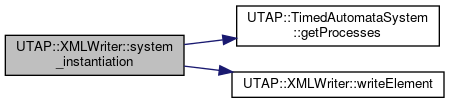

Here is the call graph for this function:

Here is the caller graph for this function:

◆ target()

int XMLWriter::target ( const edge_t & edge )

Definition at line 215 of file xmlwriter.cpp.

References UTAP::concat(), UTAP::edge_t::dst, endElement(), UTAP::state_t::locNr, startElement(), and writeAttribute().

Referenced by transition().

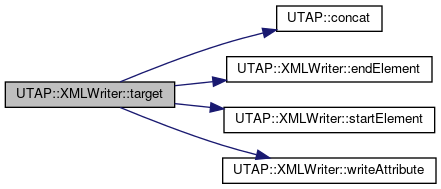

Here is the call graph for this function:

Here is the caller graph for this function:

◆ taTempl()

void XMLWriter::taTempl ( const template_t & templ )

writes a template

Definition at line 289 of file xmlwriter.cpp.

References UTAP::template_t::edges, endElement(), UTAP::symbol_t::getName(), init(), UTAP::template_t::isTA, location(), name(), selfLoops, startElement(), UTAP::template_t::states, UTAP::declarations_t::toString(), transition(), UTAP::instance_t::uid, writeElement(), and UTAP::instance_t::writeParameters().

Referenced by project().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transition()

void XMLWriter::transition ( const edge_t & edge )

Definition at line 249 of file xmlwriter.cpp.

References endElement(), UTAP::symbol_t::getName(), labels(), nail(), PI, selfLoop(), source(), UTAP::edge_t::src, startElement(), STEP, target(), and UTAP::state_t::uid.

Referenced by taTempl().

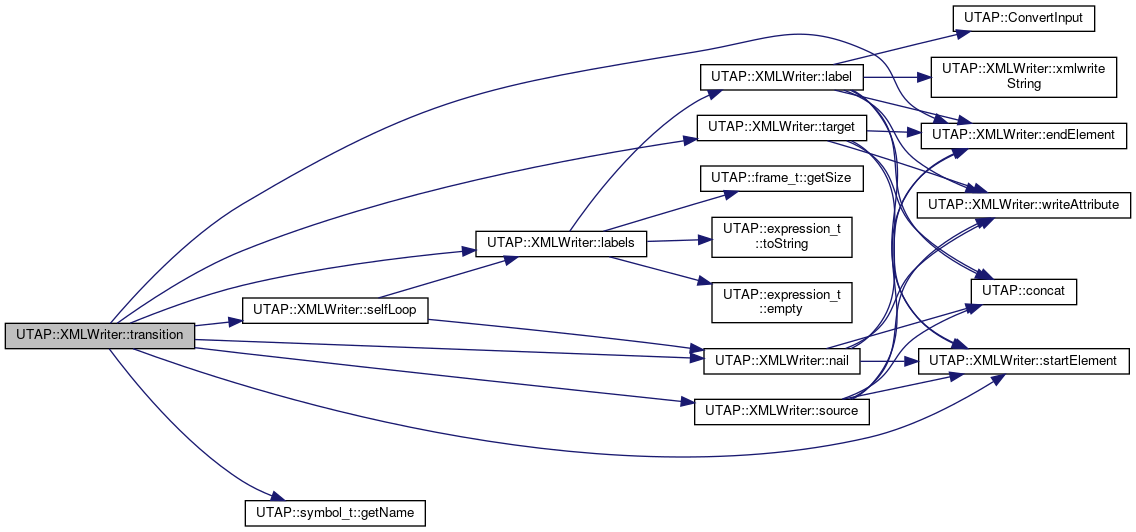

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeAttribute()

void XMLWriter::writeAttribute	(	const char *	name,
		const char *	value
	)

Definition at line 100 of file xmlwriter.cpp.

References writer.

Referenced by init(), label(), location(), nail(), name(), source(), target(), and writeStateAttributes().

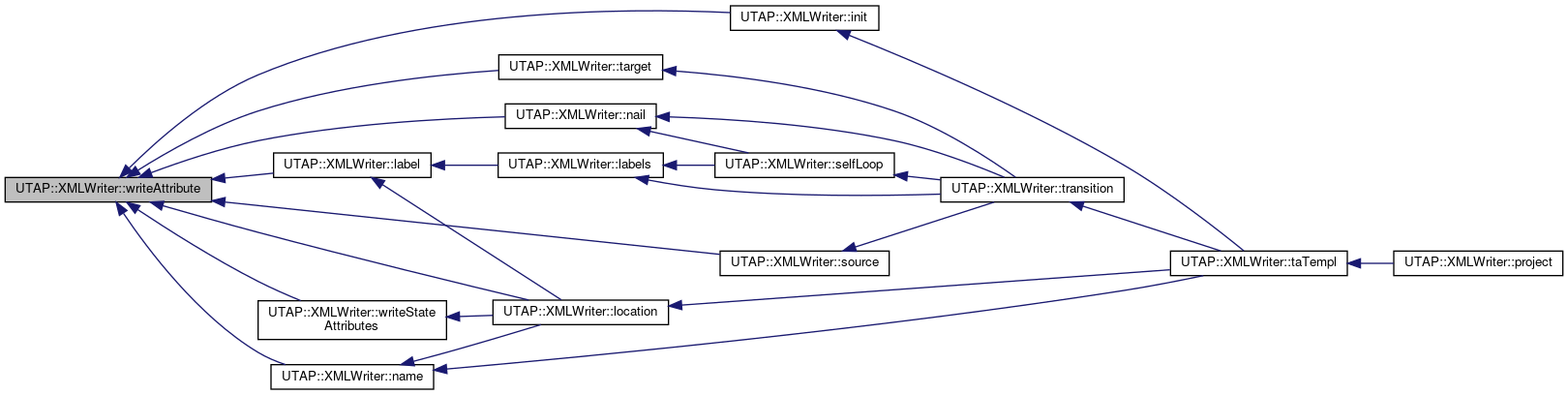

Here is the caller graph for this function:

◆ writeElement()

void XMLWriter::writeElement	(	const char *	name,
		const char *	content
	)

Definition at line 77 of file xmlwriter.cpp.

References writer.

Referenced by declaration(), system_instantiation(), and taTempl().

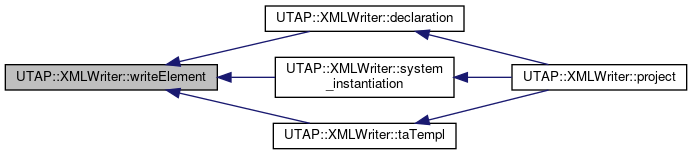

Here is the caller graph for this function:

◆ writeStateAttributes()

void XMLWriter::writeStateAttributes	(	const state_t &	state,
		int	x,
		int	y
	)

Definition at line 161 of file xmlwriter.cpp.

References UTAP::concat(), UTAP::state_t::locNr, and writeAttribute().

Referenced by location().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeString()

void XMLWriter::writeString ( const char * content )

Definition at line 85 of file xmlwriter.cpp.

References writer.

Referenced by name().

Here is the caller graph for this function:

◆ xmlwriteString()

void XMLWriter::xmlwriteString ( const xmlChar * content )

Definition at line 92 of file xmlwriter.cpp.

References writer.

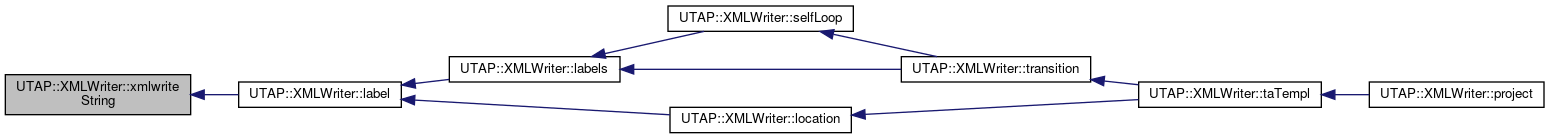

Referenced by label().

Here is the caller graph for this function:

Member Data Documentation

◆ selfLoops

std::map<int, int> UTAP::XMLWriter::selfLoops

Definition at line 59 of file xmlwriter.h.

Referenced by selfLoop(), and taTempl().

◆ taSystem

TimedAutomataSystem* UTAP::XMLWriter::taSystem

The system to write.

Definition at line 58 of file xmlwriter.h.

Referenced by declaration(), getChanPriority(), project(), and system_instantiation().

◆ writer

xmlTextWriterPtr UTAP::XMLWriter::writer

The underlying xmlTextWriter.

Definition at line 57 of file xmlwriter.h.

Referenced by endDocument(), endElement(), startDocument(), startElement(), writeAttribute(), writeElement(), writeString(), writeXMLFile(), xmlwriteString(), and ~XMLWriter().
