signalflow.cpp File Reference

#include "utap/signalflow.h"
#include "utap/common.h"
#include <iostream>
#include <sstream>
#include <string>
#include <iterator>
#include <algorithm>
#include <functional>
#include <cassert>

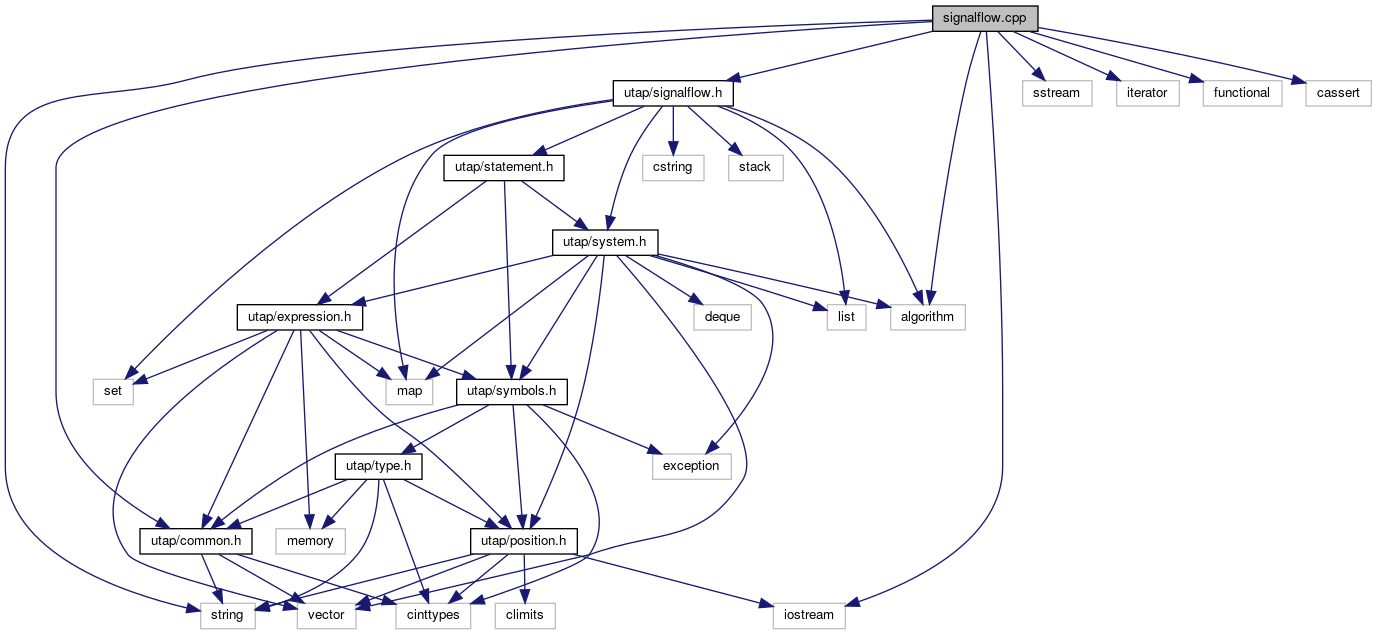

Include dependency graph for signalflow.cpp:

Go to the source code of this file.

Macros
#define	BADSTYLE   "style=filled,fillcolor=\"#FF8080\""
#define	IUTSTYLE   "style=filled,fillcolor=\"#B8C0FF\""
#define	ENVSTYLE   "style=filled,fillcolor=\"#C8FFC8\""
#define	MEDSTYLE   "style=filled,fillcolor=\"#C0C0C0\""

Functions
char *	get_token (istream &in)
void	set_remove (SignalFlow::strs_t &from, const SignalFlow::strs_t &what)

Variables
static const char *	noChan = "-"

Macro Definition Documentation

BADSTYLE

#define BADSTYLE   "style=filled,fillcolor=\"#FF8080\""

Definition at line 1187 of file signalflow.cpp.

Referenced by UTAP::Partitioner::printForDot().

ENVSTYLE

#define ENVSTYLE   "style=filled,fillcolor=\"#C8FFC8\""

Definition at line 1189 of file signalflow.cpp.

Referenced by UTAP::Partitioner::printForDot().

IUTSTYLE

#define IUTSTYLE   "style=filled,fillcolor=\"#B8C0FF\""

Definition at line 1188 of file signalflow.cpp.

Referenced by UTAP::Partitioner::printForDot().

MEDSTYLE

#define MEDSTYLE   "style=filled,fillcolor=\"#C0C0C0\""

Definition at line 1190 of file signalflow.cpp.

Referenced by UTAP::Partitioner::printForDot().

Function Documentation

get_token()

char* get_token

(

istream &

in

)

Definition at line 1019 of file signalflow.cpp.

References free(), and UTAP::Partitioner::partition().

Here is the call graph for this function:

set_remove()

void set_remove ( SignalFlow::strs_t &  from, const SignalFlow::strs_t &  what  )

inline

Definition at line 1192 of file signalflow.cpp.

References UTAP::SignalFlow::out.

Referenced by UTAP::Partitioner::printForDot().

Here is the caller graph for this function:

Variable Documentation

noChan

const char* noChan = "-"

static

Definition at line 418 of file signalflow.cpp.

Referenced by UTAP::SignalFlow::visitProcess().
